Product Overview

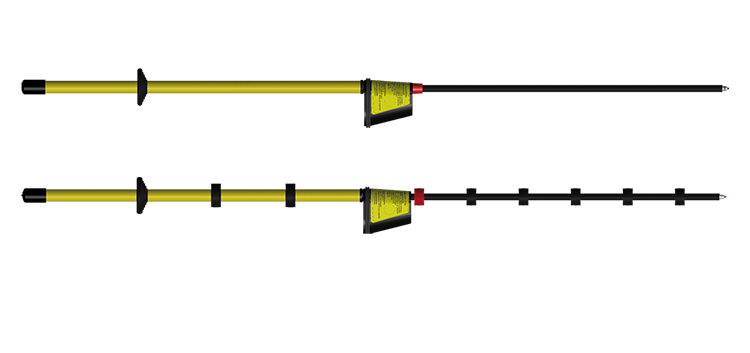

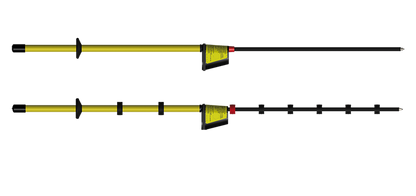

The Comet BL-A (Article No. 50-1003-012) from HORSTMANN is a single-pole, capacitive voltage indicator for the nominal voltage range of 6–10 kV. The device indicates the presence or absence of operating voltage via both optical and acoustic signaling and has an integrated self-test function that checks the circuit including the contact electrode.Function and Operation
- Indication: optical (1 red LED, 1 green LED) and acoustic (1 sounder) as specified for the BL-A variant.
- Integrated self-test for function control before use.
- Power supply: 2 lithium cells with a specified 6-year operational readiness under defined usage (10 readiness cycles/day and 230 working days/year).
Typical Applications
The Comet BL-A is used for the unambiguous determination of whether operating voltage is present or not present in the specified voltage range (6–10 kV). This includes control procedures where a visual and/or acoustic confirmation of the voltage status is necessary, as well as prior functional testing via the integrated self-test.Specifications
- Product: Comet BL-A (Article No. 50-1003-012).
- Manufacturer: HORSTMANN.
- Type: Single-pole, capacitive voltage indicator.
- Nominal voltage range: 6–10 kV.
- Indication: 1 red LED, 1 green LED, 1 sounder (optical and acoustic).
- Integrated self-test unit (circuit and contact electrode check).
- Total length: 1,420 mm.
- Insertion/immersion depth: 612 mm.
- Power supply: 2 lithium cells; specified 6-year readiness at 10 cycles/day and 230 working days/year.
- Application conditions: Designed for outdoor use in dry and rainy conditions (BL-A variant).
- Standard reference: IEC 61243-1 (VDE 0682-411) specified for the Comet series on the manufacturer's product page.
- Nominal frequency and operating temperature are specified by the manufacturer for the Comet series (e.g., 50 Hz, optional 60 Hz; operating temperature −25 °C to +70 °C) — see the manufacturer's product page for complete table information.
Sources
See manufacturer's product page
