Product Overview

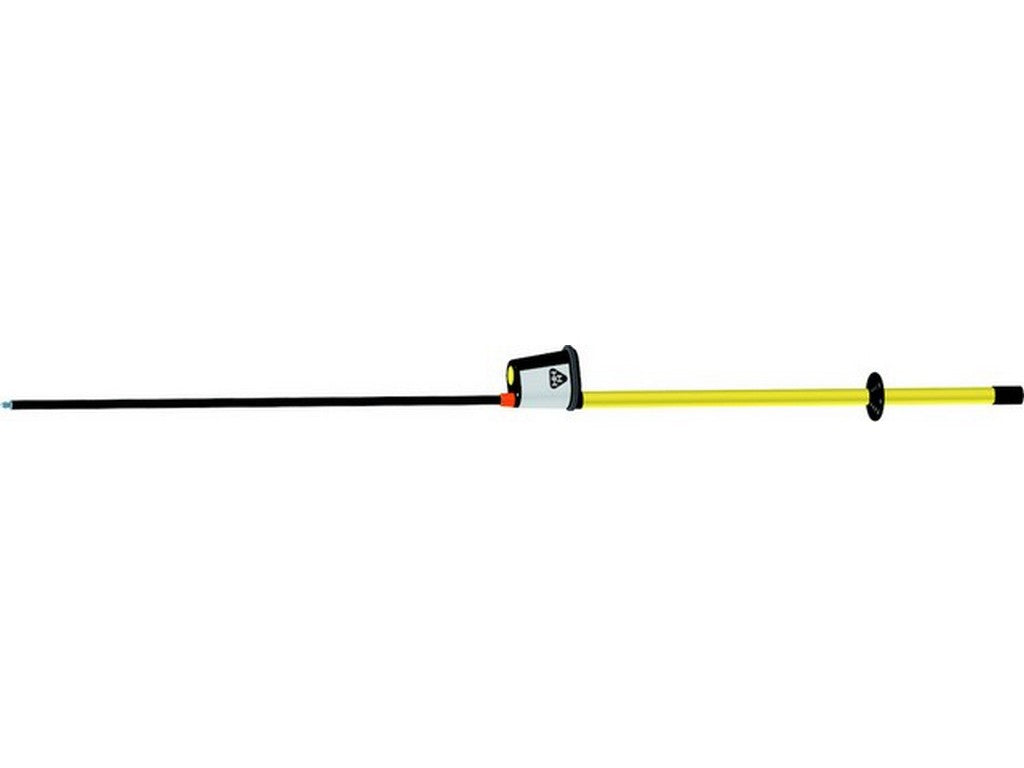

This Comet BS-I voltage detector from HORSTMANN is an indoor, shortened single-pole voltage detector with integrated self-test. The Comet BS-I (order no. 50-0923-001) features a three-position selector switch for three nominal voltage ranges and offers visual and acoustic indication for "voltage present" or "no voltage".
Functional Features
- Shortened single-pole voltage detector with built-in self-test.
- Select from three nominal voltage ranges: 5–10 kV, 10–20 kV, and 20–30 kV.
- Optical and acoustic indication: one red LED, one green LED, and buzzer (indoor model with optical and acoustic indication is order no. 50-0923-001).
- Power management via two lithium cells.
- Operating temperature range: -25 °C to +70 °C.
Typical Applications
The Comet BS-I is used to determine whether a conductor is live or not live. According to the manufacturer's product information, the Comet series is used in connection with maintenance, installation, or troubleshooting as a function to verify the presence of operating voltage before further work.
Documentation
Product data and technical information have been verified on Horstmann's product page and the manufacturer's official product text.
Specifications
- Product: Comet BS-I.
- Manufacturer: HORSTMANN.
- Manufacturer's Part Number: 50-0923-001 (indoor, optical + acoustic).
- Type: Indoor, shortened single-pole voltage detector with built-in self-test.
- Nominal Voltage Ranges (selectable): 5–10 kV, 10–20 kV, 20–30 kV.
- Indication: 1 red LED, 1 green LED and buzzer (optical and acoustic model).
- Power Supply: 2 lithium cells (stated operating time and standby cycles on manufacturer's page).
- Operating Temperature: -25 °C to +70 °C.
- Standard/Classification: IEC 61243-1 (VDE 0682-411), Category S.
- Maintenance: Maintenance tests every 6 years according to DGUV regulation 3.
- Total Length (for 5–30 kV model): 1,570 mm; immersion depth: 758 mm (cf. manufacturer's technical table).
- Source: Horstmann product page (manufacturer's official information).
