Product Overview

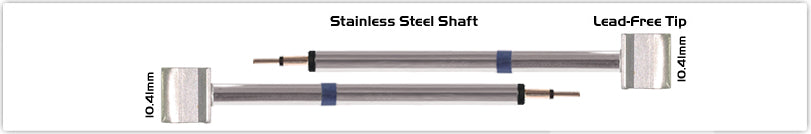

This tweezer cartridge, Thermaltronics K60TZ100, is a set of tweezer cartridges with a blade tip width of 10.41 mm (0.41") and a tip length of 9.00 mm (0.35"). The Thermaltronics K60TZ100 is a 60 Type cartridge specified for an operating temperature range of 325°C to 358°C. All components are RoHS compliant and lead-free.Technical Characteristics
- Type: 60 Type cartridge
- Tip style: Tweezers

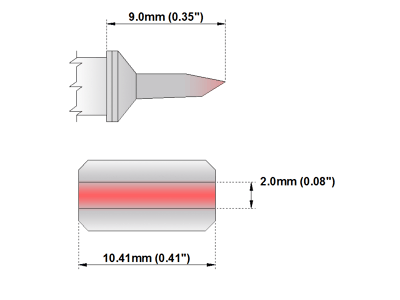

- Blade tip width: 10.41 mm (0.41")
- Tip length: 9.00 mm (0.35")
- Specified operating temperature range: 325°C - 358°C
- RoHS compliant / Lead-Free: Yes
Compatibility
- Designed for use with the SHP-KTZ tweezer handpiece
- Compatible with stations: TZ-KIT-3 and TMT-2000S series (e.g. TMT-2000PS, TMT-2000S-K, TMT-2000S-KM, TMT-2000S-P, TMT-2000S-PM, TMT-2000S-SM, TMT-2000S-TZ)
Documentation
Technical details and manufacturer information can be found in the manufacturer's datasheet.
View datasheet from manufacturer
Typical Applications
The Thermaltronics K60TZ100 is specified and described as a 60 Series tweezer cartridge designed for temperature-sensitive soldering applications. The product's specified operating temperature range and tweezer shape make it suitable for tasks where controlled temperature and tweezer tip geometry are required, as indicated in the manufacturer's documentation.
Specifications
- Product name: Thermaltronics K60TZ100
- Tip-style: Tweezers
- Tip width: 10.41 mm (0.41")
- Tip length: 9.00 mm (0.35")
- Type: 60 Type Cartridge
- Operating temperature range: 325°C - 358°C
- RoHS compliant / Lead-Free: Yes
- For use with: SHP-KTZ handpiece; compatible with TZ-KIT-3 and TMT-2000S series (specified models in manufacturer's datasheet)
Content generated by AI – subject to errors.
Contact HIN for further product information.
