Desktop Hipot safety analyser — S 6700H

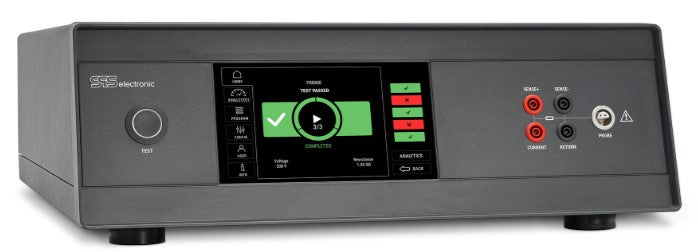

This desktop Hipot safety analyser S 6700H from SPS-ELECTR is designed for performing electrical safety tests. The device supports AC and DC high voltage tests, insulation measurements, ground bond tests, as well as resistance and continuity tests. The S 6700H features a 7" TFT touch screen and offers Ethernet and USB interfaces for communication and remote control.
Primary functions
- AC high voltage test: 100 V – 5,500 V, up to 20 mA.
- DC high voltage test: 100 V – 6,000 V, up to 20 mA.
- Insulation measurement: 100 V – 6,000 V, measuring range 100 kΩ – 50 GΩ.
- Ground bond test: 1 A – 32 A, measuring range 1 mΩ – 6 Ω.
- Resistance measurement: 1 Ω – 1 MΩ; continuity: <14 Ω (specified measuring range).
- Functional measurement: AC/DC voltage and current with measurements of active/reactive/apparent power up to 4,000 W/var/VA.
- Operation via 7" TFT touch display; Ethernet and USB connection to PC.
For further details and complete technical information, please refer to the manufacturer's datasheet:
See datasheet from the manufacturer
Typical applications
- Execution of AC high voltage tests (100 V–5,500 V) and DC high voltage tests (100 V–6,000 V) for safety assessment.
- Insulation measurements with a measuring range up to 50 GΩ at test voltages up to 6,000 V.
- Ground bond tests with test currents from 1 A to 32 A and measurements in the range 1 mΩ–6 Ω.
- Resistance and continuity tests within the specified measuring ranges, as well as functional measurements of AC/DC voltage, current, and power (up to 4,000 W/var/VA).
Specifications
- Product: S 6700H (Hipot Safety Analyser) — SPS-ELECTR.
- AC high voltage test: 100 V – 5,500 V, 0 mA – 20 mA.
- DC high voltage test: 100 V – 6,000 V, 0 mA – 20 mA, residual ripple <3% (specified for the device in the datasheet).
- Insulation measurement: 100 V – 6,000 V; measuring range 100 kΩ – 50 GΩ; residual ripple <3%.
- Ground bond test: 1 A – 32 A; measuring range 1 mΩ – 6 Ω; open circuit voltage 6 V (specified in datasheet).
- Resistance measurement: 1 Ω – 1 MΩ.
- Continuity: <14 Ω (specified measuring range).
- Functional measurement: current AC/DC 16 A / 10 A; voltage AC/DC 250 V / 200 V; power 0–4,000 W / 0–4,000 var / 0–4,000 VA; cos φ -1 to +1.
- Digital I/O: 24 VDC input/output (4 in/4 out).

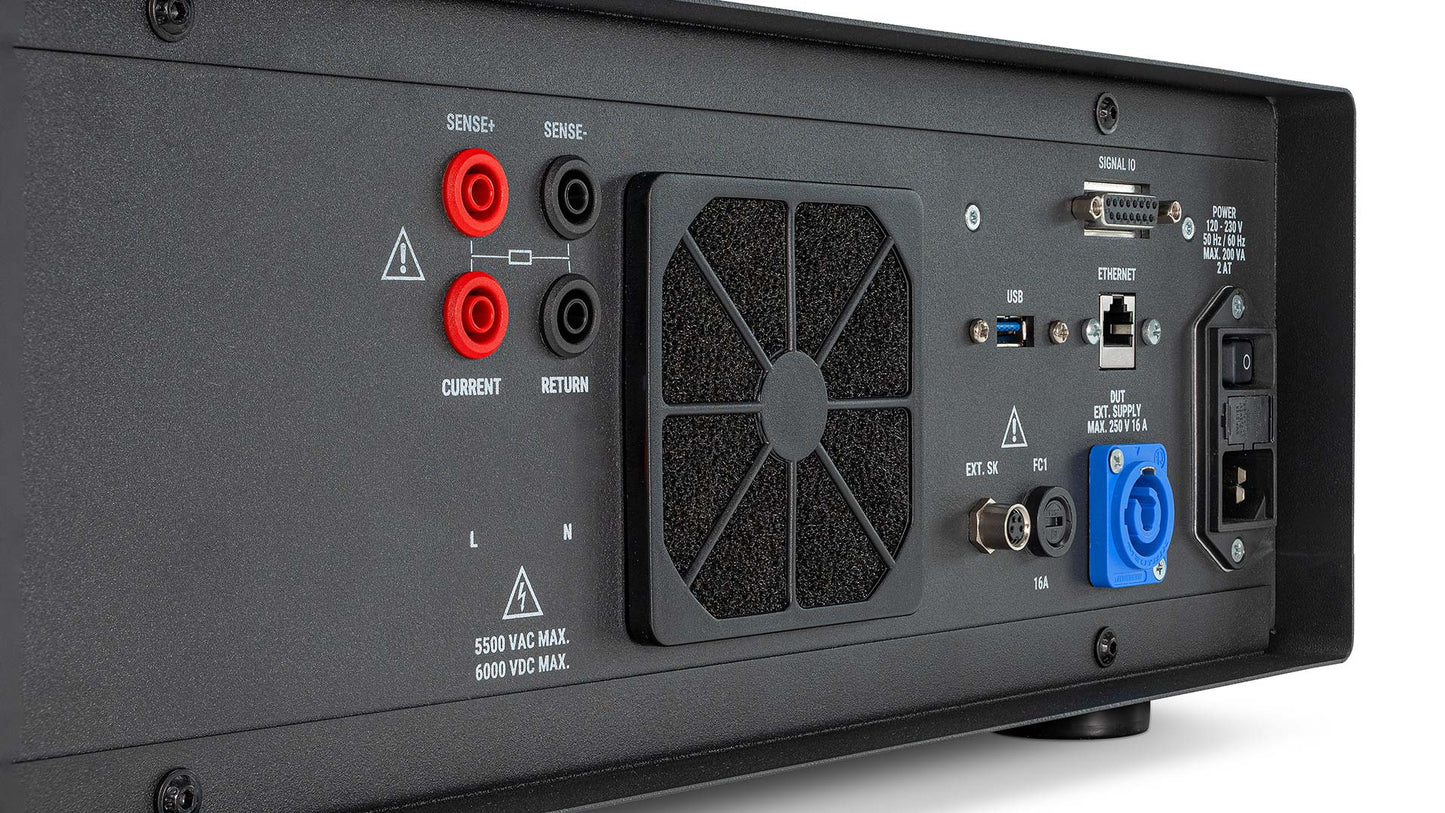

- Interfaces: Ethernet / LAN, USB.
- Mains supply: 90 V – 250 V, 50/60 Hz.
- Operation: 7" TFT colour display with touch.
- Dimensions and weight (specified in manufacturer's datasheet): H 148 mm × W 510 mm × D 420 mm; approx. 20 kg.
Source: SPS electronic datasheet for S 6700H.
