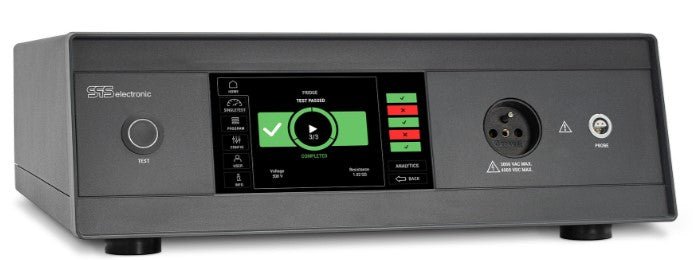

Hipot Safety Analyzer S 6700H
This instrument from SPS-ELECTR is a desktop Hipot Safety Analyzer, the S 6700H. The device is designed to perform electrical safety tests focusing on high-voltage AC and DC testing, insulation measurement, and ground bond testing. The S 6700H is supplied as a desktop unit with front panel connectors for mains connection of the Device Under Test (DUT).
Features
- High voltage AC test: 100 V to 5,500 V, current range 0–20 mA.
- High voltage DC test: 100 V to 6,000 V, current range 0–20 mA.
- Insulation measurement: 100 V to 6,000 V with resistance range 100 kΩ to 50 GΩ.
- Ground bond test: 1–32 A with measurement range 0–6 Ω.
- Front-panel mains socket for connecting the DUT.
Documentation
Further technical details and complete product information can be found in the manufacturer's datasheet:
View datasheet from manufacturer
Typical applications
- Used for performing high voltage AC tests within the specified voltage and current range.
- Used for performing high voltage DC tests within the specified voltage and current range.
- Used for insulation measurements in the voltage and resistance range specified above.
- Used for ground bond testing of connections with test current 1–32 A and measurement range up to 6 Ω.
Specifications
- Product: S 6700H
- Manufacturer: SPS-ELECTR
- Type: Desktop Hipot Safety Analyzer
- AC high voltage test: 100 V – 5,500 V; current range 0–20 mA
- DC high voltage test: 100 V – 6,000 V; current range 0–20 mA
- Insulation measurement: 100 V – 6,000 V; resistance range 100 kΩ – 50 GΩ
- Ground bond test: 1–32 A; measurement range 0–6 Ω
- Front-panel mains socket for DUT connection
