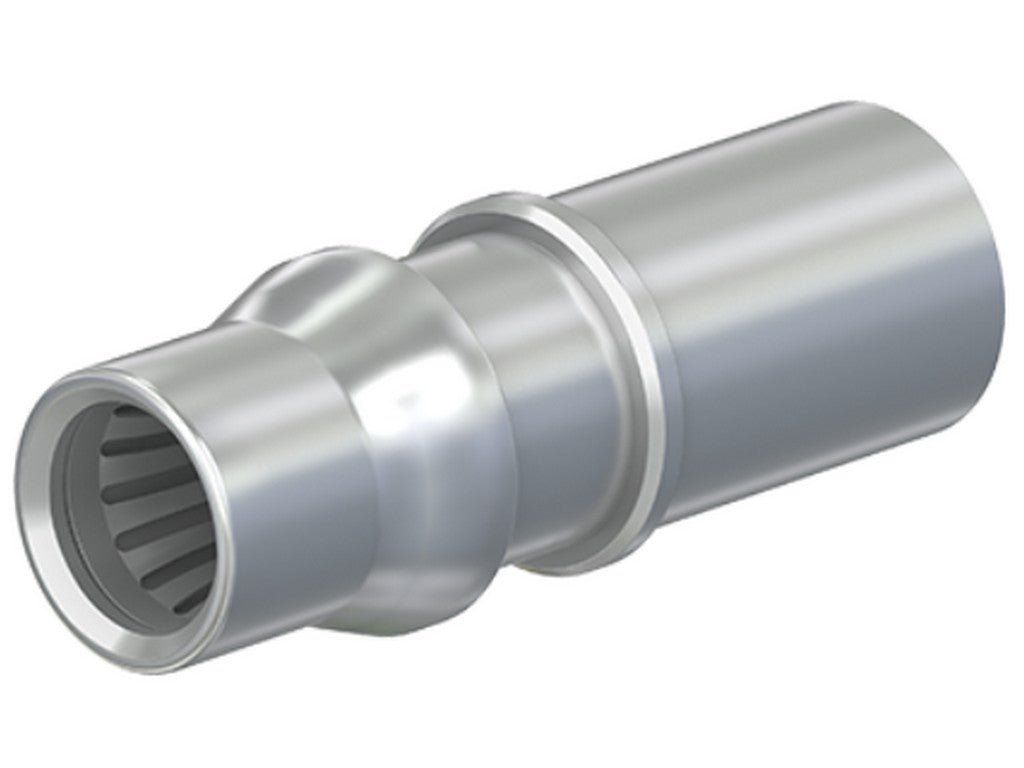

STAUBLI 33.0109
The STAUBLI 33.0109 is a contact from the CombiTac uniq series and belongs to the Ø6 mm contact family. It is used as part of a modular connection system, where multiple connections are assembled in the same frame or housing. Here, the focus is on the electrical power contact.
For this type of contact, the relevant aspects are primarily that it is designed for a conductor cross-section of 16 mm², corresponding to AWG 6, and that it has a rated current of 89 A. This makes it interesting when power needs to be safely conducted in a compact connection, without necessarily having to build a completely customized solution from scratch.
In the CombiTac uniq system, such contacts are typically used with matching contact carriers and other modules. This provides the freedom to combine power, signal, and other connection types in the same assembly, depending on the installation requirements.
See datasheet from the manufacturer
Specifications
- Manufacturer: STAUBLI
- MPN: 33.0109
- Type: CT-BP6/16 AG
- Contact Family: Ø6 mm
- Conductor Cross-section: 16 mm²
- AWG: 6
- Rated Current: 89 A
The content is generated using AI - we reserve the right for errors.
Contact HIN for further information about the product.
