STAUBLI 04.0427

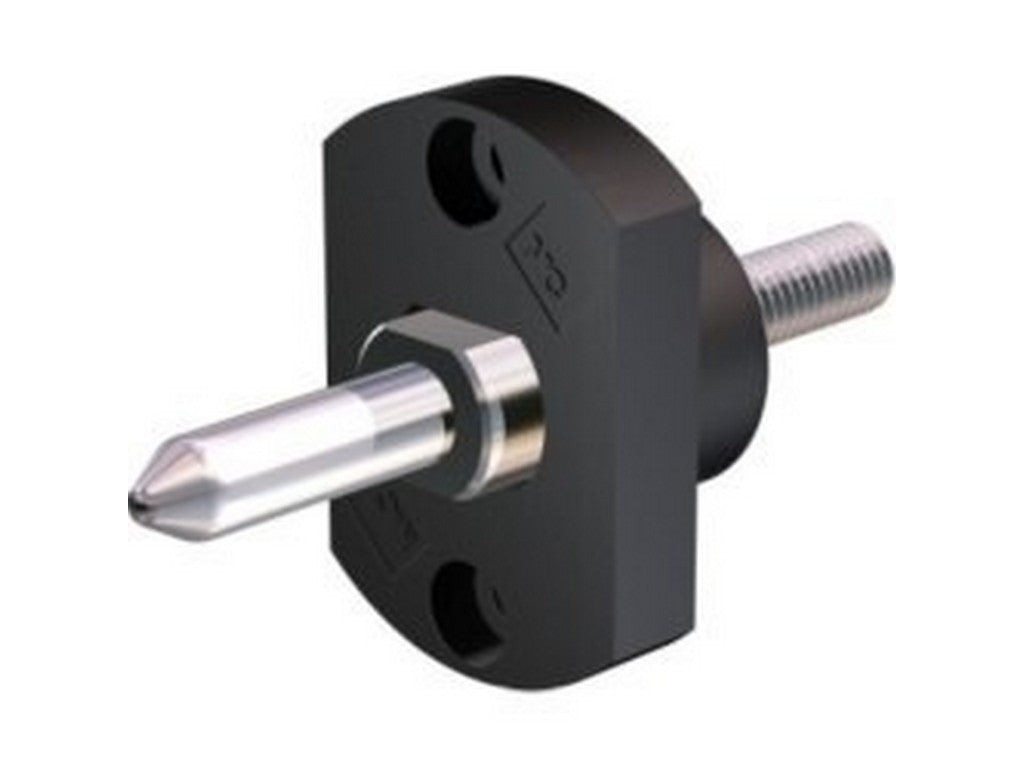

The STAUBLI 04.0427 is the complete EBS8-V0 slide-in plug. It is a connector in Stäubli’s single-pole plug-in system, designed for power connections where quick and secure connection and disconnection are desired, instead of working with fixed screw connections.
This provides a pluggable connection with an 8 mm nominal diameter and M8 threaded bolt connection. It is rated for 160 A, placing it at the heavy end of Stäubli’s slide-in product range. In practice, this means it is intended for high-power connections where contact stability and low heating are important factors.
The insulation material is PA66, and the electrical data shows a test voltage of 3.3 kV (50 Hz, 1 min.) and a flashover voltage of over 4 kV. The isolation coordination is stated as 6 kV/2. This indicates that it is a component for professional electrical engineering use, where electrical clearances and insulation are documented in the manufacturer's system.
Stäubli specifies order number 04.0427 as the complete plug, making it easier if it needs to be ordered directly as a spare part or as part of an existing system.
See datasheet from the manufacturer
Specifications
- Manufacturer: STAUBLI
- MPN: 04.0427
- Type: EBS8-V0 slide-in plug
- Nominal diameter: 8 mm
- Connection: M8 threaded bolt connection
- Rated current: 160 A
- Test voltage (50 Hz, 1 min.): 3.3 kV
- Flashover voltage (50 Hz): > 4 kV
- Isolation coordination: 6 kV/2
- Insulation material: PA66
- Order number 04.0427 is shown as the complete plug (EBS8-V0)
