STAUBLI 14.0048C1

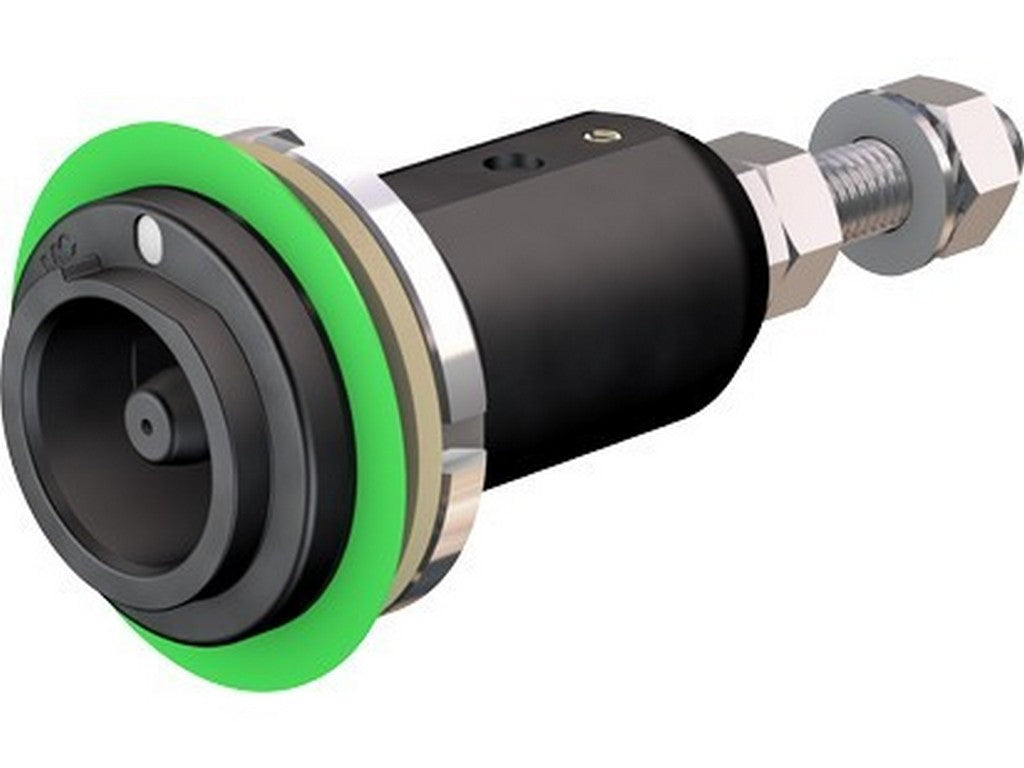

The STAUBLI 14.0048C1 is a panel-mounted socket for Stäubli's single-pole circular connectors in the 10BV series. It is used when the connection needs to be permanently fixed in an enclosure, a control panel, or another fixed part of the system, while the connection itself is made with the matching plug.
It is thus part of a high-current connection where a safe and robust transition between cabling and equipment is desired. The 10BV family is rated for 250 A to 630 A according to IEC and for 1000 V AC / 1500 V DC, making it a connector type for demanding power supplies and industrial installations.
This version has an M10 thread for cable connection. In practice, this means that the socket is designed for built-in installation, where fixed mounting points are used, and a compact solution with clear mechanical retention is desired.
As part of the 10BV series, mechanical coding and color coding are included in the system. This helps to keep track of individual connections and reduce the risk of incorrect connections. Color ring and protective cover are ordered separately.
If you wish to view the original product documentation, the datasheet can be opened here: See datasheet from the manufacturer
Specifications
- Manufacturer: STAUBLI
- MPN: 14.0048C1
- Type: ID/S10BV-C1
- Panel-mounted socket
- For Stäubli 10BV single-pole circular connectors
- Threaded connection: M10
- 10BV series: 250 A to 630 A (IEC)
- 10BV series: 1000 V AC / 1500 V DC
- Mechanical coding: C1 to C5
- Color coding: via add-on code numbers C1–C5
- Color ring and protective cover ordered separately
