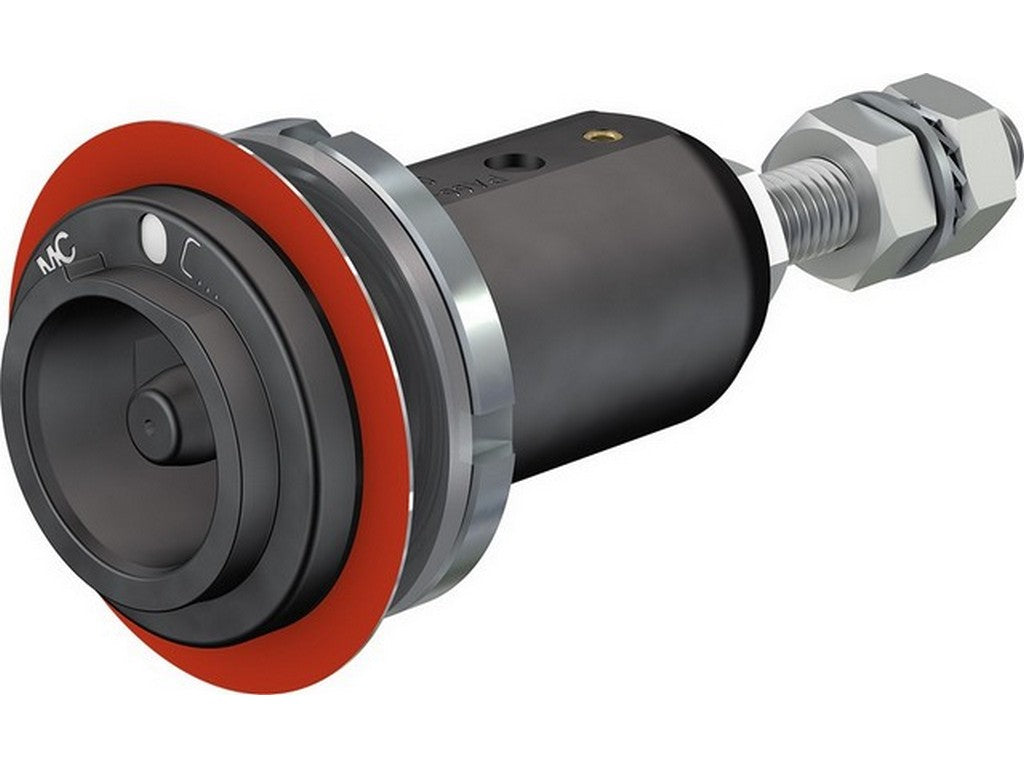

Single-pole insulated connector: Stäubli 14.0048C2 (ID/S10BV-C2)
Stäubli 14.0048C2 is identified as ID/S10BV-C2, a plug in the 10BV family of single-pole insulated connectors. The description and manufacturer's catalog indicate the product's basic function as a single-pole, insulated power connection with bayonet locking for secure connection and disconnection.
Function and Mechanics
- Plug design in the 10BV single-pole family (ID/S10BV-C2).
- Bayonet locking mechanism for plug-and-play connection and disconnection.
- Supports panel mounting with rear M10 threaded connection.
- Cable termination via AxiClamp or conventional crimp, according to the manufacturer's catalog.
Documentation
Technical data and type overviews are documented in Stäubli's official product catalog for the 10BV family. See datasheet from the manufacturer.
Typical Applications
The manufacturer's catalog indicates specific application examples for the 10BV family. ID/S10BV-C2 (14.0048C2) is described as suitable for temporary power supply, emergency power delivery, and use in test fields or aggregates where single-pole, insulated connections are required.
Specifications
- Manufacturer: Stäubli
- Manufacturer no.: 14.0048C2
- Type designation: ID/S10BV-C2 (10BV single-pole insulated connector)
- Rated current (specified for the 10BV series): up to 250 A
- Voltage range (specified for the 10BV series): AC 1000 V / DC 1500 V
- Durability: up to 5,000 mating cycles
- Locking mechanism: Bayonet locking
- Panel mounting: Rear M10 threaded connection
- Cable termination: AxiClamp or crimp
- Source: Stäubli product catalog for the 10BV family (see documentation link above)
