STAUBLI 14.0048C3

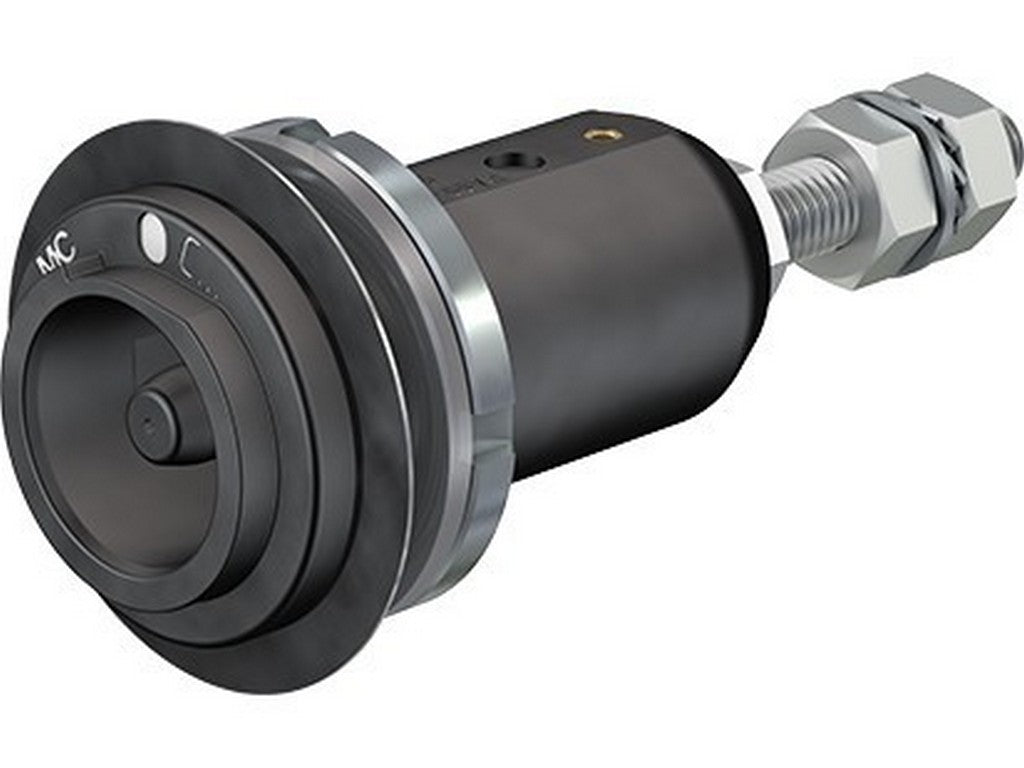

The STAUBLI 14.0048C3 is a panel-mounted, single-pole round socket from the 10BV series. It is used when a fixed connection needs to be made in a panel or machine, and where a strong and secure connection for high current is required.
Here, the mechanical design is particularly important. The connection is made with M10 thread, so the component is tightened in the panel. The contact surface has a 10 mm contact diameter, and the series is designed for conductors from 6 mm² to 70 mm². This makes it relevant in installations where large cables and high loads are used.
The 10BV series is rated for AC 1000 V and DC 1500 V, as well as a nominal current of 250 A. At the same time, it is specified for up to 5000 mating cycles, so it is made for repeated use in professional environments. It is a practical solution when the connection needs to be both robust and easy to work with in daily use.
Stäubli describes the series with a bayonet lock, which provides a clear and secure connection. In practice, this means that you can quickly connect and disconnect, but still get a locked connection that does not come loose by itself during operation.
See datasheet from the manufacturer
Typical applications
Stäubli specifies use in low-voltage areas such as temporary power supply, emergency power systems, and industrial environments, including plants, aggregates, and test fields.
Specifications
- Manufacturer: STAUBLI
- MPN: 14.0048C3
- Stäubli type: ID/S10BV-C3
- Series: 10BV
- Type: panel-mounted single-pole round socket
- Mounting: screw mounting with M10 thread
- Contact diameter: 10 mm
- Conductor cross-section: 6 mm² to 70 mm²
- Rated current: 250 A
- Rated voltage: AC 1000 V / DC 1500 V
- Mating cycles: up to 5000
- Datasheet: https://www.staubli.com/content/dam/ecs/catalogs-brochures/PTD/PL-Main-Insulated-10-21mm-11013982-en.pdf
