STAUBLI 14.0048C4

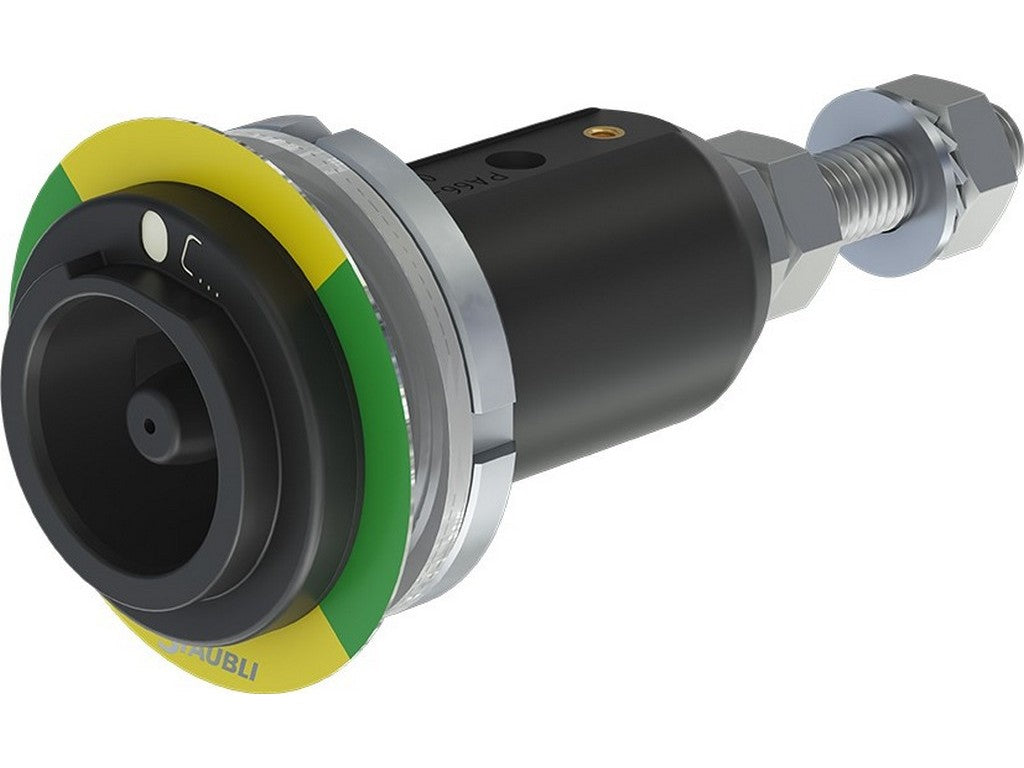

The STAUBLI 14.0048C4 is a panel receptacle from the 10BV series, meaning it is a single-pole, insulated round connector for fixed panel mounting. It is used when a robust power connection is required that is both easy to connect and safe to use in a professional installation.
This solution features a bayonet lock, allowing the connection to be quickly and securely locked. This is practical in systems where quick and effortless connection and disconnection are necessary, while still ensuring the connection is properly seated. The contact surface is dimensioned for 10 mm, and the series is designed for high current transfer in low-voltage applications.
For panel mounting, this variant is designed with an M10 threaded connection. The materials specified are PA for insulation and CuZn for metal parts, and the series is rated for up to 5000 mating cycles. This makes it suitable for applications with repeated connections in operation, test setups, or industrial equipment.
The temperature range is from -40 °C to +90 °C, and the IEC rated voltage is AC 1000 V / DC 1500 V with an IEC rated current of 250 A. This is valuable in installations where both load capacity and operational reliability are critical.
See datasheet from the manufacturer
Typical applications
This type of panel connection is typically used in industrial environments, test fields, and other installations where a fixed and secure power connection with high current capacity is needed.
Specifications
- Manufacturer: STAUBLI
- MPN: 14.0048C4
- Type: ID/S10BV-C4
- Series: 10BV round connector family
- Single-pole, insulated round connector
- Nominal pin/socket diameter: 10 mm
- IEC rated voltage: AC 1000 V / DC 1500 V
- IEC rated current: 250 A
- Panel mounting: threaded M10 connection
- Locking: bayonet locking
- Insulation material: PA
- Metal parts: CuZn (brass)
- Mating cycles: up to 5000
- Temperature range: -40 °C to +90 °C
