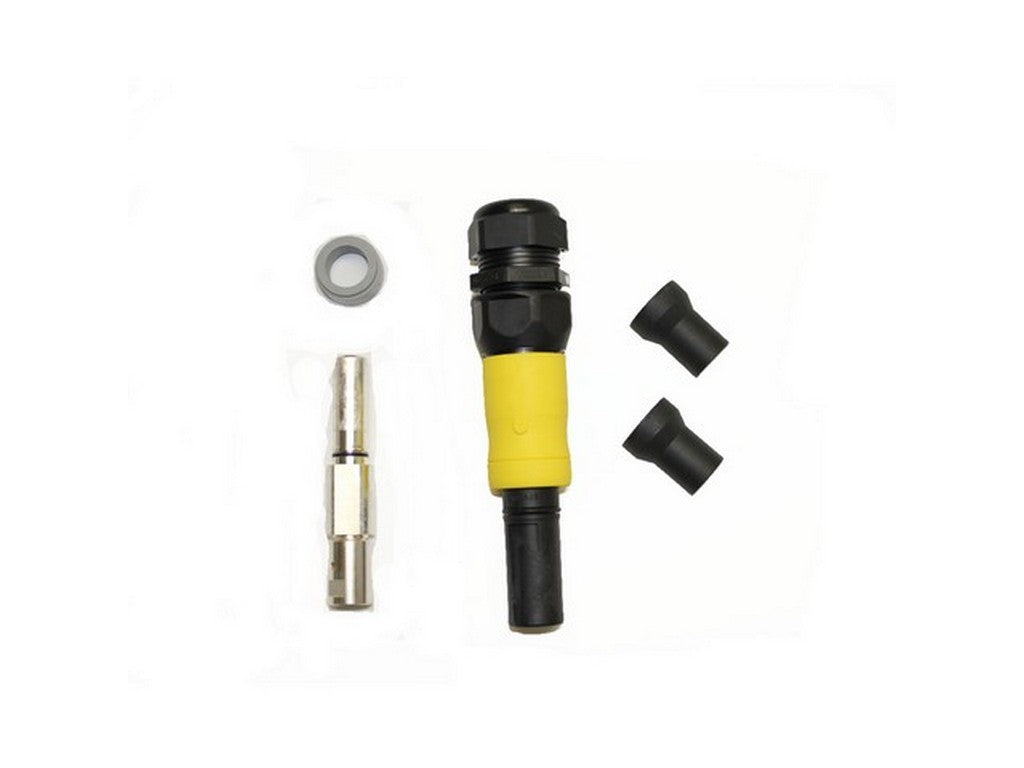

STAUBLI 15.0651C1-24
This is a single-pole, insulated circular connector from Staubli's 10BV series. It is used with the corresponding 10BV male/female connection to create a secure and robust power connection in the low-voltage range.
Key features of this variant include the AxiClamp cable connection and bayonet lock. The bayonet lock makes assembly simple in practice: the plug is inserted, twisted into place, and mechanically locks. This solution is designed for situations where the connection needs to be quick to establish but remain secure during operation.
The 10BV series is designed for demanding power supply in industry, test environments, and temporary supply tasks. Particularly relevant here are the high rated current, high rated voltage, and documented durability with repeated connections. The contact and insulation design itself is also important because it supports a safe and stable connection in professional installations.
On this version, the conductor cross-section is 50–70 mm², and the cable entry is for 13–25 mm. This means it is intended for relatively heavy cables where a firm and proper strain relief is required at the connection.
See datasheet from the manufacturer: See datasheet from the manufacturer
Specifications
- Manufacturer: STAUBLI
- MPN: 15.0651C1-24
- Type: KST10BV-AX/M32/50-70-C
- Series: 10BV, single-pole circular connector
- Cable connection: AxiClamp
- Conductor cross-section: 50–70 mm²
- Cable entry: 13–25 mm
- Rated current: 250 A IEC
- Rated voltage: AC 1000 V / DC 1500 V
- Mating durability: up to 5000 mating cycles
- Insulation material: PA
- Metal parts: CuZn (Ag)
