STAUBLI 15.0659-22

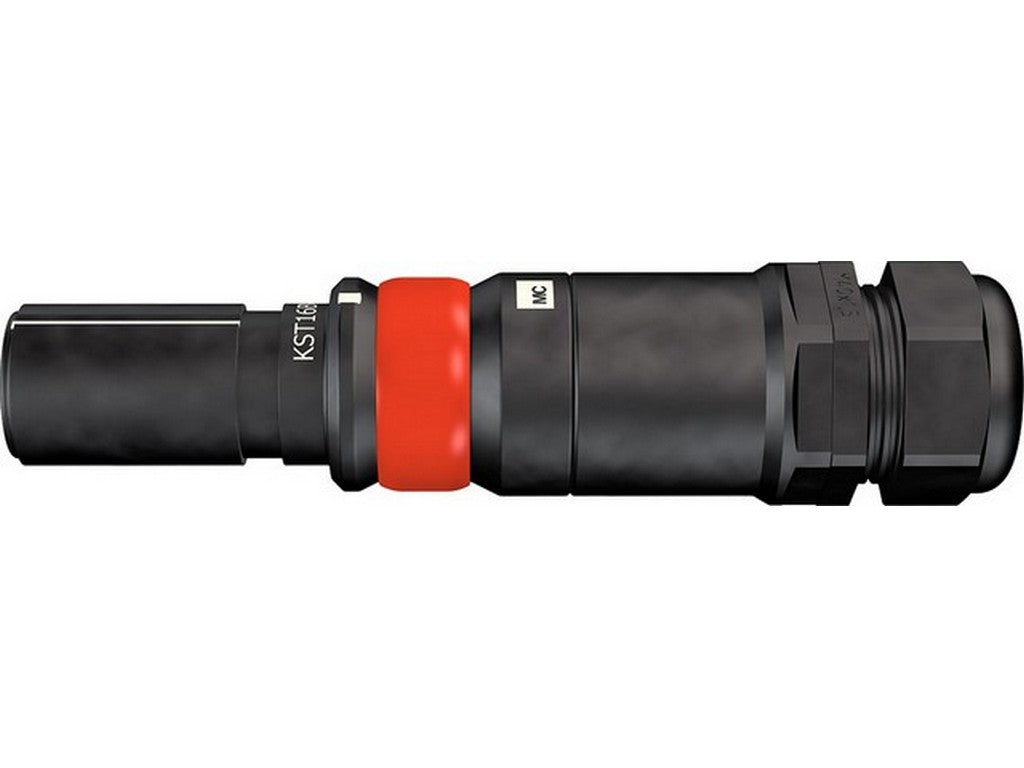

The STAUBLI 15.0659-22 is a single-pole circular connector from the Stäubli 16BV series. It is used when a robust and secure power connection is required for flexible cables with a large conductor cross-section. Here, it is especially the combination of bayonet lock and AxiClamp termination that makes the connector suitable for professional cabling, where the connection must be both secure and practical to install.
The connector is designed for conductors of 50–70 mm², and the datasheet also indicates use with flexible wires such as H07RN-F in the same range. The cable is routed through a cable gland for ø15–28 mm, and the AxiClamp sleeve has a wrench size of 16 mm. This provides a solution where cable and connector work together as a single, mechanically stable connection.
The 16BV family is rated for up to 1000 V and 530 A, making it a component for demanding power connections where the focus is on both current capacity and secure locking. This type of connector is typically found where a connection not only needs to be plug-in and plug-out capable, but also withstand repeated use in a technical installation.
Typical applications
The connector is used in professional systems where heavy-duty, flexible cables are used, and a reliable single-pole connection is needed. This can be in setups where a fixed, mechanically secure connection is desired, which is still easy to handle during service or reconfiguration.
See datasheet from the manufacturer
Specifications
- Manufacturer: STAUBLI
- MPN: 15.0659-22
- Series: 16BV
- Type: single-pole circular connector
- Locking type: bayonet lock
- Termination: AxiClamp
- Conductor cross-section: 50–70 mm²
- Compatibility with flexible cables: class 5 and 6
- Indicated for H07RN-F flexible wires 50–70 mm²
- Voltage: up to 1000 V
- Current: up to 530 A
- Approximate overall length: 209 mm
- Outer diameter: 51.5 mm
- Cable gland: Ø 15–28 mm
- Max. conductor diameter: 12.5 mm
- AxiClamp sleeve wrench size: 16 mm
- Order number in the datasheet: 15.0659-* with color codes 20–29
The content is AI-generated - we reserve the right for errors.
Contact HIN for further information about the product.
