STAUBLI 22.1007

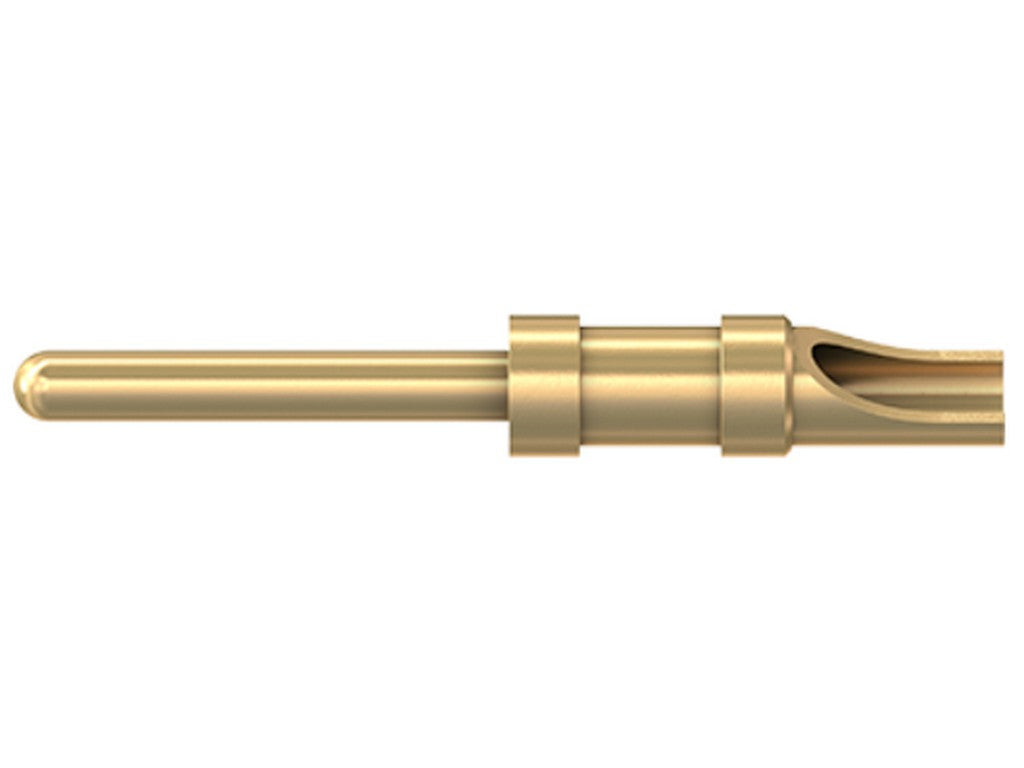

STAUBLI 22.1007 is a component part for the SLS1-S assembly and is listed as model LS1-S in Stäubli's catalog. It is used as part of a test lead where a fixed, soldered connection is required. The system itself is designed for a 1 mm plug system, making it suitable for measurement and test equipment that utilizes small and precise connections.
In practice, it is a spare part or construction component used when a test lead needs to be assembled with a solder connection instead of a quick plug assembly. This makes it relevant in laboratories, test environments, and other professional contexts where test leads for measurement tasks are built or maintained.
The electrical ratings are specified as 30 V AC / 60 V DC at 6 A. The contact surface is gold-plated, and the contact material is CuZn. This information is important as it indicates the electrical load the part is designed for and how the contact surface is constructed in the finished assembly.
If you work with the Stäubli SLS1-S system, the 22.1007 is thus one of the parts included in the construction of the test lead itself. It is not intended as a loose universal part, but as a specific component in that particular series.
Specifications
- Manufacturer: STAUBLI
- MPN: 22.1007
- Model: LS1-S
- Component part for: SLS1-S assembly
- Plug system diameter: 1 mm
- Nominal values: 30 V AC / 60 V DC
- Current: 6 A
- Contact surface: Au (gold-plated)
- Contact base material: CuZn
- Connection: solder connection
See datasheet from the manufacturer
