STAUBLI 33.0529

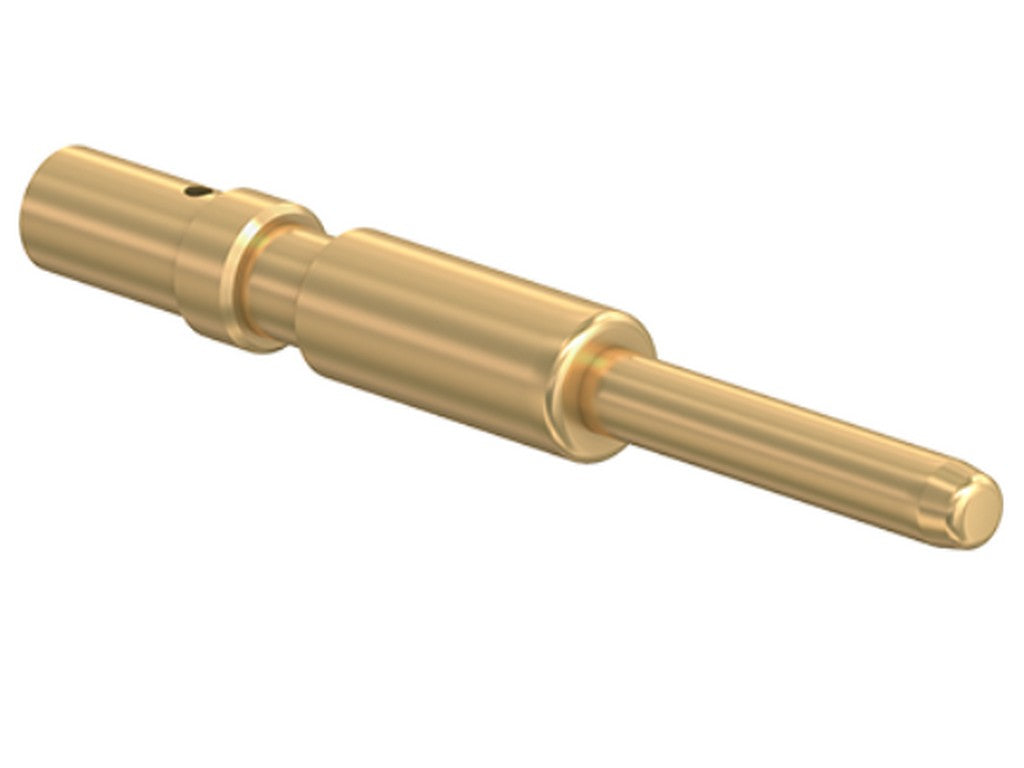

The STAUBLI 33.0529 is a socket contact for CombiTac contact carriers, specifically the CT-SP3/2.5-4/PE AU. It is designed as a Ø 3 mm contact and is intended for protective earth (PE). In practice, this means it is used where a secure earth connection needs to be integrated into a modular CombiTac system.
The conductor cross-section for the contact is specified as 2.5–4 mm², corresponding to AWG 14–12. This is important information when selecting the correct conductor and ensuring the contact fits into the overall assembly. In the catalog, it is also listed as a socket contact with “None” as termination, meaning it is intended as a contact for the overall CombiTac assembly rather than a pre-terminated individual contact.
As part of the Stäubli CombiTac series, it is integrated into a modular system where connections are assembled as needed. Here, it is used with CombiTac contact carriers CT-E3-2+PE, fitting into a professional configuration where power, signal, or earth can be combined in the same solution.
See datasheet from the manufacturer
Specifications
- Manufacturer: STAUBLI
- MPN: 33.0529
- Contact type: CT-SP3/2.5-4/PE AU
- Contact form: socket contact
- Contact size: Ø 3 mm
- Application: protective earth (PE)
- Compatible with: CombiTac contact carriers CT-E3-2+PE
- Conductor cross-section: 2.5–4 mm²
- AWG: 14–12
- Type of termination: None
