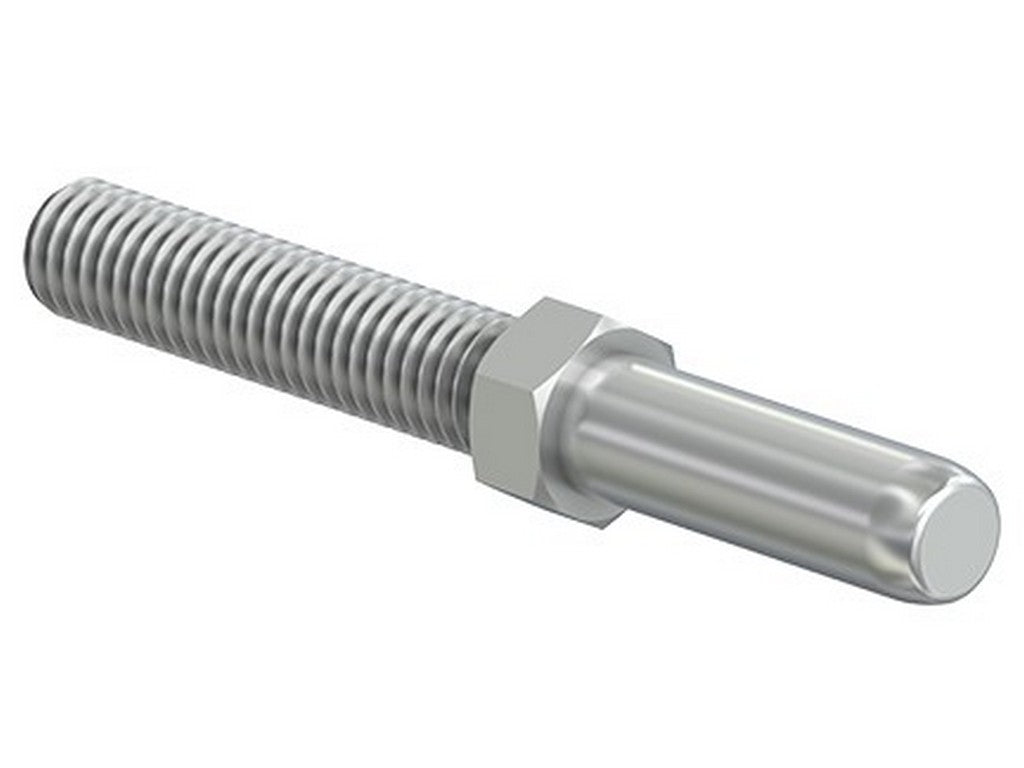

STAUBLI 04.0005
The STAUBLI 04.0005 is an uninsulated single-pole plug, type S6N. It is used when a simple and robust power connection is needed in professional installations, where the contact surface itself is important, and where the connection is assembled with a threaded connection.
It is part of Stäubli's range of single-pole circular connectors for power transmission. The focus here is on low contact resistance, high current carrying capacity, and a mechanical design suitable for industrial environments. For this type of connection, it is particularly relevant that it can be tightened correctly and remains stable, so that the connection functions reliably during operation.
The S6N version has an M6 threaded connection and a recommended tightening torque of 3.0 Nm. The outer dimensions are ØA 6 mm, ØB 19.5 mm, and C 51.5 mm. The specified wrench size is 8 mm, and the weight is 0.012 kg. The rated current is stated as 100 A at 80 °C and 180 A at 150 °C.
If you work with power distribution, control panels, or other equipment requiring a compact and separable connection, this type of plug makes the job easy. It is built to be part of a complete system with the corresponding counterparts from the series.
See datasheet from the manufacturer
Specifications
- Manufacturer: STAUBLI
- MPN: 04.0005
- Type: uninsulated single-pole plug, S6N
- Connection: M6 thread
- Recommended tightening torque: 3.0 Nm
- Dimensions: ØA 6 mm, ØB 19.5 mm, C 51.5 mm
- Rated current: 100 A at 80 °C
- Rated current: 180 A at 150 °C
- Weight: 0.012 kg
- Wrench size (SW): 8 mm
