STAUBLI 22.1070

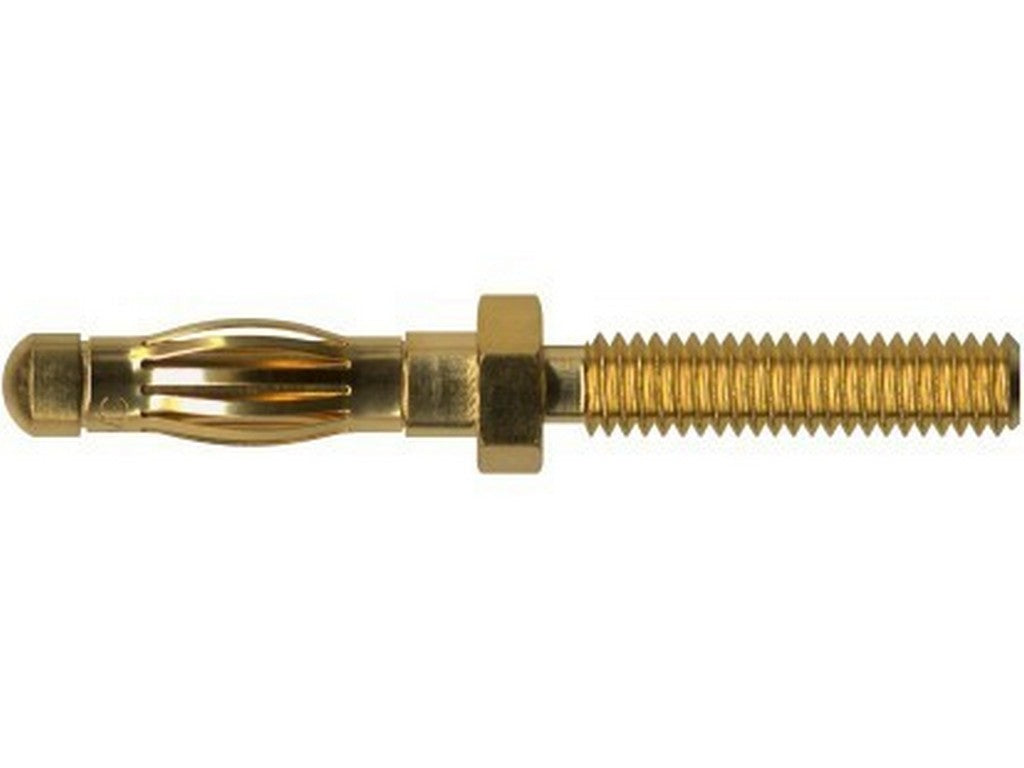

The STAUBLI 22.1070 is a 4 mm MULTILAM plug for permanent electrical connections where a compact contact with high current carrying capacity is required. It is of type SA400-B and has an M4 threaded connection.
In practice, it is used as a robust single component in the construction of test equipment, devices, and other professional connections where the contact must be stable and have low contact resistance. The gold-plated brass part is chosen to provide a reliable electrical contact, and Stäubli specifies a contact resistance of 0.3 mΩ for this version.
It is also a plug designed to withstand operational stress. It is rated for 50 A and up to 150 °C, and the insertion force is approximately 5 N. In practice, this indicates that it is intended for technical installations where the connection must be mechanically simple, yet still function safely and predictably.
Separate accessories for mounting must be selected according to the specific setup.
