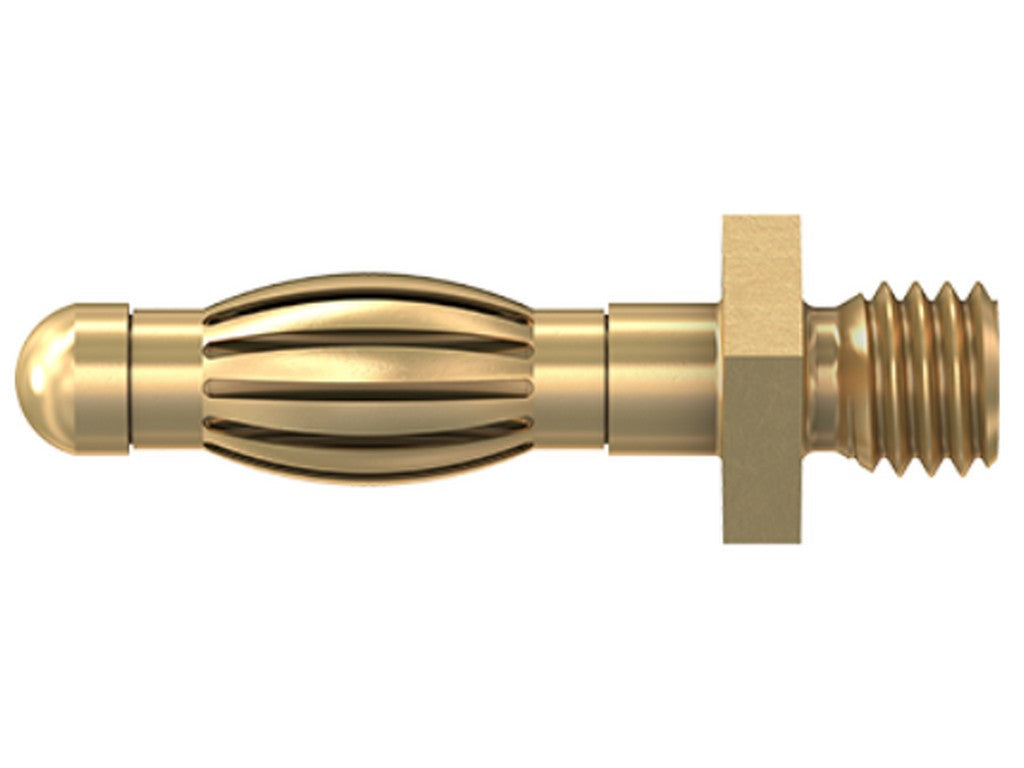

STAUBLI 22.1052 MULTILAM plug SA402
The Stäubli 22.1052 is a 4 mm MULTILAM plug for fixed electrical connections where a compact contact with stable current transfer is desired. It belongs to the SA402 type and uses an M5 connection, making it suitable for setups that involve a screw connection on the conductor side.
The contact material itself is gold-plated brass. This is relevant because the gold plating provides low and stable contact resistance, which is typically sought after in professional systems where the connection must function reliably over time. The rated current is 50 A, and the contact resistance is 0.3 mΩ. The maximum operating temperature is 150 °C.
In practice, this type of plug is used when a robust plug connection is needed in equipment and installations where space is limited, but where there are still demands for current carrying capacity and good mechanical contact. The MULTILAM design is developed to provide even contact pressure, and the typical disengagement force is around 5 N.
Typical applications
- Machine building and integrators
- Measurement technology
- Medical technology
- Automotive industry
- Education and laboratories
Specifications
- Manufacturer: STAUBLI
- MPN: 22.1052
- Type: SA402
- Nominal diameter: 4 mm
- Connection: M5
- Material, metal parts: brass (CuZn)
- Plating: gold
- Rated current: 50 A
- Contact resistance: 0.3 mΩ
- Maximum operating temperature: 150 °C
- Disengagement force: approx. 5 N
