STAUBLI 22.1055 MULTILAM plug SA405

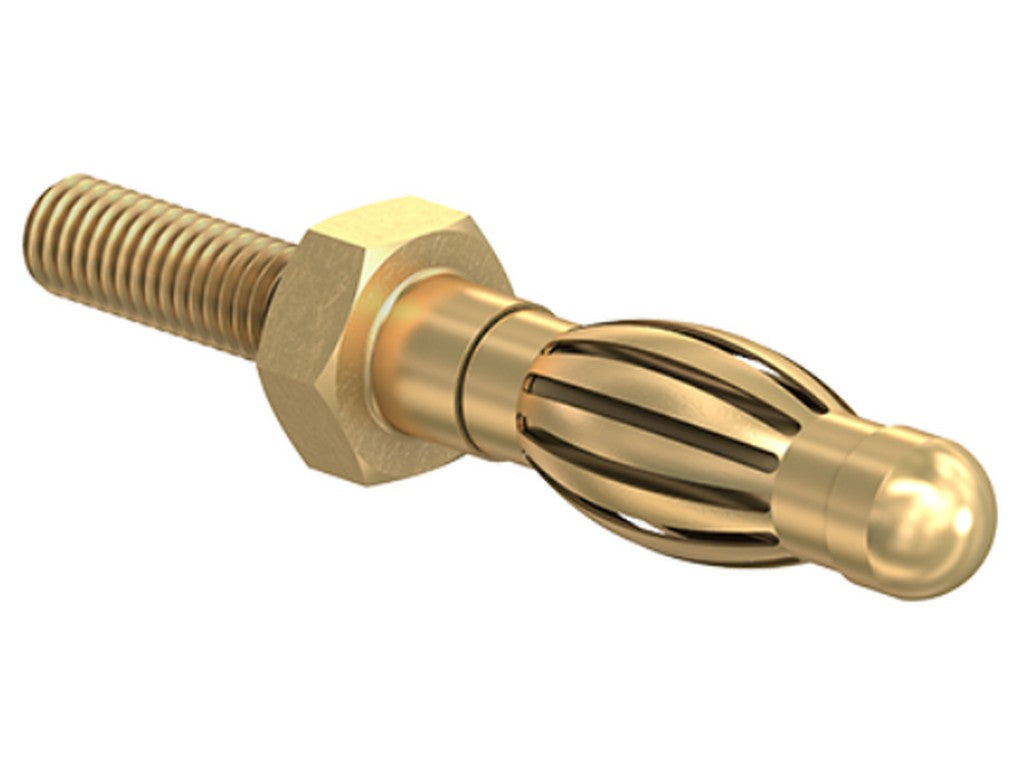

The Stäubli 22.1055 is a MULTILAM plug in the SA405 version, designed for a nominal diameter of 4 mm. It is a metal plug with an M3 threaded connection, making it suitable for a robust and professional setup where the connection needs to be stable yet detachable.
In practice, this type of plug is used when low-loss electrical contact and an even contact pressure are desired. The metal parts are made of gold-plated brass, ensuring low and constant contact resistance. For many customers, this is particularly important in equipment with high current flow or where unnecessary heat loss in the connection needs to be avoided.
The SA405 is rated for 50 A and a contact resistance of 0.3 mΩ. The maximum operating temperature is 150 °C, and the specified withdrawal force is approximately 5 N. This indicates that it is a compact contact with relatively easy disconnection, yet designed for technical applications where electrical properties and mechanical reliability are paramount.
Accessories and mounting parts for this variant are listed in the Stäubli catalog on page 17, and the datasheet can be found here: View datasheet from the manufacturer
Typical applications
- Machine building and integrator solutions
- Measurement technology
- Research and laboratory equipment
- Medical technology
- Automotive and industrial use
Specifications
- Manufacturer: STAUBLI
- MPN: 22.1055
- Type: SA405
- Nominal diameter: 4 mm
- Connection: M3
- Metal parts: CuZn, gold-plated (Au)
- Rated current: 50 A
- Contact resistance: 0.3 mΩ
- Max. operating temperature: 150 °C
- Withdrawal force: approx. 5 N
- EAN/GTIN: not provided in the verified data
