STAUBLI 05.0204

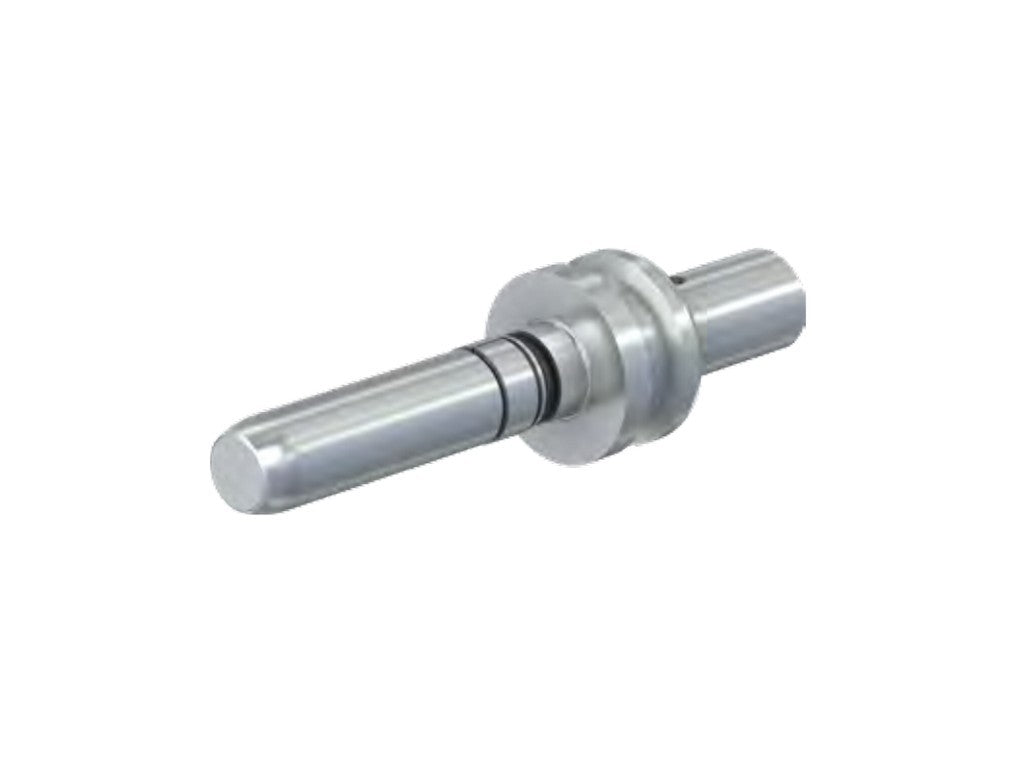

The Stäubli 05.0204 is a single-pole, uninsulated round connector with a snap lock and crimp termination. It belongs to the Stäubli catalog for Round Connectors and is used when a simple and robust power connection with high current carrying capacity is required.
In practice, it is a plug for heavy-duty cables, where the connection is terminated with a crimp. Here, it is designed for copper cable with a cross-section of 35 mm² and a rated current of 150 A at 80 °C. Stäubli recommends hexagonal crimping for flexible copper cables in class 5 and 6, ensuring the cable is securely held in the connection.
The snap lock ensures that the connection locks mechanically when assembled. This is an advantage in setups where the plug should not just sit loosely but be securely held during operation. As an uninsulated round connector, it is typically used in technical installations where protected mounting and appropriate shielding around the connection are employed.
Matching counterparts and accessories are available in the same catalog, allowing it to be part of a complete solution rather than a single loose component. See datasheet from the manufacturer
Typical applications
- Power connections in industry and panel systems
- Power distribution and busbar connections
- Test benches and other technical installations with high current
Specifications
- Manufacturer: STAUBLI
- MPN: 05.0204
- Type: SP10AR-N/35
- Single-pole, uninsulated round connector
- Snap lock
- Crimp termination
- Copper cable cross-section: 35 mm²
- Rated current: 150 A (80 °C)
- Outer dimensions: ØA 20.5 mm, ØB 10 mm, C 42.5 mm, D 78.5 mm
- Weight: 0.073 kg
