STAUBLI 05.0010

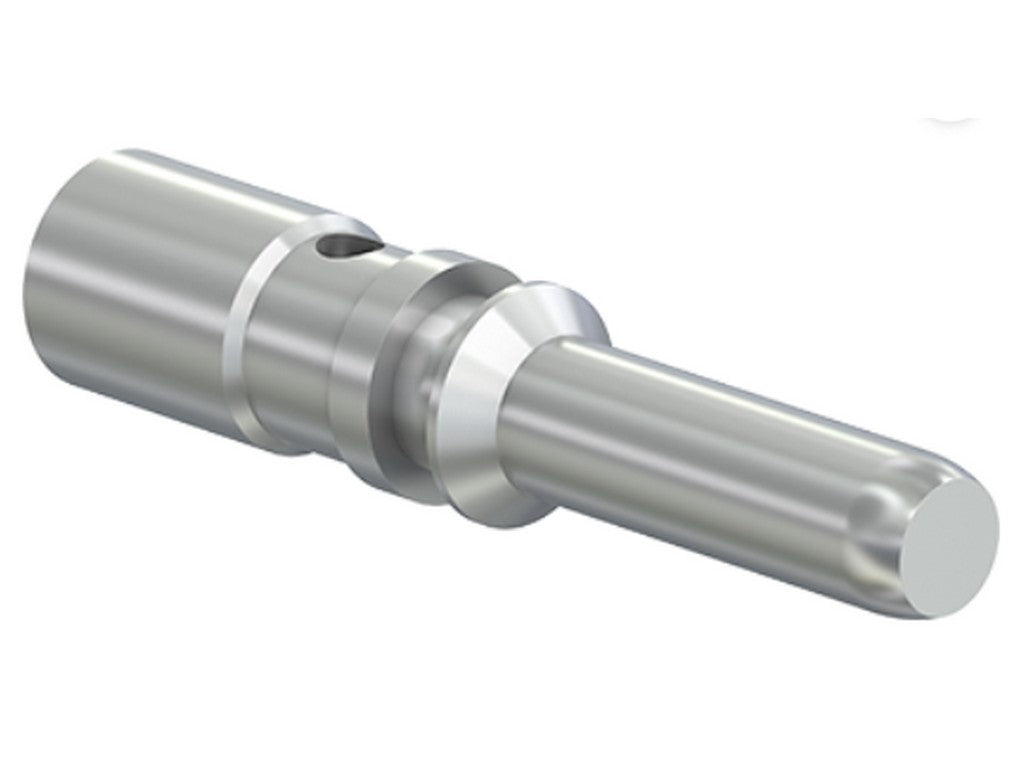

The STAUBLI 05.0010 is a single-pole, uninsulated round connector of type SP6N/16. It is used for creating a compact and robust power connection in a professional installation where a loose and disconnectable connection is more practical than a permanent one.
This is particularly relevant in systems and equipment that handle high currents and where the connection needs to be assembled and disassembled repeatedly. The uninsulated design means that the connector part is integrated as part of an overall solution, taking into account the mechanical construction and surrounding protection.
In the catalog, it is specified for a conductor cross-section of Cu 16 mm² and a rated current of 100 A at 80 °C. This indicates that it is designed for demanding current-carrying connections, where it is important that the component matches the correct cable dimension and load. The dimensions are also fixed, allowing for integration into the overall construction without guesswork.
Its low weight, only 0.011 kg, makes it easy to handle during assembly and service, especially when working with multiple identical connections in the same system.
Typical Applications
- Power connections in industrial equipment
- Connections in power distribution and switchgear
- Technical installations where a single-pole plug connection is practical
Specifications
- Manufacturer: STAUBLI
- MPN: 05.0010
- Type: SP6N/16
- Single-pole, uninsulated round connector
- Conductor cross-section: Cu 16 mm²
- Rated current (80 °C): 100 A
- Weight: 0.011 kg
- Dimensions: Ø A = 9 mm, Ø B = 6 mm, C = 19.5 mm, D = 42.5 mm, Ø E = 9 mm, Ø K = 6 mm, L = 14 mm, N = 7 mm
- See datasheet from the manufacturer
The content is AI-generated - we reserve the right for errors.
Contact HIN for further information about the product.
