Fluke i5sPQ3 — AC Current Clamps (3-pack)

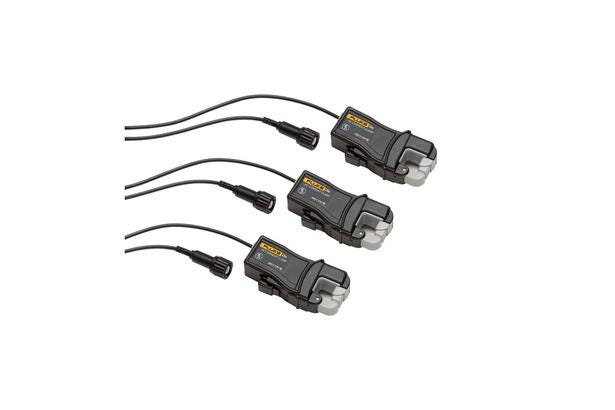

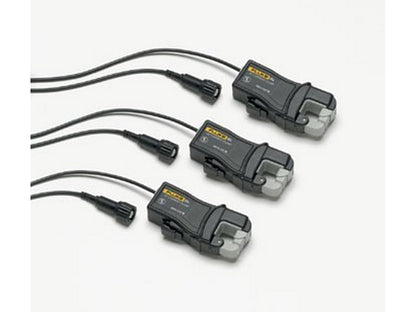

The Fluke i5sPQ3 is a pack of three AC current clamps from FLUKE designed for low currents on secondary current transformers. The product is specifically configured for measuring low AC currents and provides continuous measurement in the lower range with a stated accuracy verified by the manufacturer.
Features and Measurement Capabilities
- Pack size: 3 units (Fluke i5sPQ3).
- Measurement range per clamp: continuous 10 mA to 6 A AC.
- Nominal maximum measurement: up to 5 A AC (measured as the upper range of the function).
- Accuracy: 1% for 1 A to 5 A; 1% + 5 mA for 10 mA to 1 A (48 Hz to 65 Hz).
- Output level: 400 mV/A.
- Maximum non-destructive current: 70 A.
- Maximum conductor diameter: 15 mm.
- Safety classification: CAT III 600 V per IEC/EN61010-1.
Typical Applications
The Fluke i5sPQ3 is used for low AC current measurements on secondary current transformers. The application is directly stated in the manufacturer's product description and includes measurements in the specified low current range (10 mA–6 A).
Documentation
Information in this description has been verified via the manufacturer's product description (FLUKE, part no. 2457508). Source: Fluke product page, part no. 2457508.
Specifications
- Product name: Fluke i5sPQ3 (3-pack).
- Manufacturer: FLUKE.
- Manufacturer's part number: 2457508.
- Continuous measurement range: 10 mA to 6 A AC.
- Stated upper measurement value: 5 A AC.
- Accuracy: 1% (1 A–5 A); 1% + 5 mA (10 mA–1 A) at 48 Hz–65 Hz.
- Output: 400 mV/A.
- Max non-destructive current: 70 A.
- Max. conductor diameter: 15 mm.
- Safety: CAT III 600 V (IEC/EN61010-1).
The content is generated using AI – we reserve the right for errors.
Contact HIN for further information about the product.
