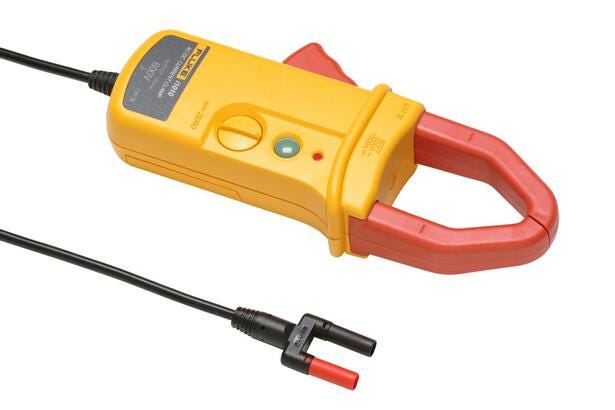

Fluke i1010 — Battery-Powered Hall Effect Clamp Meter
The Fluke i1010 is a battery-powered Hall effect clamp meter and accessory from FLUKE designed for measuring both DC and AC currents. The device provides an analog output of 1 mV per ampere and is specified with a basic accuracy of 2% + 0.5 A. The Fluke i1010 connects via shielded banana plugs and has an output cable length of 1.6 m.
Function and Signal
The clamp meter measures DC currents in the range of 1 A to 1000 A and AC currents in the range of 1 A to 600 A. The output is a low-voltage signal proportional to the measured current (1 mV/A), making the device suitable as a sensor/accessory for measuring instruments that can read such a voltage output. The maximum conductor diameter that can pass through the clamp is 30 mm.
Typical Applications
Used to measure:
- DC currents in the range of 1 A–1000 A.
- AC currents in the range of 1 A–600 A.
- Provides a 1 mV per ampere analog output for further measurement.
Safety and Operation
The device is safety rated to CAT III 600 V. The clamp meter is powered by a 9 V battery with a typical operating time of approximately 60 hours (stated as typical battery life). Connection is made via shielded banana plugs.
Specifications
- Product: Fluke i1010 (Battery-Powered Hall Effect Clamp Meter).
- Manufacturer: FLUKE.
- Manufacturer Part Number: 617735.
- DC Measurement Range: 1 A – 1000 A.
- AC Measurement Range: 1 A – 600 A.
- Output: 1 mV per ampere.
- Basic Accuracy: 2% + 0.5 A.
- Maximum Conductor Diameter: 30 mm.
- Output Cable Length: 1.6 m.
- Connection: shielded banana plugs.
- Safety Rating: CAT III 600 V.
- Battery Type and Life: 9 V battery, typical ~60 hours of operation.
Source: Product information from the manufacturer (FLUKE product page).
