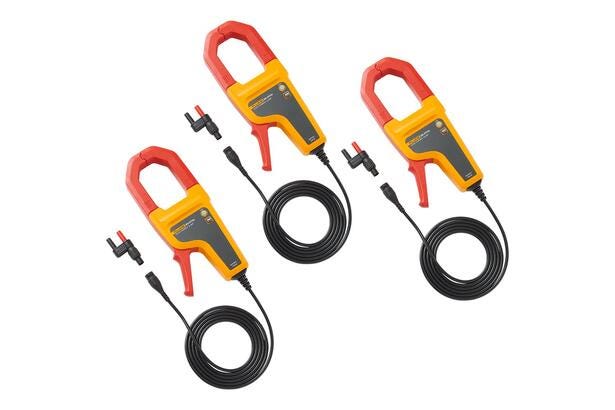

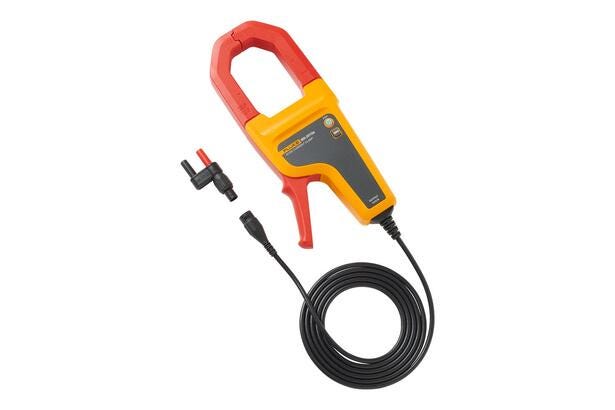

Fluke 80i-2010s AC/DC Current Clamp
The Fluke 80i-2010s is a current clamp for measuring both AC and DC current. It is used with a measuring instrument to measure current without interrupting the load. This makes it practical for installations and systems where a quick current reading is desired directly on the conductor.
It can measure up to 2000 A AC RMS and ±2000 A DC, covering both high AC and DC currents. This is relevant when working with larger conductors and currents where a standard clamp is insufficient. The clamp can handle conductors with a diameter of up to 52 mm, and the jaw opening is up to 81.5 mm, so it is built for thick cables and more powerful installations.
The output is routed via a 1.5 m shielded coaxial cable with a BNC connector, allowing it to be connected to compatible measuring equipment. It is powered by two AA batteries, making it easy to take into the field. At the same time, it is classified to meet the common safety requirements expected in environments with electrical measurements.
For a professional user, this is primarily an accessory that provides a simple and safe way to measure current without having to break the circuit. This is precisely the type of measurement for which a current clamp is chosen when the work needs to be done quickly and when the installation preferably needs to remain in operation.
Specifications
- Measures AC and DC current
- Current range: 2000 A AC RMS / ±2000 A DC
- Accuracy: ±0.8% of reading ±0.2% of range
- Max conductor diameter: 52.0 mm
- Max jaw opening: 81.5 mm
- Output cable: 1.5 m shielded coaxial cable with BNC connector
- Power supply: 2 x AA alkaline batteries
- Safety rating: IEC 61010-1, IEC 61010-2-032
- Category: CAT III 1000 V / CAT IV 600 V
