FLUKE i400s EL AC Current Clamp
The FLUKE i400s EL is an AC current clamp used with Fluke 17xx power loggers and power quality loggers. It enables current measurement without interrupting the conductor, as the clamp simply attaches around the cable or conductor and converts the current into a voltage signal that the logger can then process.
This is particularly relevant when monitoring loads, troubleshooting installations, or logging current over time in a system. The clamp has two measurement ranges, allowing you to choose the sensitivity that best suits the task. The smaller range is used for lower currents, while the larger range covers higher currents. This makes it more practical than a fixed, single-range solution.
The signal output is adapted to compatible Fluke loggers, so measurements can be displayed and recorded directly in the equipment it is designed to work with. Additionally, the clamp is safety classified to CAT IV 600 V / CAT III 1000 V, which is important when working with installations where equipment protection levels are required.
It can accommodate conductors with a diameter of up to 32 mm, making it suitable for many common installations and supply lines. This makes it useful in switchboards, with larger cables, and for measurements where a flexible current transformer for AC measurement is needed.
Specifications
- AC current clamp
- Compatible with Fluke 17xx power loggers and power quality loggers
- Two selectable measurement ranges: 0.5 A to 40 A and 5 A to 400 A
- Output: 10 mV/A on the 40 A range
- Output: 1 mV/A on the 400 A range
- Basic accuracy: 2 % + 0.015 A on the 40 A range
- Basic accuracy: 2 % + 0.04 A on the 400 A range
- Safety rating: CAT IV 600 V / CAT III 1000 V
- Max. conductor diameter: 32 mm
- Output cable: approx. 2–2.5 m

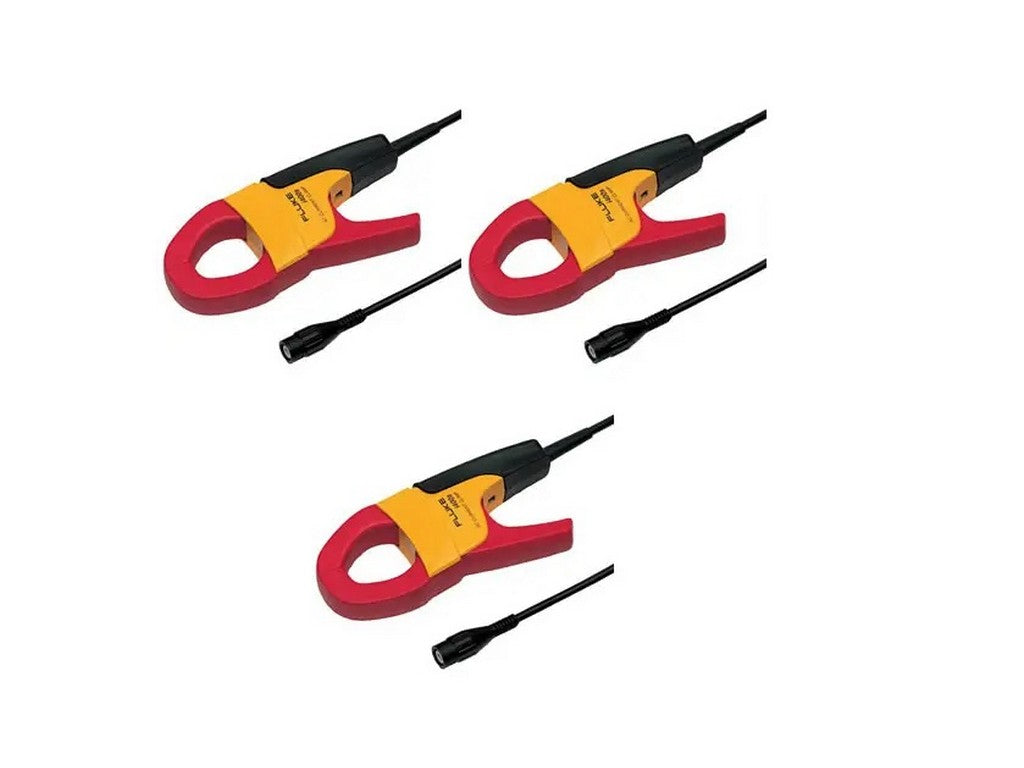

- Item number for three-pack model: 4974755
