Product Description

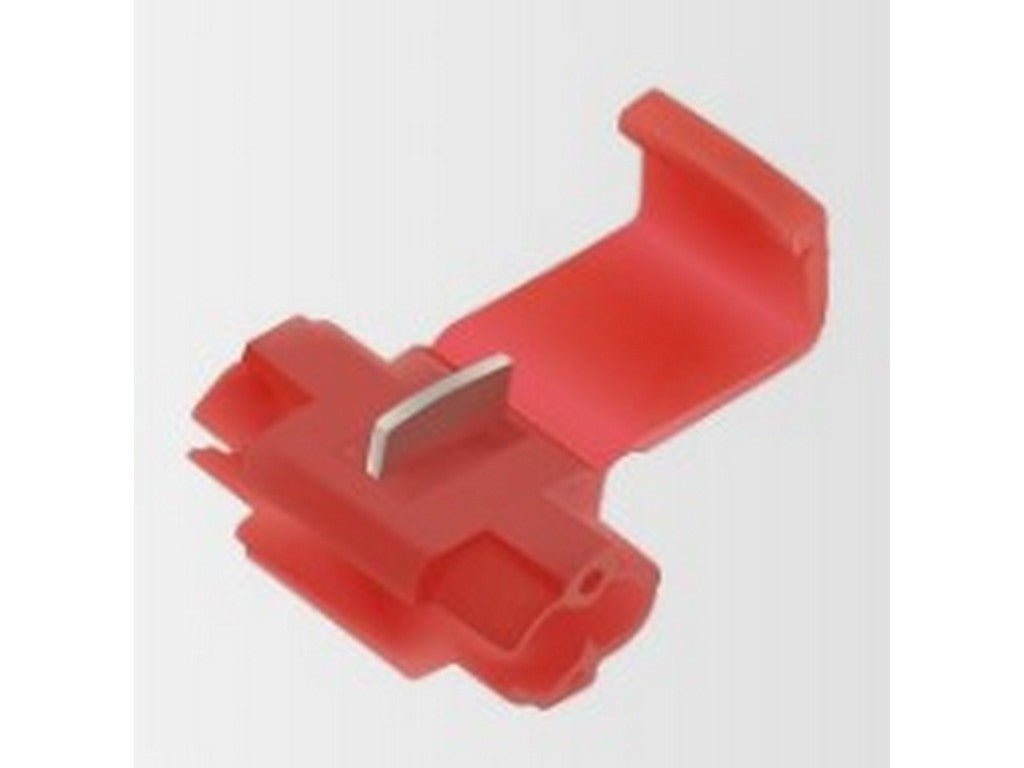

The Eisenacher K429010 is a red quick splice connector. The product type is directly specified by the manufacturer as a "Quick splice connector", indicating that it allows a "junction up to 1 mm²" in the manufacturer's datasheet. The K429010 appears to be a component for quick electrical branching or connection at the specified conductor dimensions.Technical Information
- Colour: red (specified in the datasheet)
- Material: Ms gal. Sn (specified in the datasheet)
- Insulation materials: PP and PA (both specified in the datasheet)
- Outer dimensions: l = 20.0 mm, b = 27.0 mm (specified in the datasheet)
- Junction: up to 1 mm² (specified in the datasheet as "junction up to 1 mm²")
- Product information on the manufacturer's site also indicates 0.5–1.5 mm² (listed on the product page)
- Packaging variants listed on the manufacturer's site: K429010.STANDARD VPE 500; variant K429010.1 (doubleknife) VPE 100
Description and data are based on the manufacturer's own specifications. For detailed technical data and visual reference, please refer to the manufacturer's datasheet.
See datasheet from the manufacturer
Specifications
- Manufacturer: EISENACHER
- Product number: K429010
- Type: Abzweigklemmverbinder / Quick splice connector (specified in the datasheet)
- Material: Ms gal. Sn
- Insulation material: PP and PA
- Outer dimensions: l = 20.0 mm, b = 27.0 mm
- Junction specified in the datasheet: up to 1 mm²
- Product information on the manufacturer's site: 0.5–1.5 mm²
- Packaging sizes listed on the manufacturer's site: K429010.STANDARD VPE 500; K429010.1 VPE 100 (doubleknife)
Content is generated using AI – we reserve the right for errors.
Contact HIN for further information about the product.
