Product Overview

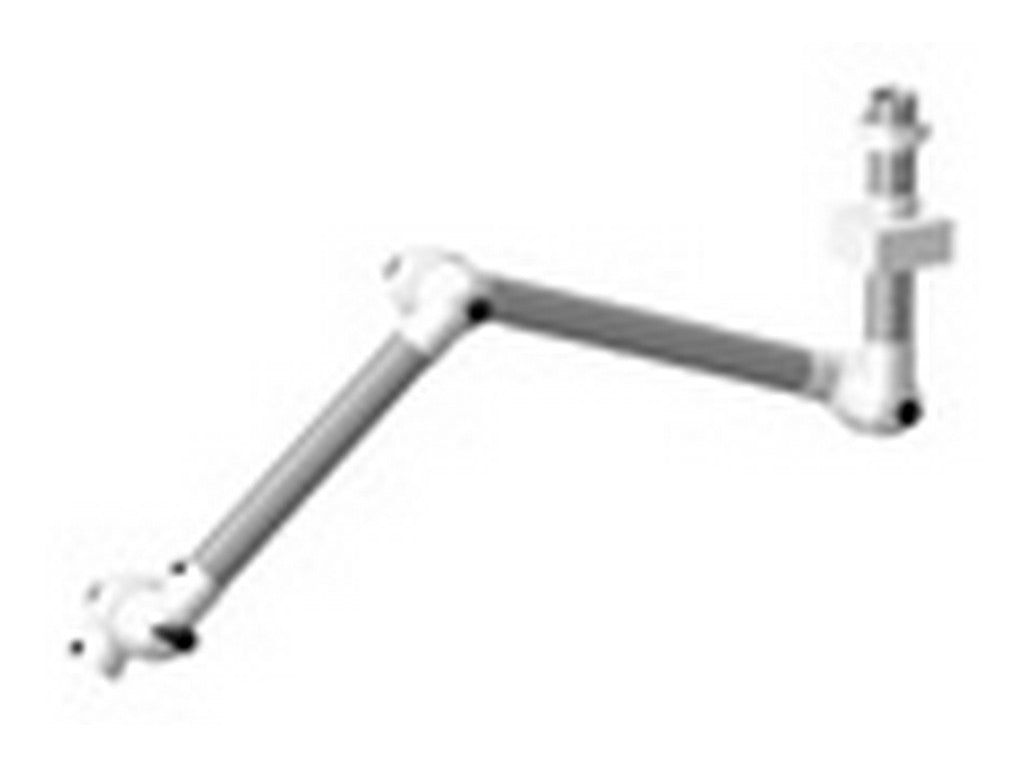

The Alsident System 50 extraction arm with Ø50 mm tube is a wall/ceiling mounted extraction arm with a 3-joint construction and a working radius of 1080 mm (article number 50-5747-3 as the 1080 mm variant). The system is supplied with a recommended airflow of 45–85 m³/h (normal 65 m³/h) and a tube diameter of Ø50 mm. The tubes are made of anodized aluminum, and the joints are made of polypropylene (PP); white color on the joints is indicated by the suffix "-5".Construction and Materials
- Tubes: Anodized aluminum, surface 10 µ (stated in manufacturer documentation).
- Joints: Impact-resistant, chemical-resistant polypropylene (PP); white color for -5.
- All O-rings: Maintenance-free.
- Integrated damper: When open, it is outside the airflow to maintain maximum throughput.
- Through-acid-resistant components: Threads, springs, and thumbscrews in AISI 316L; acid-resistant POP® rivets for increased durability.
- Option for protective mesh at the hood to reduce the risk of foreign objects being drawn in.
- Arm parts can be disassembled without tools for cleaning.
Typical Applications
The Alsident System 50 extraction arm with Ø50 mm tube is designed for local extraction and is supplied as a wall- or ceiling-mounted 3-joint arm with a 1080 mm working radius. The mounting type (wall/ceiling) and the arm's construction are directly evident from the manufacturer's specifications.
Specifications
- Product: Alsident System 50 extraction arm with Ø50 mm tube
- Manufacturer: ALSIDENT
- Article number / model: 50-5747-3 (1080 mm variant); complete reference 50-5747-3-5
- Mounting: Wall/ceiling (3-joint arm)
- Working radius/reach: 1080 mm
- Recommended airflow: 45–85 m³/h (normal 65 m³/h)
- Tube diameter: Ø50 mm
- Tube material: Anodized aluminum (surface 10 µ)
- Joints: Polypropylene (PP), white color with suffix -5
- Operating temperature: −15°C to +90°C
- O-rings: Maintenance-free
- Integrated damper and acid-resistant components (AISI 316L), acid-resistant POP® rivets
- All components RoHS compliant
