Alsident System 50 AS Extraction Arm Model 50-5747-3-6

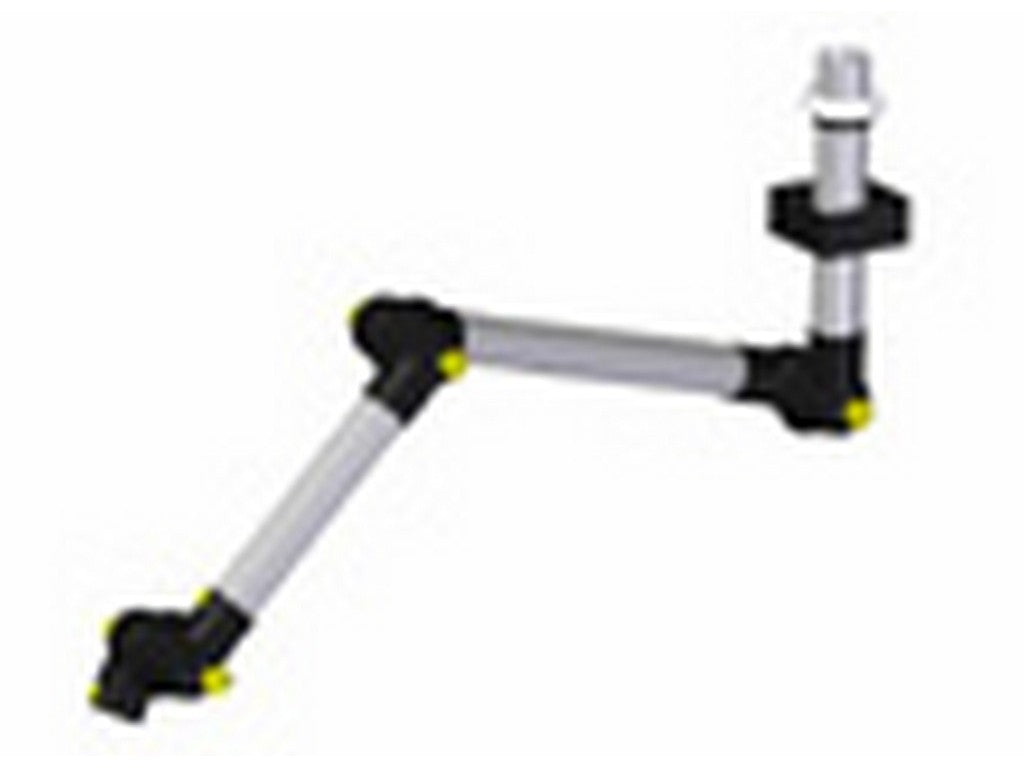

The Alsident System 50 AS extraction arm model 50-5747-3-6 is a three-jointed extraction arm for wall or ceiling mounting. It is used in situations where the extraction needs to be close to the workstation and simultaneously requires an arm that can be flexibly adjusted for the task. With a pipe diameter of Ø50 mm and a recommended airflow of 45–85 m3/h, it is designed for a professional extraction solution where controlled and local extraction is desired.
The arm is constructed with materials that support both conductivity and durability. The pipe is made of chromated TCP aluminum, the joints of conductive polypropylene, the O-rings of conductive polyethylene, and the fastenings are made of AISI 316L stainless steel. It is also worth noting that the arm is approved for use in ESD areas according to IEC 61340-5-1, and it comes with an integrated ground wire with 1 MΩ resistance. This makes it relevant in environments where static electricity needs to be managed in a controlled manner.
The stated reach for the 50-5747-3 variant is 1080 mm, providing an arm that can cover a work area without taking up unnecessary space within the actual work zone. According to the manufacturer, the arm can be disassembled without tools for cleaning, and all arms are equipped with an integrated damper that, when open, allows for maximum airflow.
Typical Applications
The arm is suitable for workstations where extraction needs to be precisely positioned and moved as required, especially in ESD-controlled environments.
Specifications
- Manufacturer: ALSIDENT
- MPN: 50-5747-3-6
- Product: Alsident System 50 AS extraction arm
- Mounting: Wall / Ceiling mounting
- Number of joints: 3
- Pipe diameter: Ø50 mm
- Recommended airflow: 45–85 m3/h
- Reach: 1080 mm
- ESD Approval: IEC 61340-5-1
- Ground wire: Integrated wire with 1 MΩ resistance
- Pipe material: Chromated TCP aluminum
- Joint material: Conductive polypropylene (PP)
- O-rings: Conductive polyethylene (PE)
- Fastenings: AISI 316L stainless steel
- Data sheet: See data sheet from the manufacturer
- Video: Watch product video from the manufacturer
