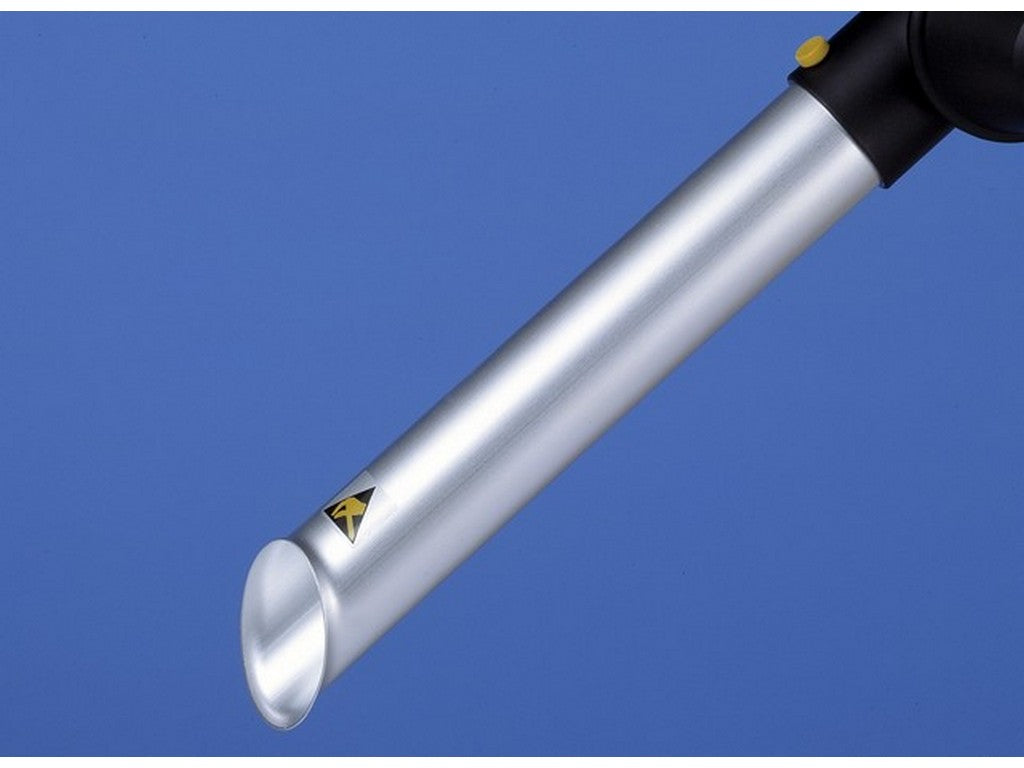

Alsident System 50 Antistatic (AS) extraction nozzle 310 mm
Alsident 1-5031-6 is an extraction nozzle for extracting close to a concentrated source of contamination. It is used when you want to capture smoke, vapor, or particles directly at the source, without tools and work movements getting in the way.
The long 310 mm version provides a little more reach, but still with the fine control typically desired for spot extraction. The funnel shape of the extraction nozzle helps to increase the capture efficiency, and the tube in chromated TCP aluminum is designed to ensure permanent conductivity. This is an important detail in ESD environments where the equipment must be part of an extraction system approved according to IEC 61340-5-1:2016.
Alsident System 50 Antistatic (AS) is also constructed with an earth wire and 1 MΩ resistance on the extraction arms. This means it can be used in professional ESD areas where electrical dissipation and controlled materials are required.
For construction and details, the manufacturer's material can be used as a supplement:
See datasheet from the manufacturer
See product video from the manufacturer
Typical applications
- Spot extraction at concentrated sources of contamination
- Workplaces where the extraction point needs to be placed close to the source
- ESD areas according to IEC 61340-5-1:2016
Specifications
- Manufacturer: ALSIDENT
- MPN: 1-5031-6
- Product: Extraction nozzle
- Series: System 50 Antistatic (AS)
- Length: 310 mm
- Tube material: chromated TCP aluminum
- Funnel for increased capture efficiency
- Approved for ESD areas according to IEC 61340-5-1:2016
- Extraction arms are equipped with an earth wire with 1 MΩ resistance
- Datasheet: https://www.alsident.com/gfx/content_images/licitationstekster%20uk/50%20as%20uk.pdf
- Product video: https://www.youtube.com/embed/bulGClmPXiM
The content is generated using AI - we reserve the right for errors.
