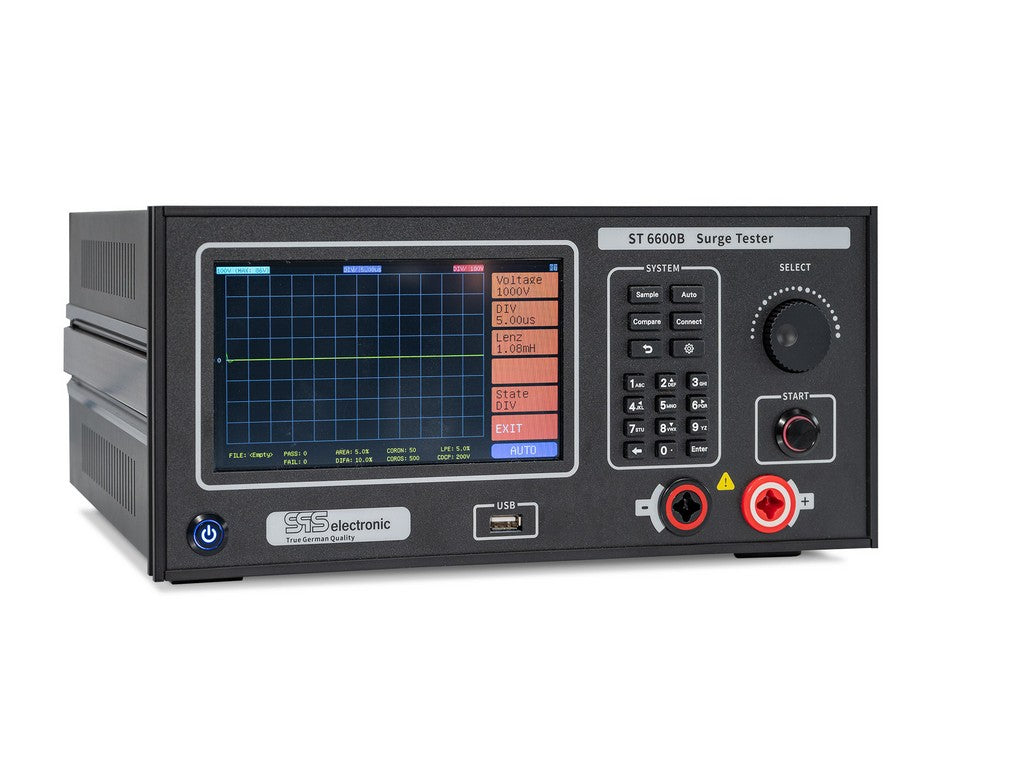

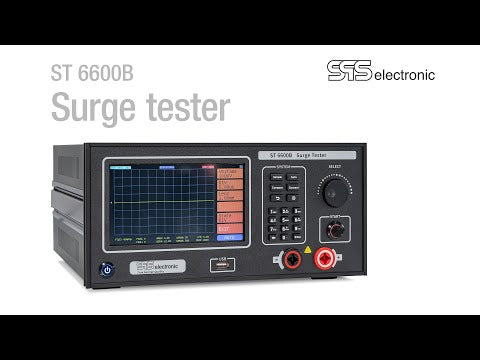

Desktop surge tester ST 6600B from SPS-ELECTR
The ST 6600B is a desktop surge tester from SPS-ELECTR, designed to perform surge voltage tests and partial discharge measurements in the range of 200 VDC to 6,000 VDC. The device measures and evaluates transient events and partial discharge based on several defined evaluation methods and provides unambiguous GOOD/FAIL results.
Technical overview
- Surge voltage range: 200 VDC – 6,000 VDC
- Supports partial discharge measurement in the same voltage range
- Impact energy: max. 0.25 J
- Min. inductance of DUT: > 10 µH
Documentation
For technical details and full specifications, please refer to the manufacturer's datasheet:
See datasheet from the manufacturerTypical applications
The following applications are directly stated in the manufacturer's information and describe purposes for which the ST 6600B is intended:
- Detection of short circuits and insulation faults within a winding
- Testing of coils and windings with inductance from approx. 10 µH and above
- Integration into automatic test systems and production lines via available interfaces
User interface and operation
The ST 6600B features a 7" TFT touch colour display for operation and clearly shows test results. The device has memory for 20 internal test samples with the possibility of unlimited expansion via USB stick. Visual and auditory error messages inform about test status.
Communication and integration
- Interfaces: TCP/IP, USB and RS-232
- Can be used with PC software (referred to as DAT 3805 in the manufacturer's material)
Specifications
- Product: ST 6600B (Desktop surge tester)
- Surge voltage range: 200 VDC – 6,000 VDC
- Partial discharge measurement: 200 VDC – 6,000 VDC
- Impact energy: max. 0.25 J
- Min. DUT inductance: > 10 µH
- Evaluation methods: area comparison; error area comparison; partial discharge (corona) quantity comparison; partial discharge number comparison
- Computer technology: Sampling rate 200 MHz; resolution 12 bit / 5 ns; sampling memory 600 x 12 bit
- Internal memory: 20 test samples (expandable via USB)
- Display: 7" TFT touch colour display
- Interfaces: TCP/IP, USB, RS-232
- Dimensions and weight (stated by manufacturer): H 167 mm, W 340 mm, D 328 mm, weight 6.8 kg
- Mains: 50/60 Hz (115 V / 230 V mentioned in manufacturer's material)
