Forming Pliers 90°

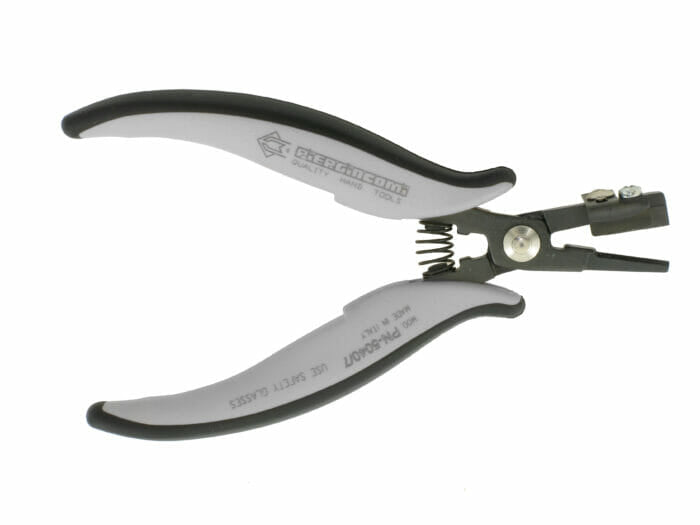

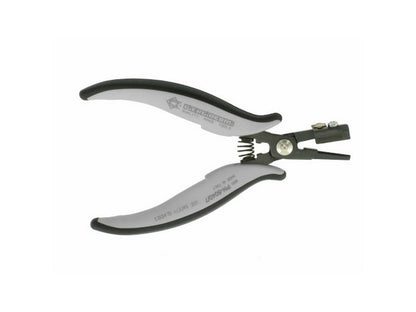

The PN 5040/7D is a 90° forming pliers from PIERGIACOM, designed to bend leads to a precise 90° angle. The tool has a length of 158 mm and a specified forming force of 3 kg. The PN 5040/7D accepts copper wire up to Ø 1.3 mm (16 AWG) and has a steel thickness of 5 mm.
Function and Construction
The pliers mechanically form leads into 90° angles using a built-in adjustable stop function, which allows setting the forming distance. The maximum forming width is 16 mm. The handles are ESD-safe and come in Grip model St. The product's dimensions and mechanical data such as length, forming force, and maximum lead diameter are specified by the manufacturer.
Typical Applications
The following applications are specified by the manufacturer and describe where the tool is suitable:
- Bending leads to a 90° form.
- Forming leads for component types such as TO220 and TO247.
- Repetitive forming with precise distance adjustment using the adjustable stop.
Specifications
- Order code: PN 5040/7D.
- Length: 158 mm.
- Forming force: 3 kg.
- Copper wire (max): Ø 1.3 mm (16 AWG).
- Forming: 90° angle.
- Adjustable stop for forming distance.
- Max. forming width: 16 mm.
- Suitable for TO220 and TO247 components.
- Steel thickness: 5 mm.
- ESD-safe handles, Grip model St.
