Product Overview

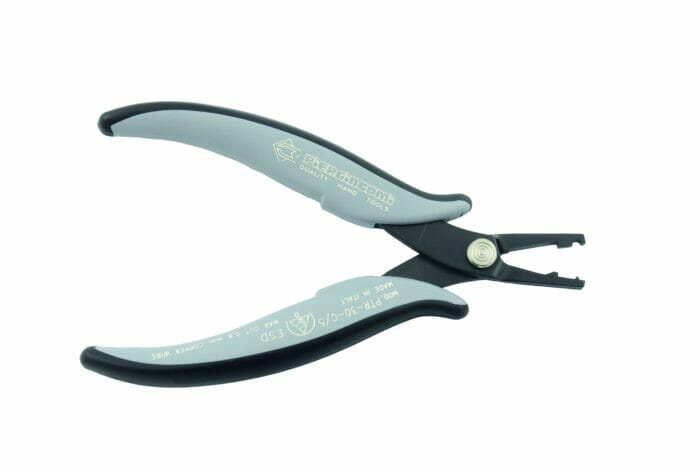

This forming plier, PTR 30 C/5 D from PIERGIACOM, is designed to form component leads into a C-shape while simultaneously shortening the remaining part. The PTR 30 C/5 D performs two functions in one tool: precise bending into a C-shape and cutting off excess leads to leave a residual length of 4 mm.Technical Description
- Shape: C-shaped bending of component leads.
- Shortening: Leaves a residual length of 4 mm.
- Steel thickness: 3 mm.
- Total length: 150 mm.
- Maximum copper wire diameter: 0.8 mm (20 AWG).
- Forming force: 3 kg.
- Handles: ESD-safe; grip model St.
Typical Applications
The PTR 30 C/5 D is used to form component leads into a C-shape and simultaneously shorten the excess lead, so that the remaining lead length is 4 mm. This functionality is directly evident from the manufacturer's product description and specified data.Key Features
- Integrated forming and shortening: reduces the need for a separate cutting tool.
- Wire diameter and forming force specifications provided by the manufacturer ensure consistency between tool and component leads.
- ESD-safe handles as indicated in the manufacturer's material.
Specifications
- Product Name: PTR 30 C/5 D.
- Manufacturer: PIERGIACOM.
- Total length: 150 mm.
- Steel thickness: 3 mm.
- Residual length after shortening: 4 mm.
- Max copper wire diameter: 0.8 mm (20 AWG).
- Forming force: 3 kg.
- Handles: ESD-safe; grip model St.
