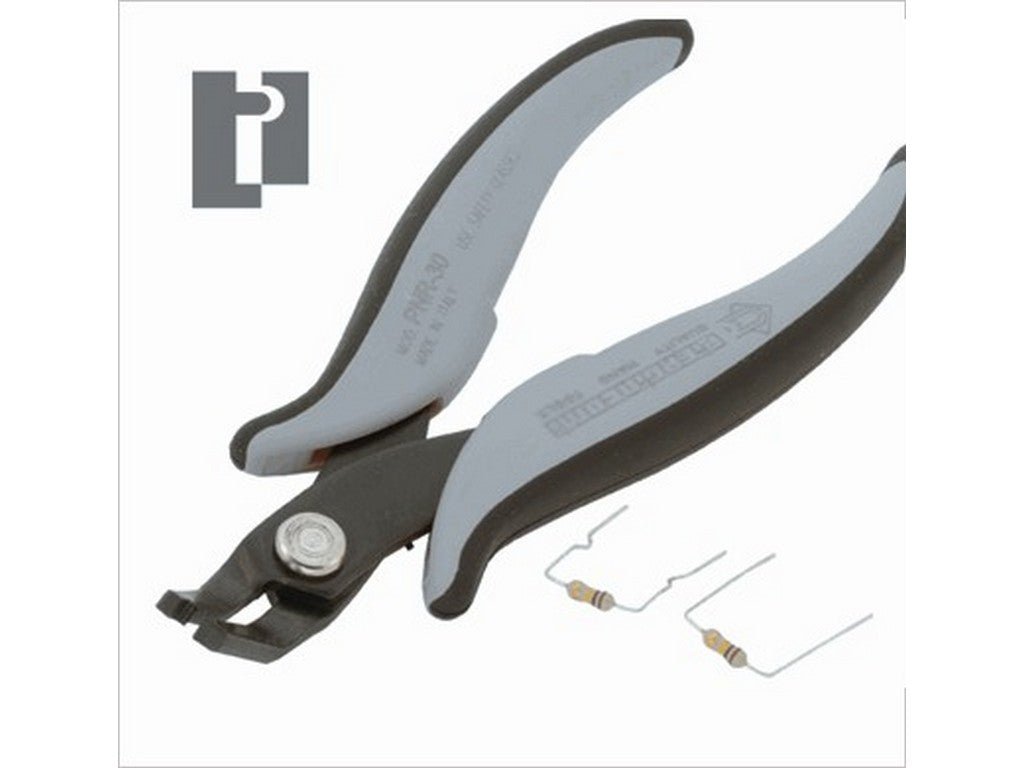

C-shaped lead bending pliers — PNR 30 D
The PNR 30 D is a C-shaped lead forming tool from PIERGIACOM (order code PNR 30 D). The tool is designed for precise forming of leads and component legs with a C-shaped pressure point; the tips are bent at a 45° angle as specified by the manufacturer.
Description and function
The PNR 30 D performs mechanical forming of leads at the predefined C-shaped area. Material and design information from the manufacturer indicates the following key features:
- Tips bent at 45°.
- Steel construction with a plate thickness of 3 mm.
- Tool length 145 mm.
- Forming force 3 kg.
- Specified for copper wire up to Ø 0.8 mm (20 AWG).
- Handles are ESD-safe with St-grip model.
Practical application
The product designation and manufacturer's information describe the PNR 30 D as a tool for C-shaped forming of leads/component legs. The description of material thickness, forming force, and maximum wire diameter provides concrete limitations for the type of copper wire the PNR 30 D is specified to work with, as indicated by the manufacturer.
The information in this description comes directly from PIERGIACOM's product data for the PNR 30 D and reproduces the technical parameters and handle design listed by the manufacturer.
Specifications
- Product name: PNR 30 D (order code PNR 30 D).
- Length: 145 mm.
- Steel thickness: 3 mm.
- Forming force: 3 kg.
- Copper wire: max. Ø 0.8 mm (20 AWG).
- Tips: bent 45°.
- Handles: ESD-safe, St-grip model.
