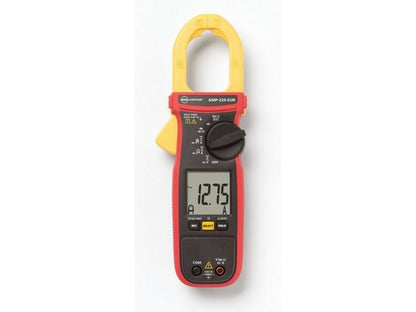

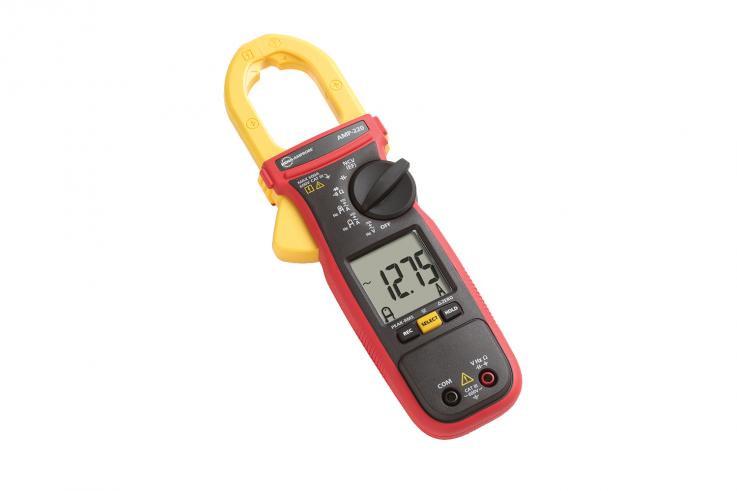

TRMS Clamp Meter: AMP-220-EUR
Overview
The AMP-220-EUR (art. no. 4560596) from AMPROBE is a True-RMS clamp meter designed for measuring both AC and DC. The instrument offers current and voltage measurement with features aimed at accurate readings for distorted signals and variable frequency drives.Technical Features
- True-RMS measurement for accurate readings on non-sinusoidal signals
- Amp-Tip function for precise low current measurement down to 0.1 A
- Low-pass filter for measurements on variable frequency drives
- Non-contact voltage detection (NCV)
- Data Hold as well as MIN/MAX/AVG recording
- Auto-ranging and Relative Zero
- Audible continuity and diode test
Typical Applications
- Measurement of current, voltage, and frequency on electrical systems with distorted or non-sinusoidal signals (True-RMS).
- Measurement of current and voltage on variable frequency drives using a low-pass filter to avoid erroneous readings.
- Capacitance measurement for start and run capacitors.
- Resistance and continuity test for verifying electrical connections and checking motor and transformer windings.
Documentation
See datasheet from the manufacturer
Specifications
- Product: AMP-220-EUR (art. no. 4560596)
- Manufacturer: AMPROBE
- Function: TRMS Clamp Meter (AC/DC)
- AC/DC current: up to 600 A
- AC/DC voltage: up to 600 V
- Amp-Tip low current function: down to 0.1 A
- Capacitance: up to 2500 µF
- Frequency range: 5.00 to 999.9 Hz
- Jaw opening: 35 mm
- Functions: non-contact voltage, resistance, continuity, diode test, data hold, MIN/MAX/AVG, auto-ranging, relative zero
- Safety classification: CAT III 600 V
