ESD Tape Dispenser
Product Overview

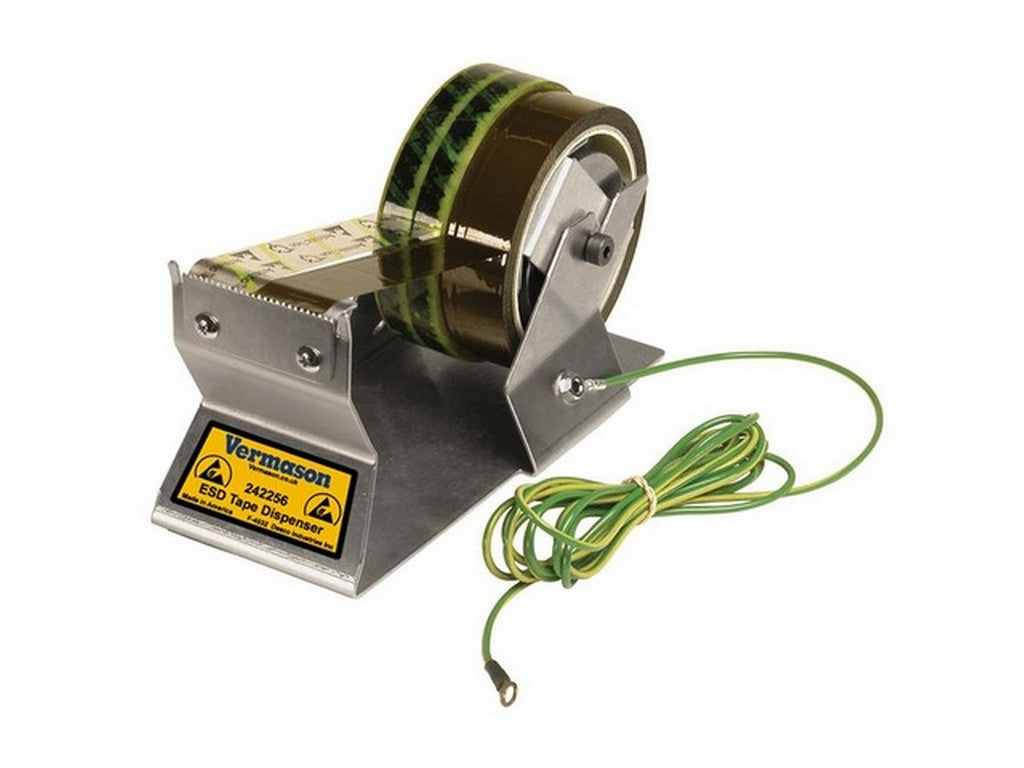

This ESD tape dispenser from DESCO, model DESCO 242256, is designed for dispensing ESD tape on a standard 76 mm (3") core. The unit features a groundable stainless steel housing and hardware, as well as a built-in grounding jack for connecting an operator or common ground. The DESCO 242256 has two separate spools that rotate independently and a heavy-weighted design intended for one-handed operation. The product documentation is dated January 2018.Documentation
Technical information and dimensions can be found in the manufacturer's technical drawing and datasheet. See datasheet from the manufacturer
Typical Applications
- Dispenses up to one 50 mm wide roll of ESD tape (or two rolls up to 25 mm each) on a standard 76 mm core.
- Application where dispenser components must be connectable to ground via a grounding jack or through the work surface for use in ESD protected areas (ref. manufacturer's documentation).
Functional Details
- Stainless steel housing and hardware, which simplifies cleaning and minimizes contaminants according to the manufacturer.
- Two independent spools, allowing simultaneous mounting of one 50 mm roll or two 25 mm rolls.
- Heavy-weighted design for stability and one-handed operation.
- Built-in grounding jack for connecting a wrist strap or common ground.
Specifications
- Manufacturer: DESCO
- Model/Part number: 242256
- Type: ESD tape dispenser
- Roll capacity: Up to one 50 mm wide roll or two rolls up to 25 mm each
- Core: Standard 76 mm (3")
- Housing material: Stainless steel
- Grounding option: Included grounding jack; housing and hardware can be grounded
- Design: Two separate spools, heavy-weighted for one-handed use
- Dimensions (supplier specification): H 108 mm, W 94 mm, L 203 mm
- Country of manufacture: United States of America
- Datasheet/date: Technical drawing/datasheet, January 2018
