Product Overview

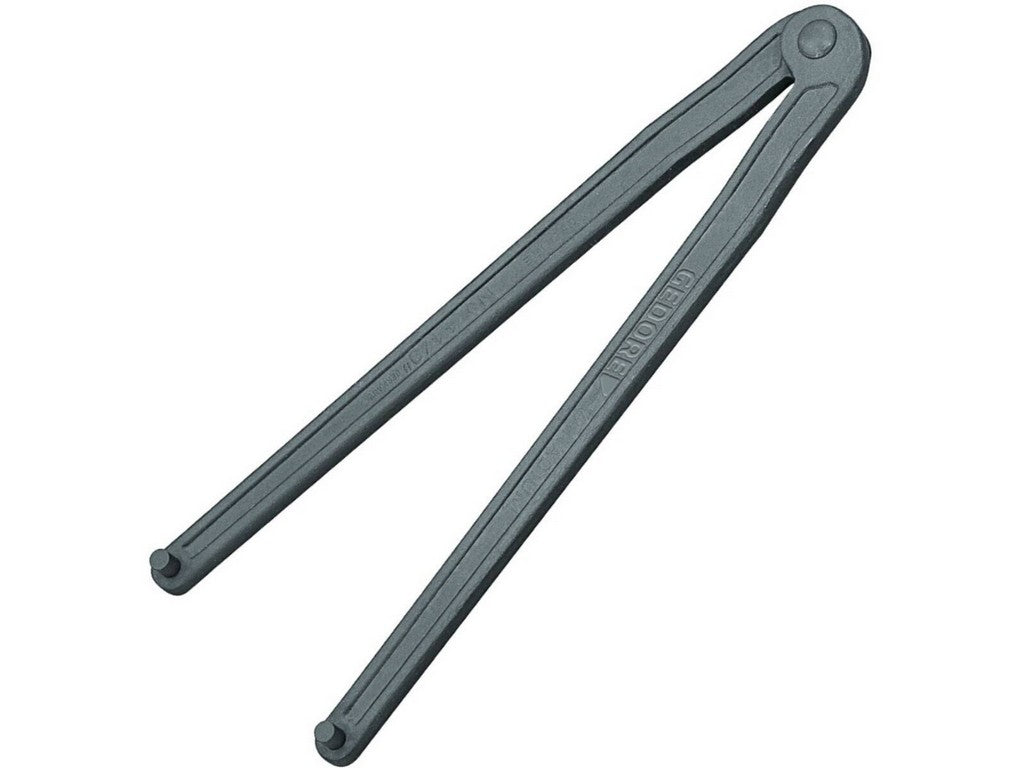

GEDORE 44 4 (code no. 6354560) is a two-hole caliper face spanner, adjustable for bore Ø 4 mm. This tool is specified by the manufacturer as similar to DIN 3116 and is designed to grip two holes via two pins. The product name GEDORE 44 4 is mentioned in the manufacturer's product information and in the product's technical specifications.Material and Surface
The tool is made of vanadium steel 31CrV3 and has a manganese-phosphated surface treatment. These details are provided directly by the manufacturer and indicate the choice of material and surface finish.Dimensions and Mechanical Measurements

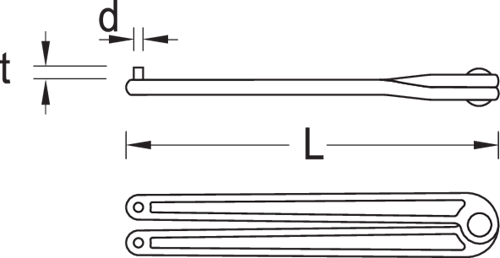

Technical dimensions, documented by the manufacturer, include bore Ø 4 mm as well as pin width/diameter 3.8 mm and pin height 5.0 mm. The total length is stated as 178 mm (7") and the weight as 0.151 kg.Further product identification: manufacturer's part number 6354560 and EAN 4010886635452 appear on the manufacturer's page.
Reference to the manufacturer's official product page: Manufacturer's product page.
Specifications
- Product name: GEDORE 44 4 (code no. 6354560)
- Type: Two-hole caliper face spanner, adjustable for bore Ø 4 mm
- Material: Vanadium steel 31CrV3
- Surface: Manganese-phosphated
- Bore Ø: 4 mm
- Pin width/diameter: 3.8 mm
- Pin height: 5.0 mm
- Total length: 178 mm (7")
- Weight: 0.151 kg
- Standard indication: Similar to DIN 3116
- EAN: 4010886635452
- Manufacturer part number: 6354560
