Type-K Thermocouple Air Temperature Probe from Fluke
This Type-K thermocouple air temperature probe, Fluke 80PK-24 (Part#: 2098691), is designed for measuring temperature in air and gas. The description and technical data are taken from the manufacturer's instruction sheet and data sheet.
General Description

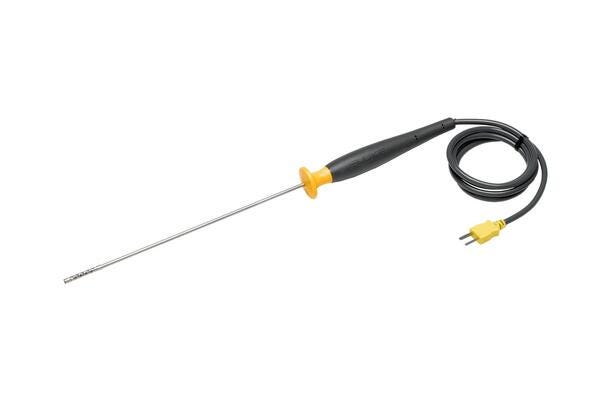

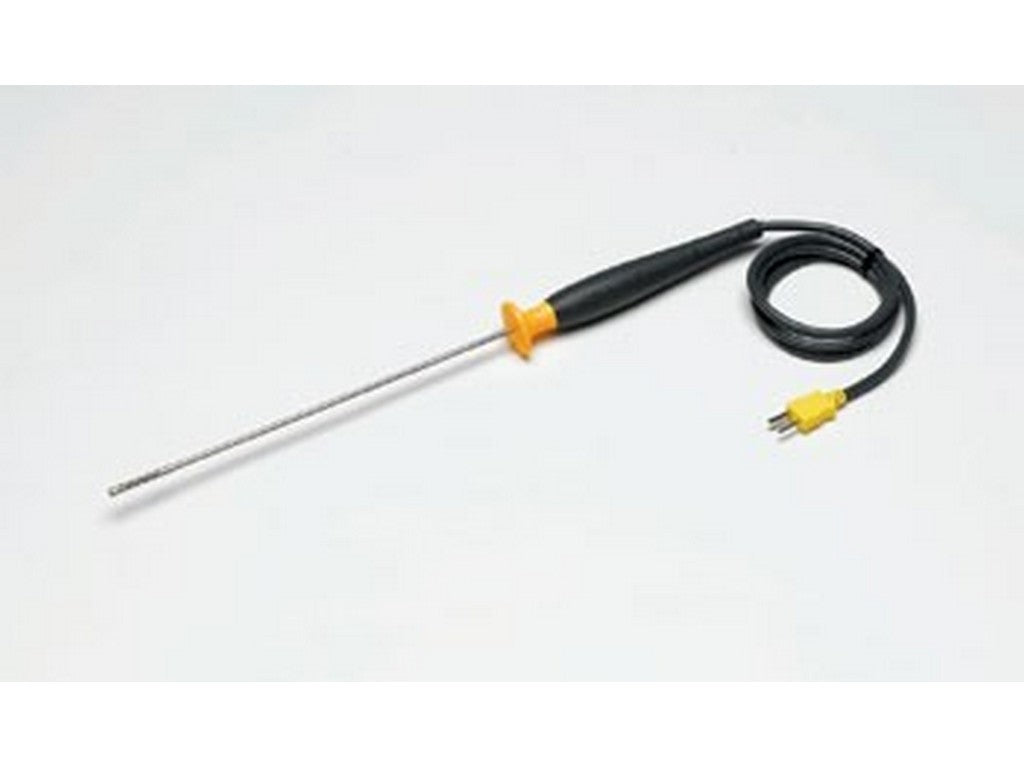

The Fluke 80PK-24 is an air temperature probe with a measuring tip protected by a perforated 304 stainless steel baffle and a 304 stainless steel sheath. The probe has a 1-meter (38 inches) cable terminating in a miniature Type K thermocouple connector with 0.792 mm pin spacing. The manufacturer provides an instruction sheet, and the product comes with a one-year limited warranty.
Documentation
Typical Applications
- Measuring temperature in air or gases (as stated in the manufacturer's instruction sheet).
Notes on Use
The probe should only be used with temperature meters that accept Type K thermocouples, miniature thermocouple connectors, and have cold junction compensation. Avoid exposing the baffle and sheath to halides or sulfides; immersion in liquid and use in reducing atmospheres or vacuum are not recommended. The maximum continuous temperature at the tip is 816 °C, while the maximum handle temperature is 125 °C.
Specifications
- Product: Fluke 80PK-24 (Part#: 2098691)
- Type: K Standard Grade (Ni-Cr vs Ni-Al)
- Measurement Range: -40 °C to 816 °C
- Accuracy: ±2.2 °C from -40 °C to 293 °C; ±0.75 % from 293 °C to 816 °C (according to ANSI MC96.1-1982 limits)
- Seebeck coefficient @25 °C: 40.50 μV/°C
- Response Time (time constant): 3.0 s in 100 °C air at 3.33 m/s
- Max allowed voltage: 24 V ac rms or 60 V dc
- Baffle: 304 stainless steel, Ø 3.81 mm, length 3.3 cm
- Sheath: 304 stainless steel, Ø 3.175 mm, length 215.9 mm from handle to baffle
- Junction: welded to sheath (grounded)
- Cable: 38 inches (1 meter), PVC insulation, max. 105 °C
- Conductors: Type K, AWG #24, stranded
- Handle: Hytrel, max. 125 °C
- Connector: Mini thermocouple connector, 0.792 mm pin spacing, yellow Hytrel, max. 125 °C
- Overall length: 31.9 cm from baffle tip to cable strain relief
- Protection Class: Class 3 (in relation to isolation and grounding, defined in IEC 348)
- Documentation: Instruction sheet from Fluke; 1-year limited warranty
