Type-K Thermocouple Probe: Fluke 80PK-1 (750422)

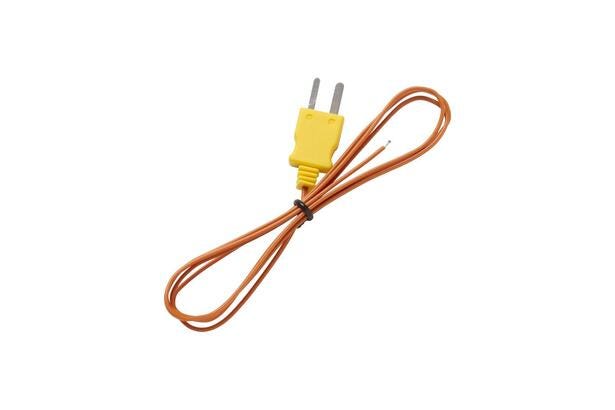

The Fluke 80PK-1 (Part#: 750422) is a Type-K beaded thermocouple probe designed for general purpose temperature measurements. The product offers a fast response due to its exposed, low-mass beaded tip and features a Teflon-insulated lead and a miniature Type-K connector.
Technical Overview
- Type: K, Special Grade (Chromel vs Alumel)

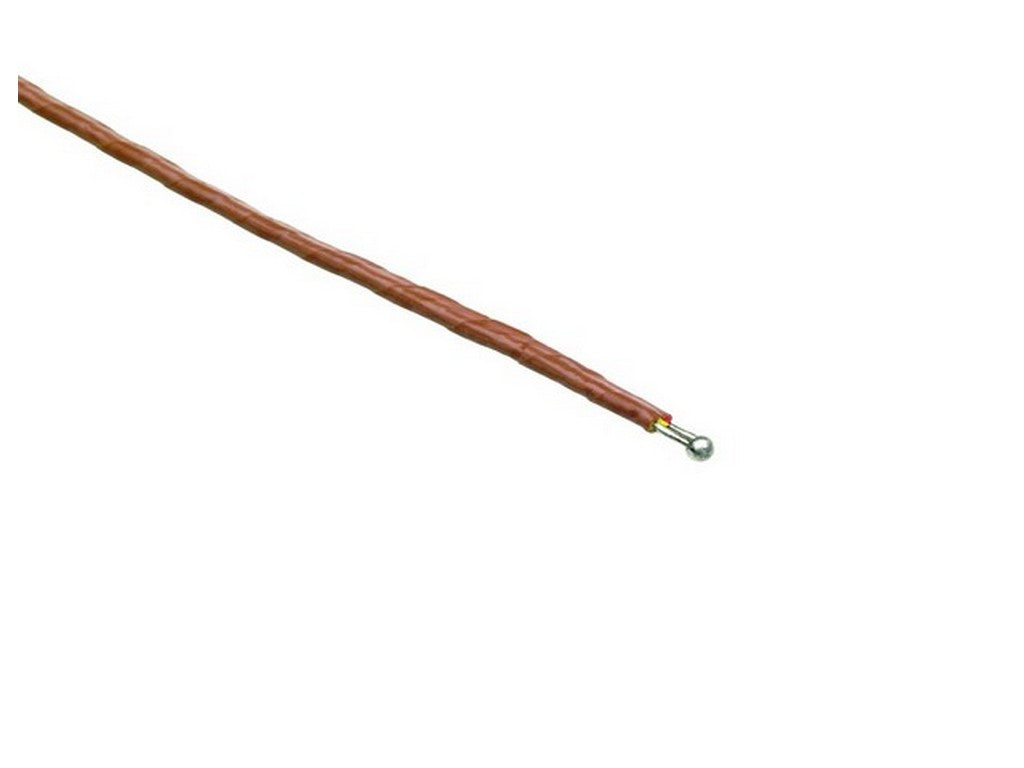

- Beaded Tip: 0.04 inch
- Lead Insulation: Teflon
- Miniature Connector: yellow, Type-K with 0.312-inch pin spacing
For safe operation, the probe must not be used where voltages exceed 24 V AC RMS or 60 V DC. The Teflon cable is not suitable for immersion in liquids, and at temperatures above 260 °C, Teflon can release toxic fumes (refer to manufacturer's instructions).
Typical Applications
The Fluke 80PK-1 is used for general purpose temperature measurements with Type-K thermocouples and is intended for instruments that accept miniature Type-K connectors and have cold junction compensation. Its fast response time makes it suitable for applications where quick measurement of surface temperature is required.
Documentation
Detailed technical and safety information can be found in the manufacturer's instruction sheet and data sheet. For full specifications and warnings, please refer to the manufacturer's documentation:
Specifications
- Product Name: Fluke 80PK-1 (Part#: 750422)
- Type: K Special Grade (Chromel vs Alumel)
- Measurement Range (continuous): -40 °C to 260 °C (-40 °F to 500 °F)
- Accuracy: ±1.1 °C above 0 °C to 260 °C (typical within 1.1 °C above -40 °C to 0 °C)
- Time Constant (measurement): 2 seconds (in air at room temperature and 1 atm, air movement 65 ft/s)
- Bead Diameter: 0.04 inch
- Cable: 40 inches (1 meter) Teflon-insulated; conductors: Type K, AWG #24 solid
- Connector: Yellow mini-thermocouple connector, 0.312-inch pin spacing; material: Hytrel; max temperature 200 °C
- Max Voltage for Safe Operation: 24 V AC RMS or 60 V DC
- Max Temperature at Bead: 260 °C (500 °F)
- Polarity Color Codes: Chromel (+) yellow; Alumel (-) red; outer jacket: black
- Protection Class: Class 3 (in relation to insulation and grounding properties defined in IEC 348)
Source: Fluke instruction sheet and datasheet for 80PK-1 (Part#: 750422).
