Product Overview

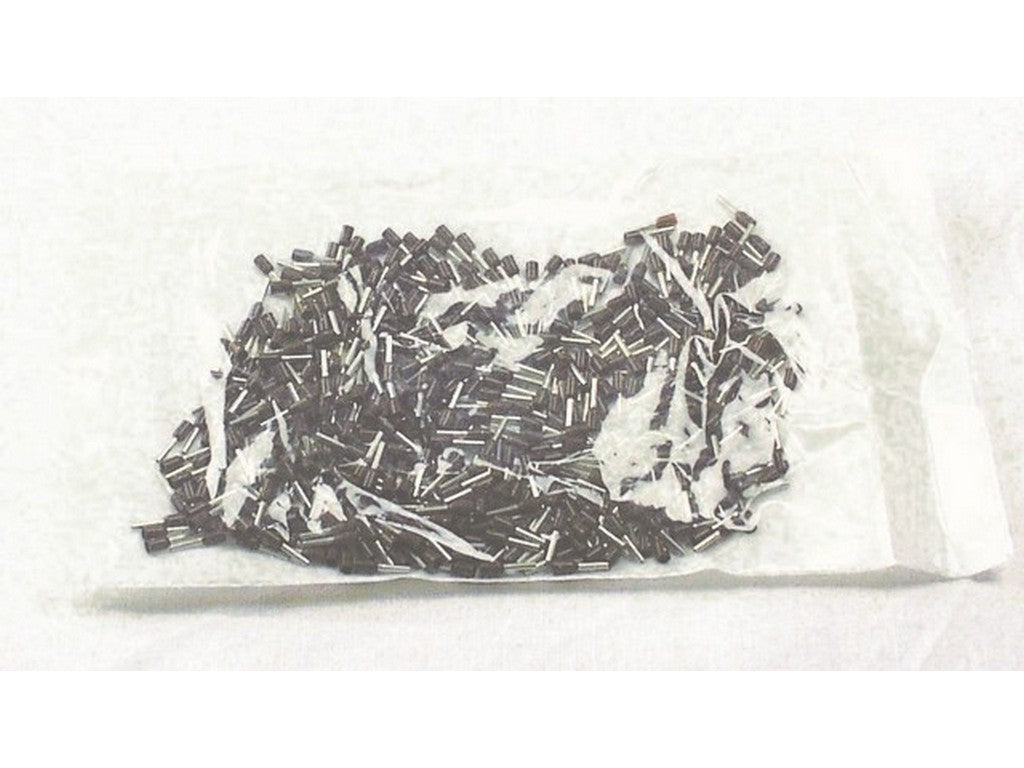

This is an insulated wire end sleeve: Wire End Sleeve (Insulated) 0.14 mm², 6 mm, Brown (GLW 005548). The product is a short, insulated ferrule designed to gather and protect stripped, stranded conductors before crimping or insertion into terminals.
Description and Function
Wire End Sleeve (Insulated) 0.14 mm², 6 mm, Brown (GLW 005548) consists of a copper tube with injection-molded polypropylene insulation. The copper tube has a tin coating on its surface. The insulated sleeve holds the strands of the single conductor together, simplifies insertion into terminals, and reduces the risk of fraying under mechanical stress.
Material and Construction
- Copper tube with tin coating (electrical contact surface)
- Insulated collar made of polypropylene
- Nominal tube length 6 mm
Typical Applications
- Secure connections in switchboards and distribution units
- Electrical installations in buildings
- Machine and plant construction for protecting stranded conductor ends
The packaging comes in bags of 500 pcs. (GLW article code 005548 BN). The product is listed in GLW's official Wire End Sleeve brochure and is specified with a maximum temperature of 105 °C.
See datasheet from the manufacturer
Specifications
- Manufacturer: GLW
- Manufacturer article number: 005548
- Conductor cross-section: 0.14 mm²
- Nominal tube length: 6 mm
- Color: Brown (BN)
- Packaging: Bag of 500 pcs. (GLW 005548 BN)
- Material: Copper tube with polypropylene insulation
- Surface: Tin-plated
- Max. temperature: 105 °C
