Insulated Ferrule for 1.5 mm² (GLW 005780)

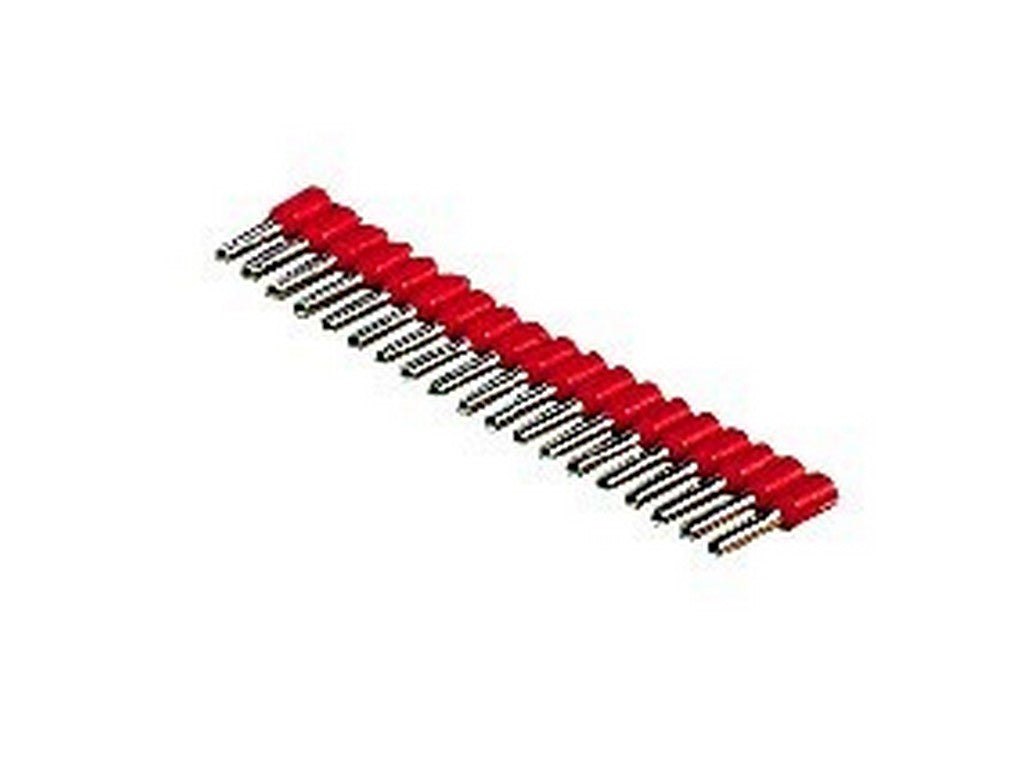

The product is an insulated ferrule in strip form, designed for 1.5 mm² conductors. The ferrule is identified by the manufacturer as GLW article number 005780 and has red colour coding (RD). The strip form indicates that the ferrules are designed for automatic or semi-automatic processing using tape-based processing systems.
Description and Function
The ferrule consists of a copper tube with a tinned surface and an insulating collar made of polypropylene. The length of the tube is specified as 8 mm (AWG 16 in the manufacturer's table). The material composition and tinned surface are detailed in the manufacturer's prospectus. The maximum temperature for the material is stated as 105°C in the product information.
- Type: Insulated ferrule in strip form
- Conductor size: 1.5 mm²
- Tube length: 8 mm (AWG 16 specified by GLW)
- Colour: RD (red)
Application and Processing
The manufacturer's documentation describes the use of insulated ferrules for connecting stranded conductors, protecting against splaying, and improving insertion into screw or spring terminals. The strip form and packaging on tape (10 x 50 = 500 pcs.) are specifically mentioned, making the product suitable for automated crimping processes and higher throughput in production lines.
The workflow, as mentioned by the manufacturer, involves inserting the stripped conductor into the ferrule followed by crimping to achieve a mechanical and electrical connection. The polypropylene-insulated collar simultaneously serves as colour coding and assists with insertion.
Specifications
- Manufacturer: GLW
- Product number: 005780
- Type: Insulated ferrule in strip form
- Conductor cross-section: 1.5 mm²
- Tube length: 8 mm (AWG 16 specified by manufacturer)
- Colour code: RD (red)
- Material: Copper with polypropylene insulation, tinned surface
- Max. temperature: 105°C
- Packaging: 10 x 50 (500 pcs.) on tape
