Product Overview

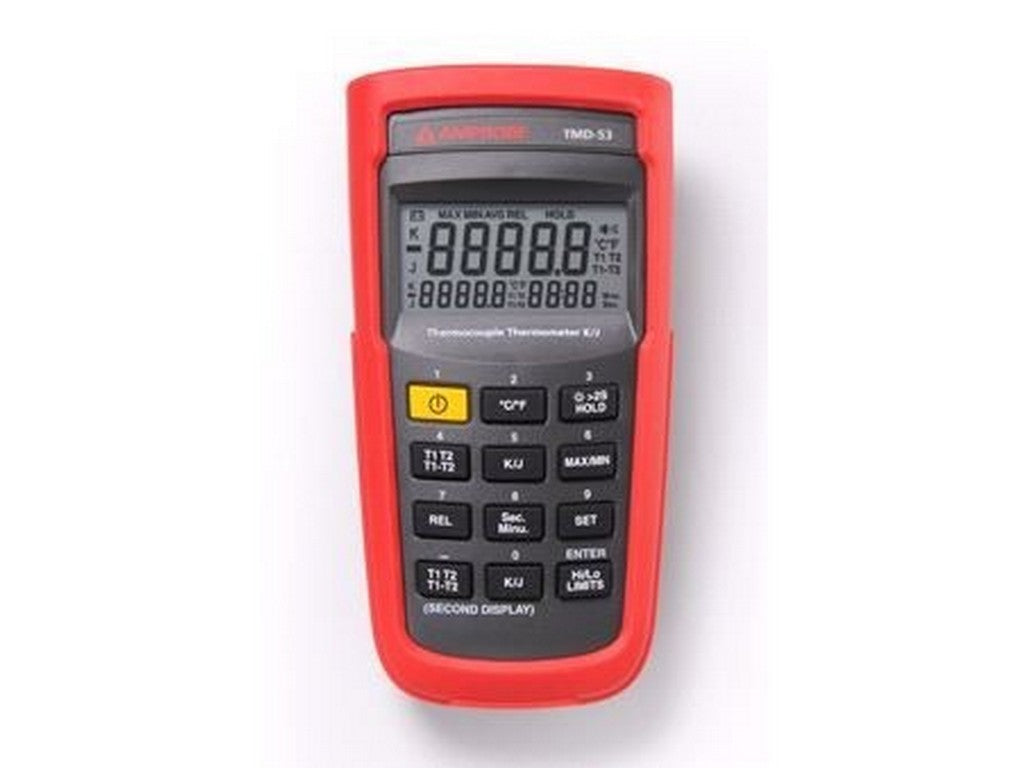

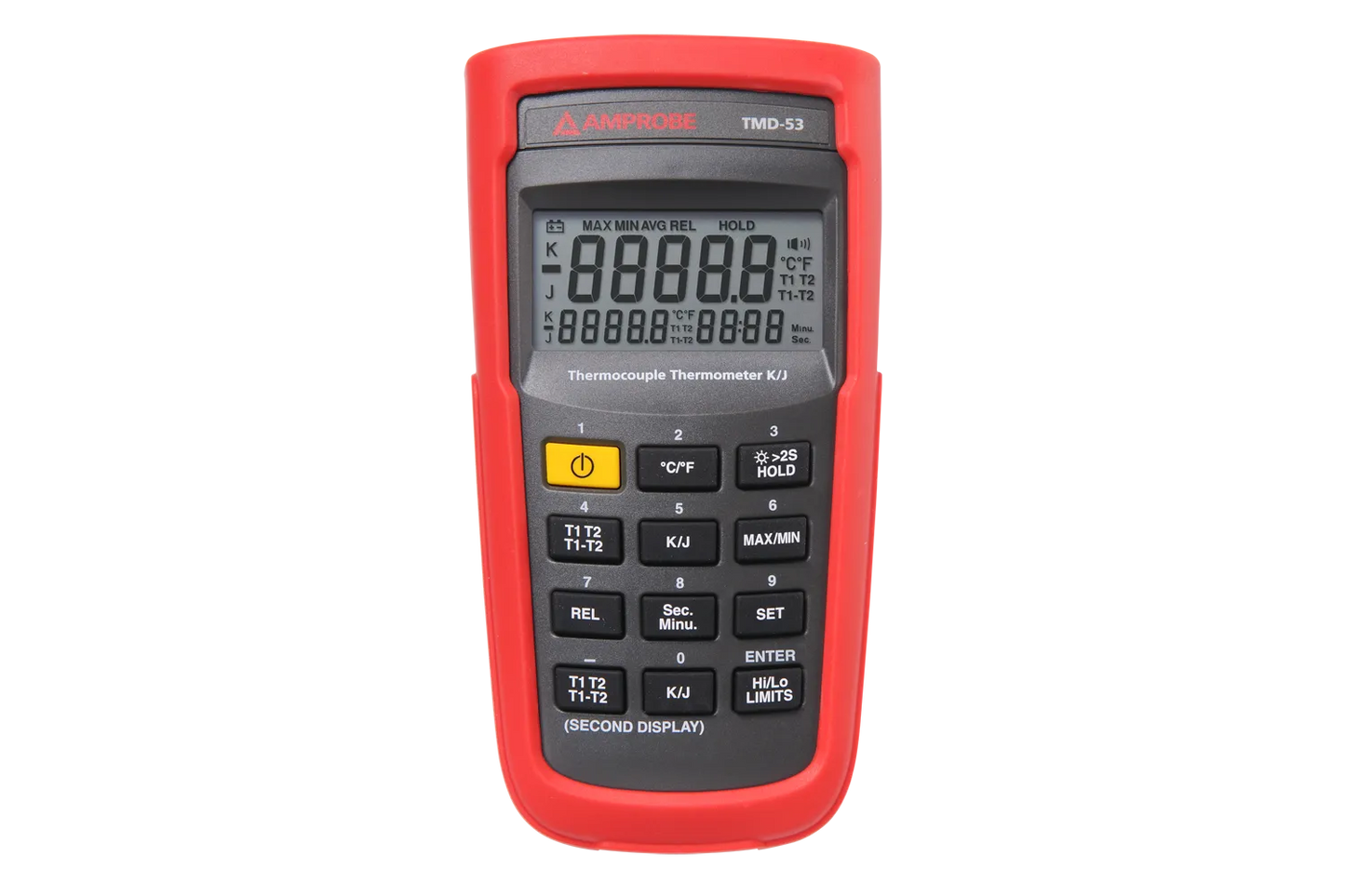

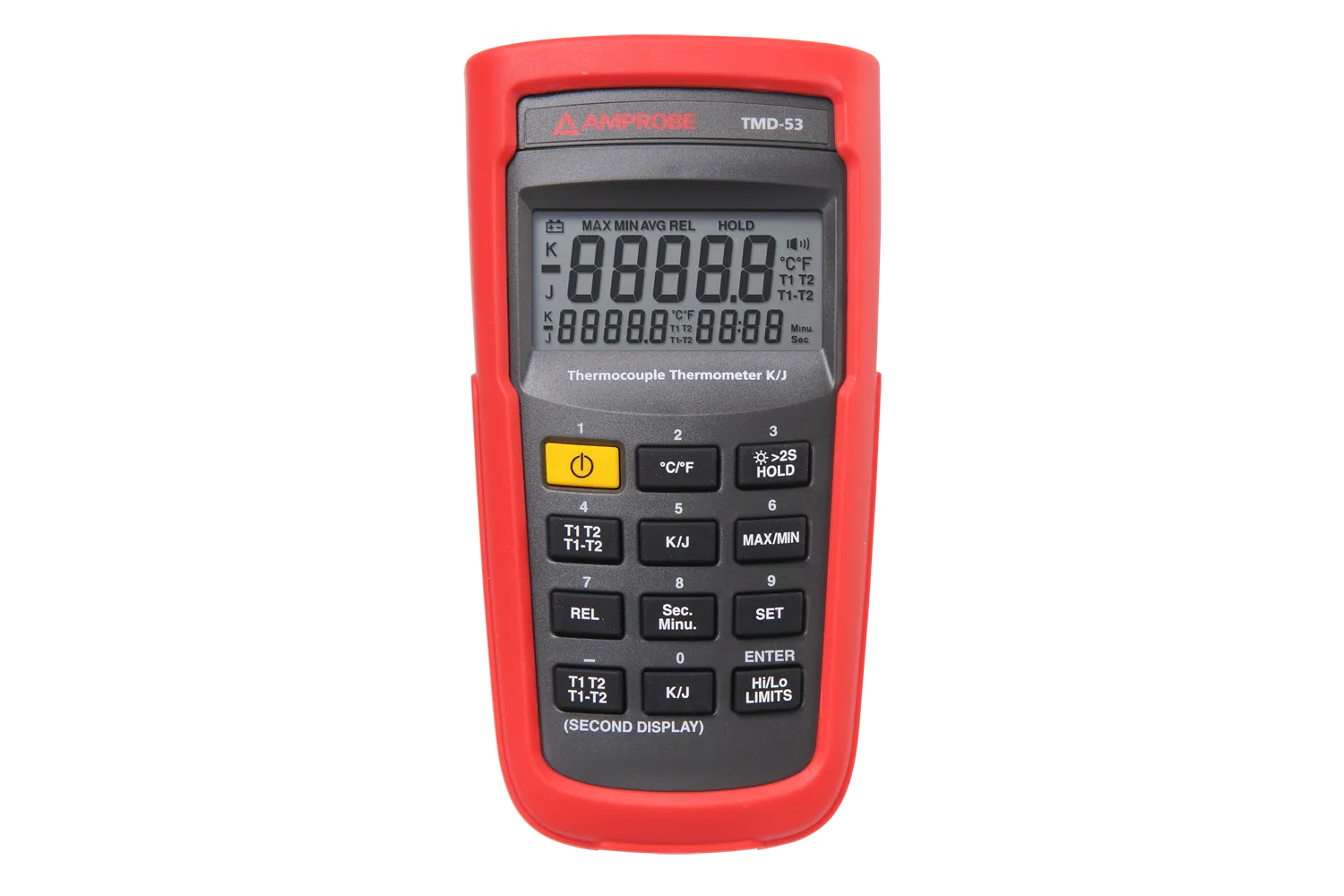

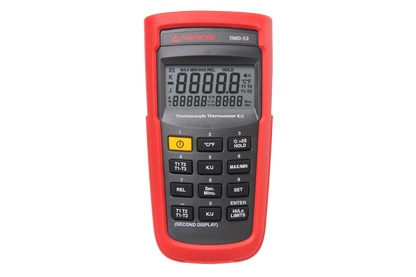

This Amprobe TMD-53 thermocouple thermometer from AMPROBE is a dual-input thermocouple thermometer designed for measuring temperatures with K- and J-type thermocouples. The Amprobe TMD-53 displays T1, T2, and T1-T2 (temperature difference) and offers a set of functions for precise monitoring of temperature measurements.Features
- Dual-input for simultaneous measurement of two thermocouples (T1 and T2) and calculation of T1-T2.
- Supported thermocouple types: K and J.
- Measurement functions: MAX/MIN with elapsed time, AVG, REL, HOLD, and built-in timer.
- User-selectable display °C/°F and resolution 0.1°C (0.2°F).
- Measurement rate: one sample per second.
Documentation
For complete technical data and detailed information, please refer to the official datasheet:
View datasheet from manufacturer
Typical Applications
- Chosen by HVAC/R technicians for super-heat and sub-cool temperature measurement (specified by manufacturer).
- Application for cut-out and cut-in temperature measurements (specified by manufacturer).
- Use in electrical tasks as well as in research, industrial processes, and quality control, as mentioned in the manufacturer's documentation.
Specifications
- Product: Amprobe TMD-53 (SKU 3730085)
- Manufacturer: AMPROBE
- Thermocouple types: K, J
- Temperature range K-type: -200°C to 1370°C
- Temperature range J-type: -200°C to 1050°C
- Resolution: 0.1°C (0.2°F)
- Measurement rate: 1 reading per second
- Accuracy: ±(0.05%rdg + 0.3°C) at -50°C to 1370°C (specified in datasheet)
- Display: 5-digit LCD
- Functions: MAX/MIN, AVG, REL, HOLD, timer, Hi/Lo alarm with warning buzzer
- Power supply: 4 x 1.5V AAA batteries (included)

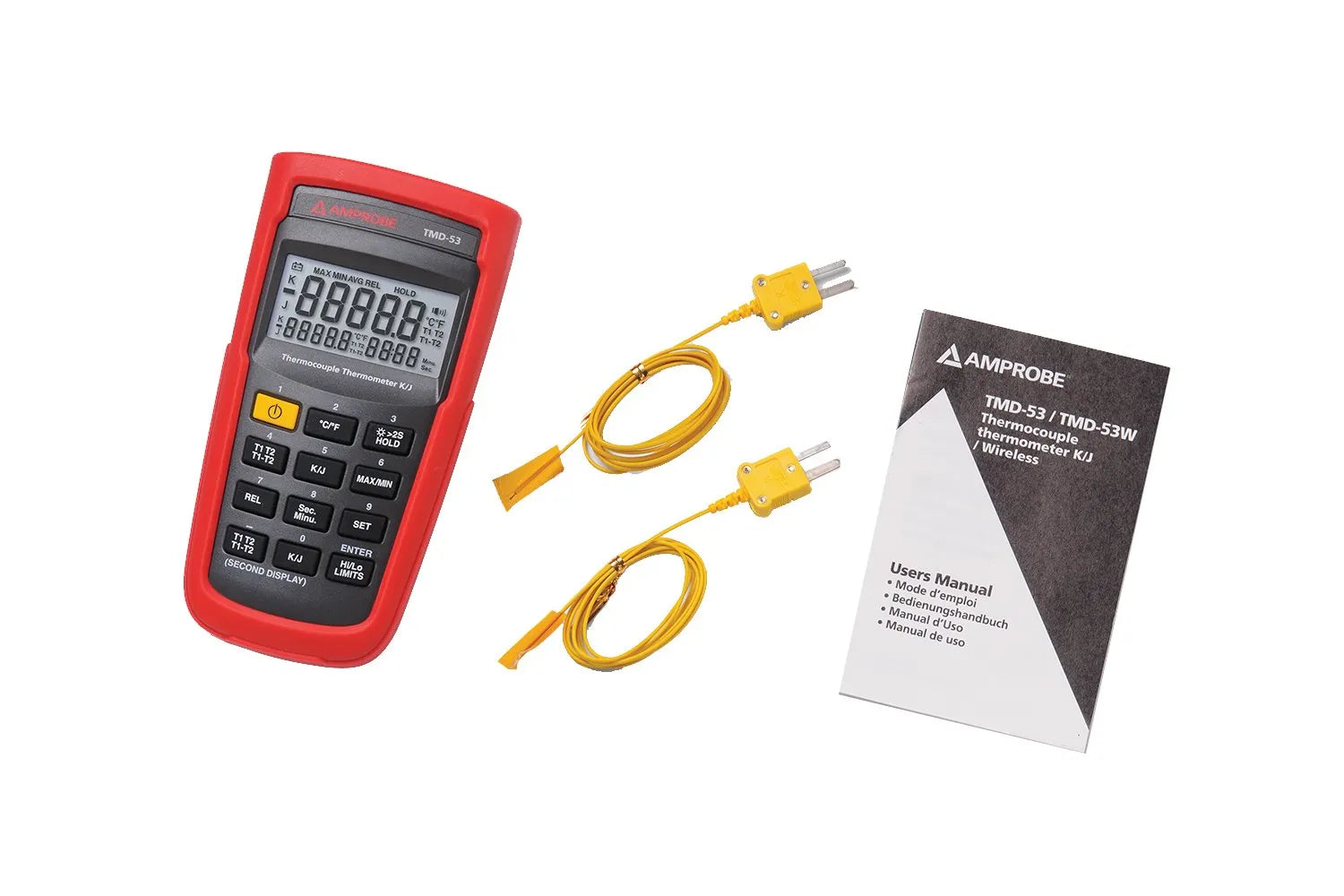

- Included accessories: 2 x K-type thermocouples and 4 x AAA batteries
- Operating environment: 0°C to 50°C, <80% R.H. (specified in datasheet)
- Storage: -20°C to 60°C with batteries removed (specified in datasheet)
