Test leads SLK-4 — test leads from STAUBLI
Product overview

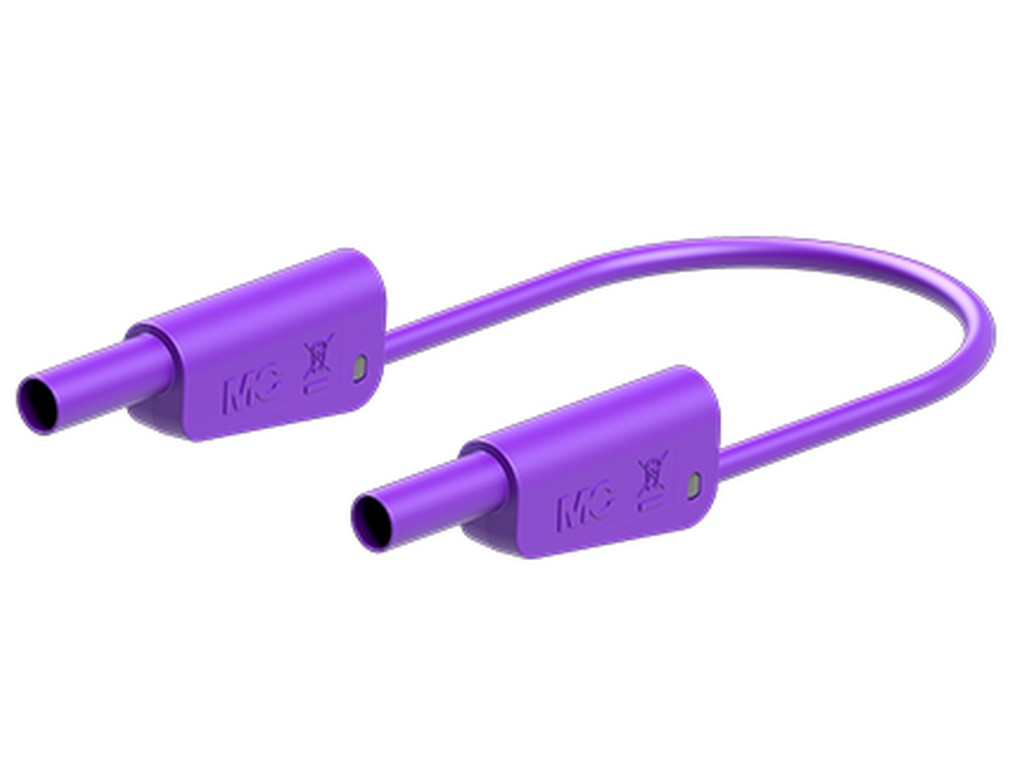

Test leads SLK-4 are test leads from STAUBLI with high flexibility and a choice of PVC or silicone insulation. Test leads SLK-4 use stackable Ø 4 mm MULTILAM connectors with a rigid insulating sleeve at both ends. The SLK-4N-S10 type (order number 66.2012-*) is specified in the manufacturer's product information.
Technical specifications
The product's stated electrical characteristics are documented by the manufacturer and include voltage and current specifications for SLK-4N-S10. The cable comes with a SIL 1.0 mm² conductor and Ni (nickel) plating on the connectors. Test leads SLK-4 have a mechanical design with rigid insulating sleeves on both connector ends and use MULTILAM connection technology in Ø 4 mm format.
Specifications
- Product name: Test leads SLK-4.
- Manufacturer: STAUBLI.
- Manufacturer's part number (MPN): 66.2012-20026.
- Type/order: SLK-4N-S10 (order number 66.2012-* corresponds to this type).
- Insulation: PVC or silicone (listed as options).
- Connectors: Stackable Ø 4 mm MULTILAM with rigid insulating sleeve at both ends.
- Electrical ratings (SLK-4N-S10): 1000 V (CAT II) / 19 A; 600 V (CAT III) / 19 A.
- Conductor: SIL 1.0 mm².
- Plating on connectors: Ni (nickel).
Documentation
The information is sourced from Stäubli's official product page for electrical connectors, where the product is listed and technical data for SLK-4N-S10 is provided.
Source: See manufacturer's product page
