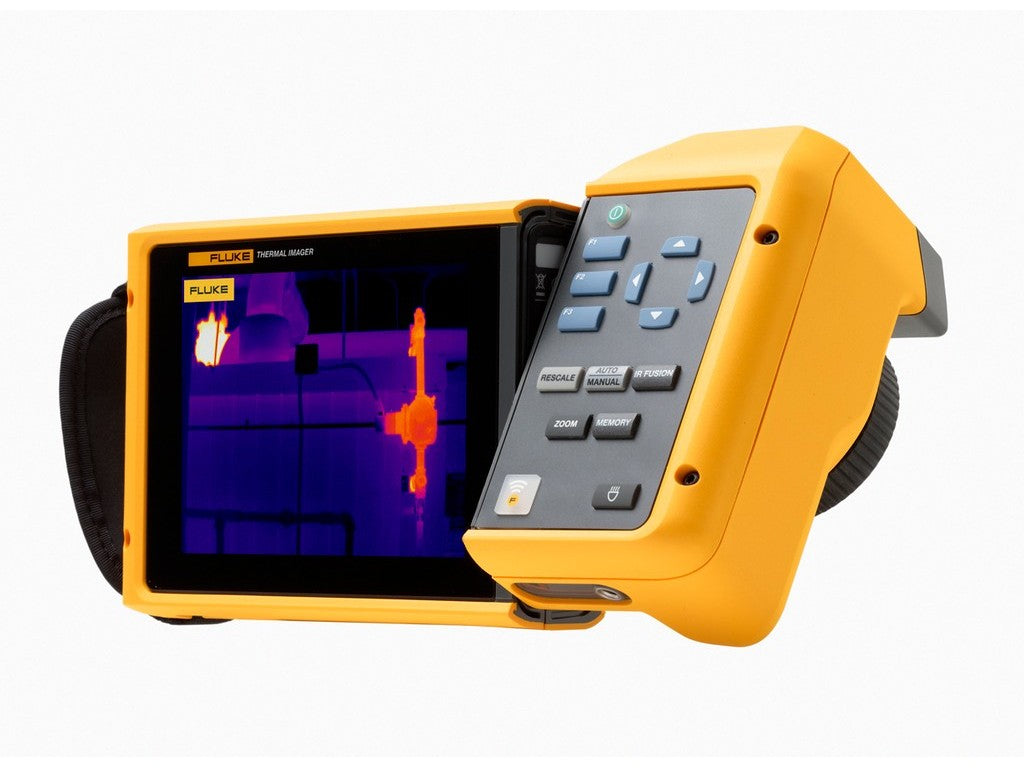

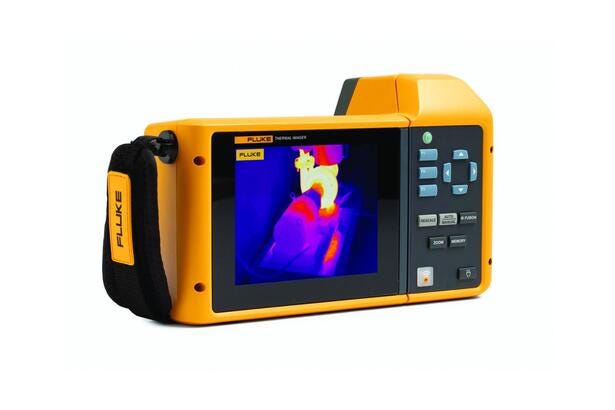

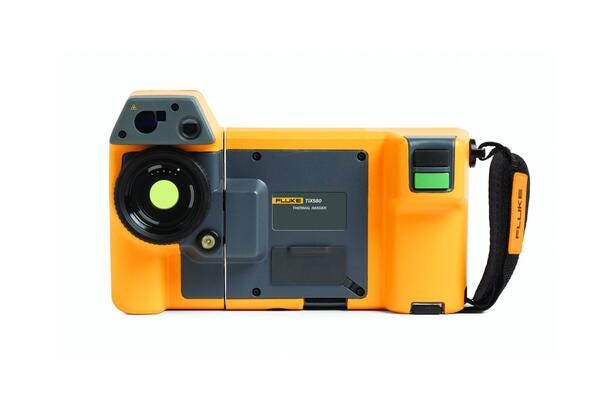

Fluke TiX580 Infrared Camera
The Fluke TiX580 is an infrared camera for thermography, meaning it measures and displays temperature differences in equipment and installations without contact. It is used to detect heat generation, faults, or deviations before they cause operational downtime or major problems.
This camera is the 9 Hz frame rate version under item number 4841945. It has an infrared resolution of 640 x 480 pixels and a 5.7-inch touchscreen with the same resolution, allowing images to be viewed and reviewed directly on the camera. With a thermal sensitivity of ≤ 0.05 °C at 30 °C, it can distinguish very small temperature differences, and with the standard lens, the spatial resolution is 0.93 mRad.
The TiX580 can also operate with SuperResolution, which collects data for a 1280 x 960 image. Additionally, it can record video in both standard and radiometric formats, preserving temperature data along with the image. This makes the camera suitable not only for taking snapshots but also for documenting and post-processing measurements.
In practice, it is a tool for professionals who need a clear thermal overview and a simple workflow. The camera comes with two replaceable lithium-ion smart batteries, power supply and charger, USB and HDMI cables, and a 4 GB micro SD card.
Typical Applications
- Troubleshooting electrical installations
- Checking for overheating in industrial equipment
- Thermal inspection and documentation

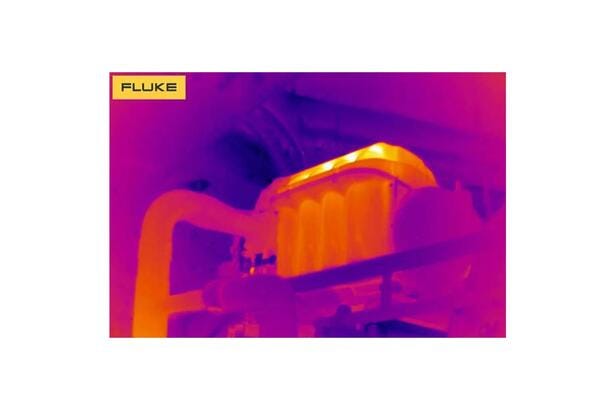

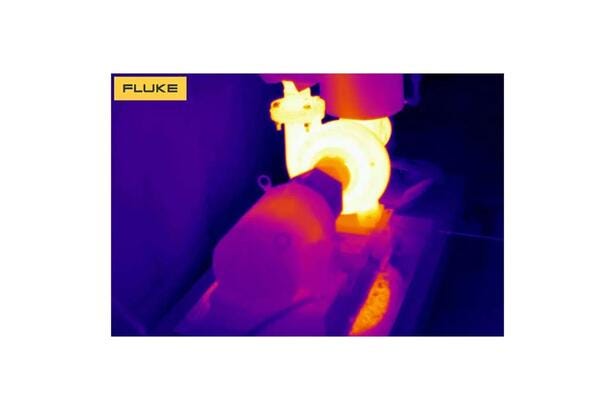

- Recording and reviewing radiometric images and video
Specifications
- Manufacturer: FLUKE
- MPN: 4841945
- Infrared resolution: 640 x 480 (307,200 pixels)
- Display: 5.7-inch touchscreen, 640 x 480
- Thermal sensitivity (NETD): ≤ 0.05 °C at 30 °C
- Spatial resolution with standard lens: 0.93 mRad
- Frame rate: 9 Hz
- SuperResolution: 1280 x 960
- Video recording: standard and radiometric
- Included items: two field-replaceable lithium ion smart batteries, AC power supply and charger, USB cable, HDMI cable, 4 GB micro SD card
- Datasheet: View datasheet from the manufacturer
Content generated with AI - we reserve the right for errors.
Contact HIN for further product information.
