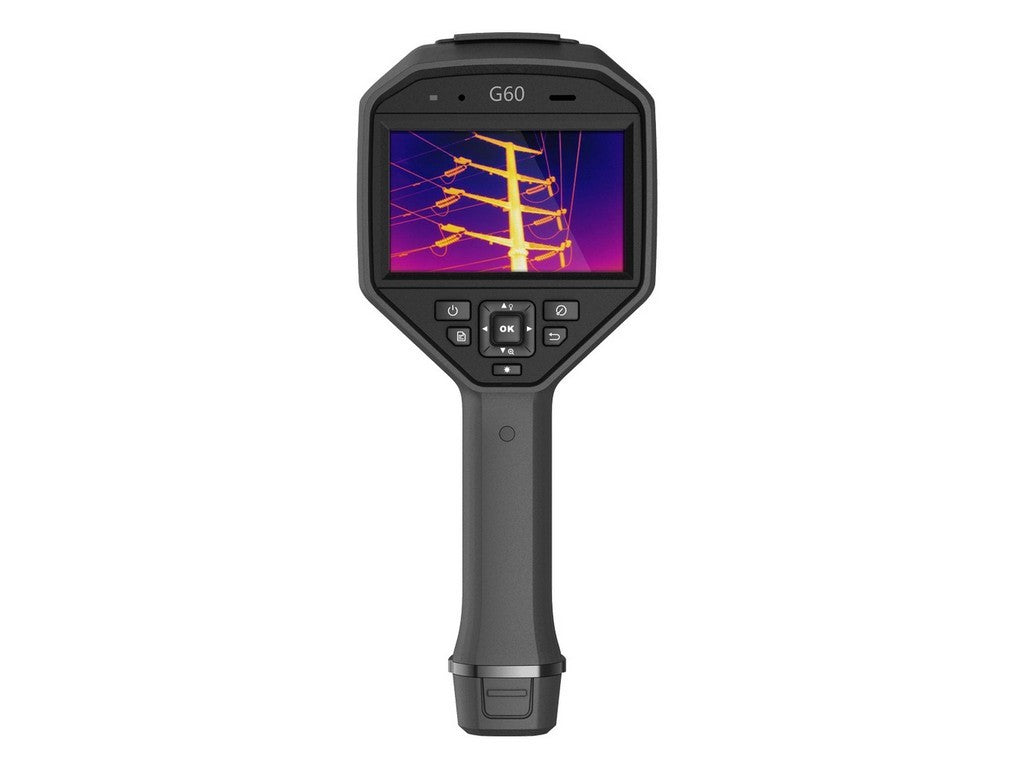

HIKMICRO G60 — handheld thermal camera
The HIKMICRO G60 is a handheld thermal camera designed for temperature measurement. The device is equipped with a 640 × 480 (307,200 pixels) thermal detector and detects object temperatures in the range of -20 °C to 650 °C with a specified accuracy of Max (±2°C/3.6°F, ±2%). The screen is a 4.3" touch LCD with a resolution of 800 × 480, and the camera also has an 8 MP visual camera.
What the product does
The HIKMICRO G60 is used for rapid identification and documentation of temperature signatures using thermal imaging. The camera delivers thermal images with NETD < 35 mK and a frame rate of 50 Hz, and supports image processing functions such as adaptive AGC, DDE, and 3D DNR, as well as multiple color palettes. It offers fusion between thermal and visual images, as well as picture-in-picture display.
Key features in practice
- Thermal detector: 640 × 480 (307,200 pixels) with SuperIR resolution 1280 × 960.
- Temperature range: -20 °C to 650 °C with accuracy specified as Max (±2°C/3.6°F, ±2%).
- Visual camera: 3264 × 2448 (8 MP) for documentation and image fusion.
- Connectivity: Wi‑Fi 802.11 b/g/n (2.4/5 GHz), Bluetooth 4.2, and USB Type-C.
- Recording: MP4 and radiometric video, with remote storage option on interchangeable micro SD card.
Technical documentation
See datasheet from the manufacturer
Typical applications
The manufacturer states that the G60 is primarily used in construction, plumbing/ventilation (HVAC), and the automotive industry for temperature measurement and thermal inspection. The applications follow directly from the manufacturer's product description.
Specifications
- IR resolution: 640 × 480 (307,200 pixels); SuperIR: 1280 × 960 (1,228,800 pixels)
- NETD: < 35 mK (@ 25 °C, F#=1.0)
- Frame rate: 50 Hz
- Detector pitch: 17 μm
- Spectral range: 7.5–14 μm
- Focal length: 25 mm; F-number: F1.0; FOV: 25° × 19°; IFOV: 0.68 mrad
- Min. focusing distance: 0.2 m; focus modes: Laser Assisted AF/Continuous AF/AF/Manual/Touch AF
- Temperature range: -20 °C to 650 °C; Accuracy: Max (±2°C/3.6°F, ±2%)
- Measurement tools: Center Spot, Hot Spot, Cold Spot; custom spot/line/rectangle/circle
- Visual camera: 3264 × 2448 (8 MP)
- Display: 4.3" LCD touch, 800 × 480
- Digital zoom: 1.x to 8.x continuous
- Storage: interchangeable 64 GB Micro SD card; image capacity approx. 60,000; video recording approx. 54 hours
- Video format: MP4 and radiometric video
- Communication: Wi‑Fi 802.11 b/g/n (2.4/5 GHz), Bluetooth 4.2, USB Type-C
- Laser: Class II, 635 nm, < 1 mW; distance meter: indoor 50 m, outdoor 10 m
- Battery: Interchangeable Li-ion; charging time approx. 4 hours; operating time approx. 4 hours
- Protection class: IP54 (IEC 60529)
- Dimensions: 285.2 × 120.6 × 125.8 mm; weight: approx. 1000 g
- Tripod mount: UNC ¼”-20
- Safety and EMC: IEC 61010-1; EMC: EN 301 489-1, EN 301 489-17, EN IEC 61000-6-2, EN IEC 61000-6-3
