Product Overview

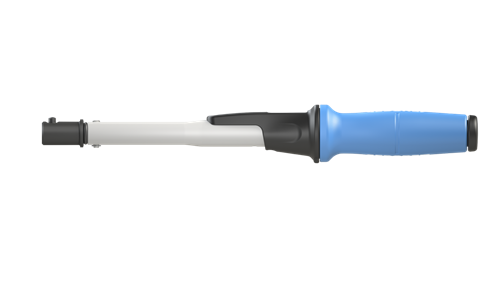

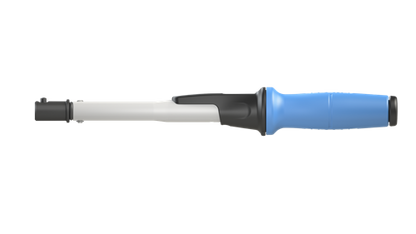

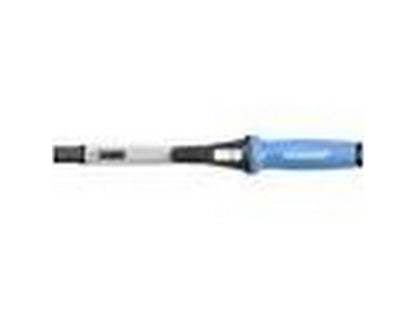

This torque wrench from GEDORE, the GEDORE TORCOFIX Z 16 TF-Z50 (item no. 3288307), is an adjustable, click-type torque wrench with a spigot end, designed for controlled tightening in the range of 10–50 Nm (7.5–37 lbf·ft). The instrument is classified according to DIN EN ISO 6789-2:2017 Type II Class A and comes with a traceable test certificate.
Function and Design

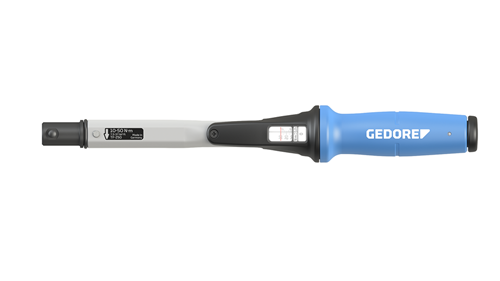

The GEDORE TORCOFIX Z 16 TF-Z50 features a robust, matte powder-coated steel tube construction with an ergonomic grip shaped to fit the natural hand position. The torque wrench operates with a precise spring/release mechanism that provides a clear tactile and audible signal when the set torque is reached. The tool allows for controlled clockwise and counter-clockwise tightening by repositioning the insert tool.
Typical Applications
- Assembly applications.
- Series production.
- Manufacturing (production).
- Maintenance and repair (Wartung und Instandhaltung).
Scale and Reading
The torque wrench has a dual scale (Nm / lbf·ft) with a Nonius for Nm, where the Nonius scale resolution is 0.25 Nm. The main scale is also used for setting lbf·ft. The scale is vertically positioned with a scale strip above the scale itself to minimize parallax error. An enlarged viewing window protects against wear and contamination.
Documentation
The product is delivered calibrated with a maximum permissible deviation of ±3% according to DIN EN ISO 6789-2:2017 and includes a traceable test certificate. For further product information, please see the manufacturer's page.
Source: Product information from GEDORE
Specifications
- Product Name: GEDORE TORCOFIX Z 16 TF-Z50 (Item No. 3288307).
- Torque: 10–50 Nm (7.5–37 lbf·ft).
- Classification: DIN EN ISO 6789-2:2017 Type II Class A.
- Calibration / Precision: Calibrated, maximum permissible deviation ±3%; incl. test certificate.
- Drive Size / Spigot: Ø 16 mm (drive size metric 16 mm).
- Design: Adjustable, click-type torque wrench with spigot end.
- Overall Length: 297 mm.
- Weight: 0.5 kg.
- Werkskalibrier-stichmaß (setting dimension): 32 mm (Ø 16 mm).
- Calibration Length: 234.5 mm.
- Nonius Resolution (Nm): 0.25 Nm.
- Material: Steel tube construction (matte powder-coated) with plastic components.
- Delivery: Incl. plastic storage box; delivered as 1 piece.
