Torque Wrench: GEDORE DREMOMETER D (8563-10 / 7691500)
This GEDORE torque wrench, model DREMOMETER D (8563-10 / 7691500), is a trigger-type torque tool with a 3/4" square drive designed for controlled torque application. Product identity, torque range, and listed features are based on the manufacturer's official product information.
Technical Specifications
- Torque range: 155–760 Nm (115–560 lbf·ft).

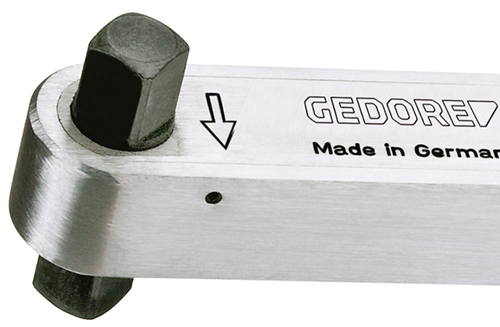

- Drive: 3/4" (20 mm) square with pin locking (DIN 3120 - B 20, ISO 1174).
- Classification: DIN EN ISO 6789‑2:2017 Type II Class A, incl. traceable test certificate.
- Calibration: Maximum permissible deviation ±3% (stated by manufacturer).
- Release mechanism: Automatic short-path release with tactile and audible indication.
- Scale: Dual scale with division 10 Nm / 10 lbf·ft.
- Material and physical data: Aluminum alloy housing, total length 812 mm, weight 3.74 kg.
Typical Applications
The product information indicates the following areas of application for the DREMOMETER D (8563-10 / 7691500):
- Assembly.
- Series production/assembly.
- Manufacturing.
- Maintenance and repair.
Functional Advantages (stated by manufacturer)
- Automatic short-path release reduces impact during torque transfer.
- One-piece aluminum housing for low weight and robustness.
- Arrangement with turning and drive axis in the same line for reduced error influence during two-hand operation.
- Design with a dimensionally stable adjustment knob and potential for high precision with repeated use.
Specifications
- Model: DREMOMETER D, 8563-10 / Code-No. 7691500.
- Torque range: 155–760 Nm (115–560 lbf·ft).
- Drive: 3/4" (20 mm) square with pin locking (DIN 3120 - B 20, ISO 1174).
- Classification and certificate: DIN EN ISO 6789‑2:2017 Type II Class A, incl. test certificate.
- Calibration tolerance: ±3%.
- Total length: 812 mm.
- Weight: 3.74 kg.
- Housing material: Aluminum alloy.
- Scale division: 10 Nm / 10 lbf·ft.
Source: Manufacturer's official product information (GEDORE). Source URL: https://www.gedore.com/de-at/produkte/drehmomentwerkzeuge/drehmomentschluessel-zubehoer/drehmomentschluessel%2C-ausloesend-fuer-steckschluesseleinsaetze/8563-d---8568-dl-drehmomentschluessel-dremometer-155-760-nm---115-560-lbfft/8563-10---7691500
Content generated with AI – we reserve the right for errors.
Contact HIN for further product information.
