Product Description

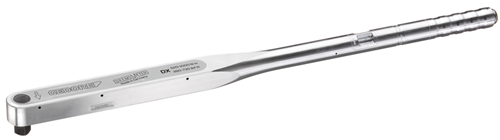

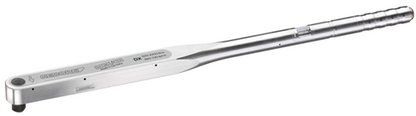

This torque wrench, Torque wrench DREMOMETER DX 3/4" from GEDORE, is designed for controlled tightening in the range of 520–1000 Nm (380–730 lbf·ft). The tool features a 3/4" square drive with pin-locking in accordance with DIN 3120 - B 20 and ISO 1174. The torque wrench comes with a traceable test certificate and is classified according to DIN EN ISO 6789-2:2017 Type II Class A.Function and Mechanics
- Automatic short-path release with tactile impulse and audible signal.
- Dual scale with division 10 Nm and 10 lbf·ft.
- Calibration tolerance: ±3% (stated as maximum permissible deviation).
- Aluminium alloy housing for a combination of low weight and robustness.
Typical Applications
Application areas are specified by the manufacturer and include:- Assembly (for assembly and controlled tightening).
- Series assembly.
- Production.
- Maintenance and repair.
Operating and Safety Characteristics
The torque wrench is constructed with a square drive and surrounding shaft on the same axis to ensure high user safety. The release mechanism is designed for a short release path for precise repetition of the set torque, and the tool's design reduces wear during continuous use. Source: GEDORE product information (manufacturer's product page).
