Product Overview

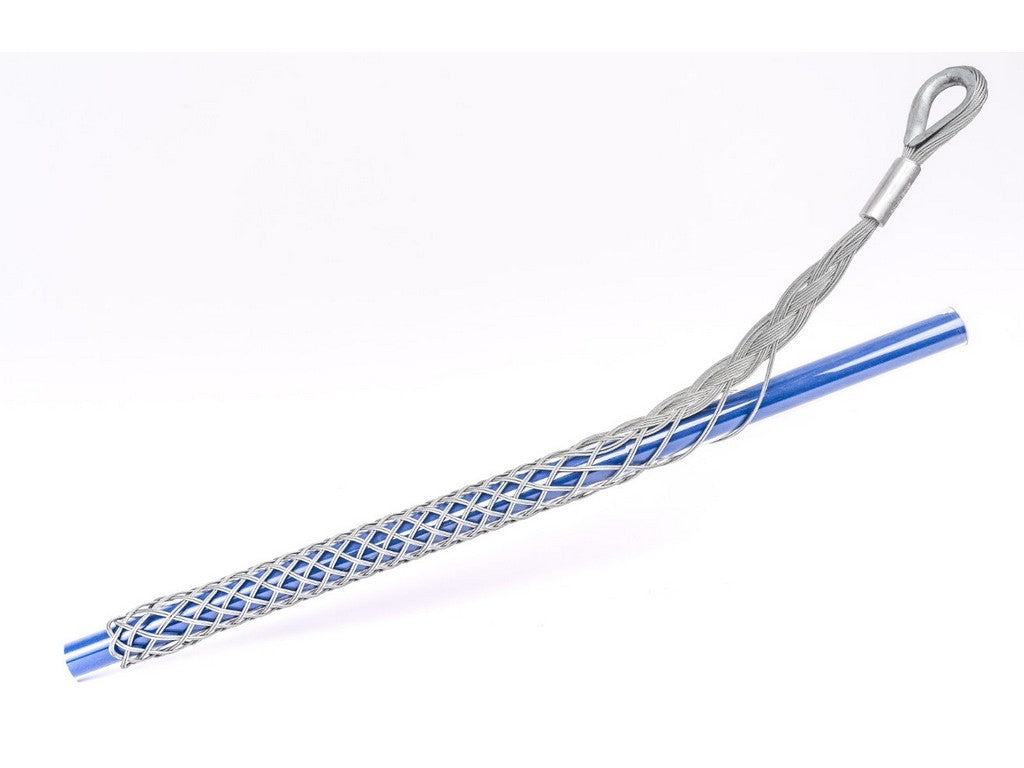

The 109502 cable grip from KATIMEX is a double-braided, back-spliced mounting grip made of galvanized steel with a side loop and thimble. The product is specified for cables with a diameter from 10 mm to 15 mm and states both breaking load and maximum tensile load.Construction and Function
- Double-braided (twice braided) steel grip with back-spliced ends to avoid sharp terminations.
- Side loop with thimble for mechanical connection.
- Galvanized steel (galvanization specified in manufacturer data).
Typical Applications
The manufacturer states that the product is suitable for mounting tasks in industries such as industrial plants, wind turbine installations, elevators, and cranes. The description on the manufacturer's product page directly cites these areas of application as examples where the cable mounting grip is used to distribute force impacts over the entire length of the braid, thereby reducing point loads on the cable.Safety and Load
The description highlights that the load is evenly distributed over the entire length of the grip via pressing sleeves, and that the ends are back-spliced rather than soldered or pressed to avoid sharp edges that could harm people or cables.Specifications
- Manufacturer: KATIMEX
- Item number: 109502
- Material: steel, galvanized
- Cable Ø (min–max): 10 mm – 15 mm
- Breaking load: 18.6 kN
- Max tensile strength: 6.2 kN
- Total length: 670 mm
- EAN: 4044489095023
- Packaging dimensions: Length 64 cm, Width 3 cm, Height 1 cm
- Weight: 0.2 kg
Content generated using AI – we reserve the right for errors.
Contact HIN for further information about the product.
