Product Overview

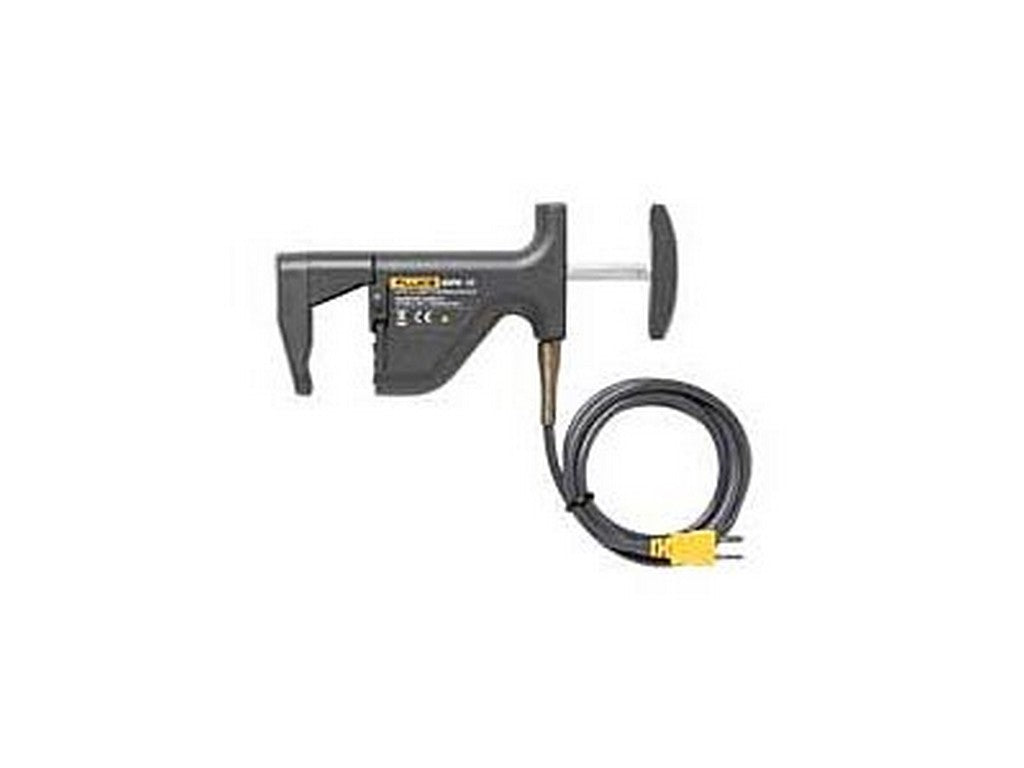

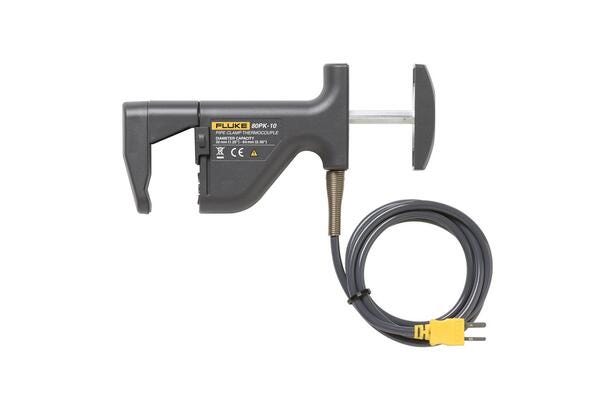

The Fluke 80PK-10 (Part#: 3439199) is a Type-K pipe clamp thermoprobe from FLUKE designed for temperature measurement on pipes with diameters from 32 mm to 64 mm (1.25 in to 2.5 in). The probe uses a durable ribbon sensor and features a nylon housing and a 1 m PVC-insulated cable termination with miniature Type K connectors. The product's primary function is to provide contact-based surface measurements of pipe temperature within the specified measuring range.
Key Features
- Type: Type-K thermocouple pipe clamp
- Measuring Range: −29 °C to 149 °C (−20 °F to 300 °F)
- Repeatability: ±0.56 °C (±1 °F)
- Construction: nylon probe body with durable ribbon sensor
- Cable: 1 m (39 in) PVC-insulated cable with miniature Type K connector
Documentation and instructions are provided by the manufacturer. See manufacturer's datasheet
Typical Applications
The Fluke 80PK-10 is used for direct measurement of pipe temperature on pipes with diameters 32–64 mm (1.25–2.5 in). The manufacturer's instructions describe how to position the probe by centering the pipe in the "V"-notch of the jaw and ensuring good contact between the sensor and the pipe to obtain accurate readings.
Application Notes
- Connect the probe to a temperature meter that accepts miniature Type K thermocouples with cold junction compensation.
- Center the pipe in the "V"-notch and adjust pressure to maximize thermal contact and achieve stable readings.
- The manufacturer's instructions specify precautions for electrical use: do not use at voltages above 24 V AC or 60 V DC.
Specifications
- Product Name: Fluke 80PK-10 (Part#: 3439199)
- Measuring Range: −29 °C to 149 °C (−20 °F to 300 °F)
- Overall Conformity (accuracy): ±1.9 °C (±3.4 °F) (surface measurement, including probe contact and shunting uncertainty)
- Repeatability: ±0.56 °C (±1 °F)
- Pipe Diameter: 32 mm to 64 mm (1.25 in to 2.5 in)
- Sensor Material: Chromel-Alumel (Type K)
- Output @ 25 °C: 1.00 mV (reference temperature 0 °C)
- Seebeck Coefficient @25 °C: 40.50 μV/°C
- Time Constant (response time): 0.5 seconds
- Cable: 1 m PVC-insulated, K Type AWG #24 stranded
- Connector: Mini-thermocouple connector (7.925 mm pin spacing)
- Maximum Measurement Temperature (probe): 149 °C (300 °F); cable maximum temperature 105 °C (220 °F)
- Maximum Voltage Rating: 24 V AC rms or 60 V DC
- Probe Housing Material: Nylon
- Media Limitations: Must be compatible with chromel, alumel, and nylon
- Warranty: 1 year (according to manufacturer's instructions)
