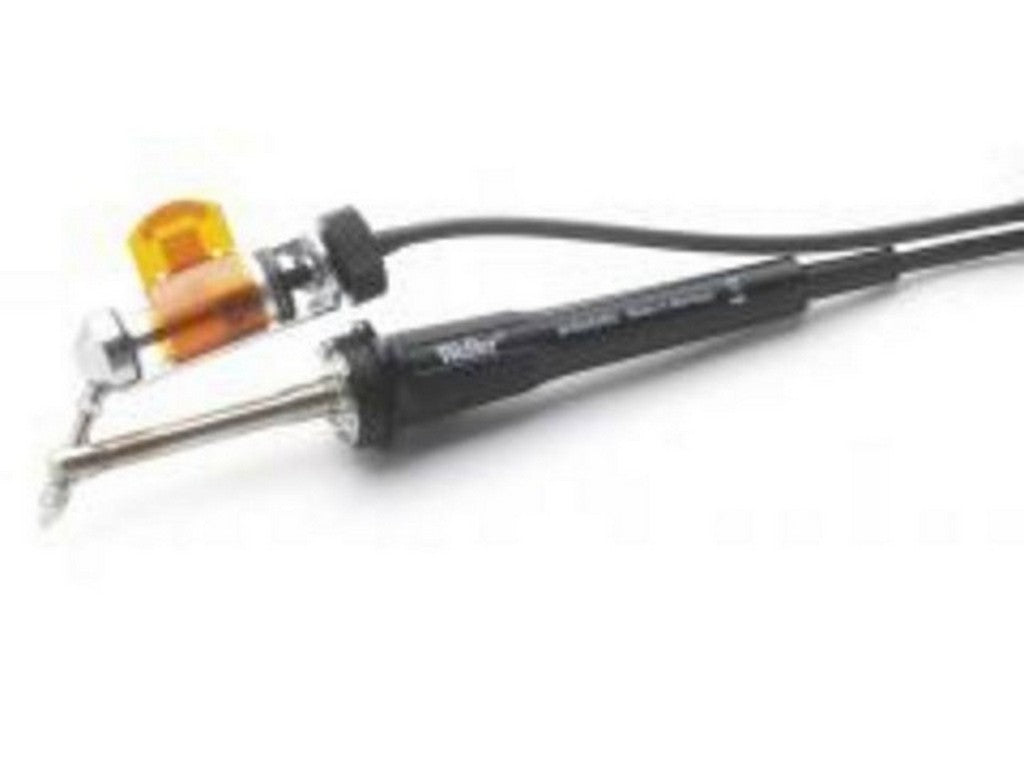

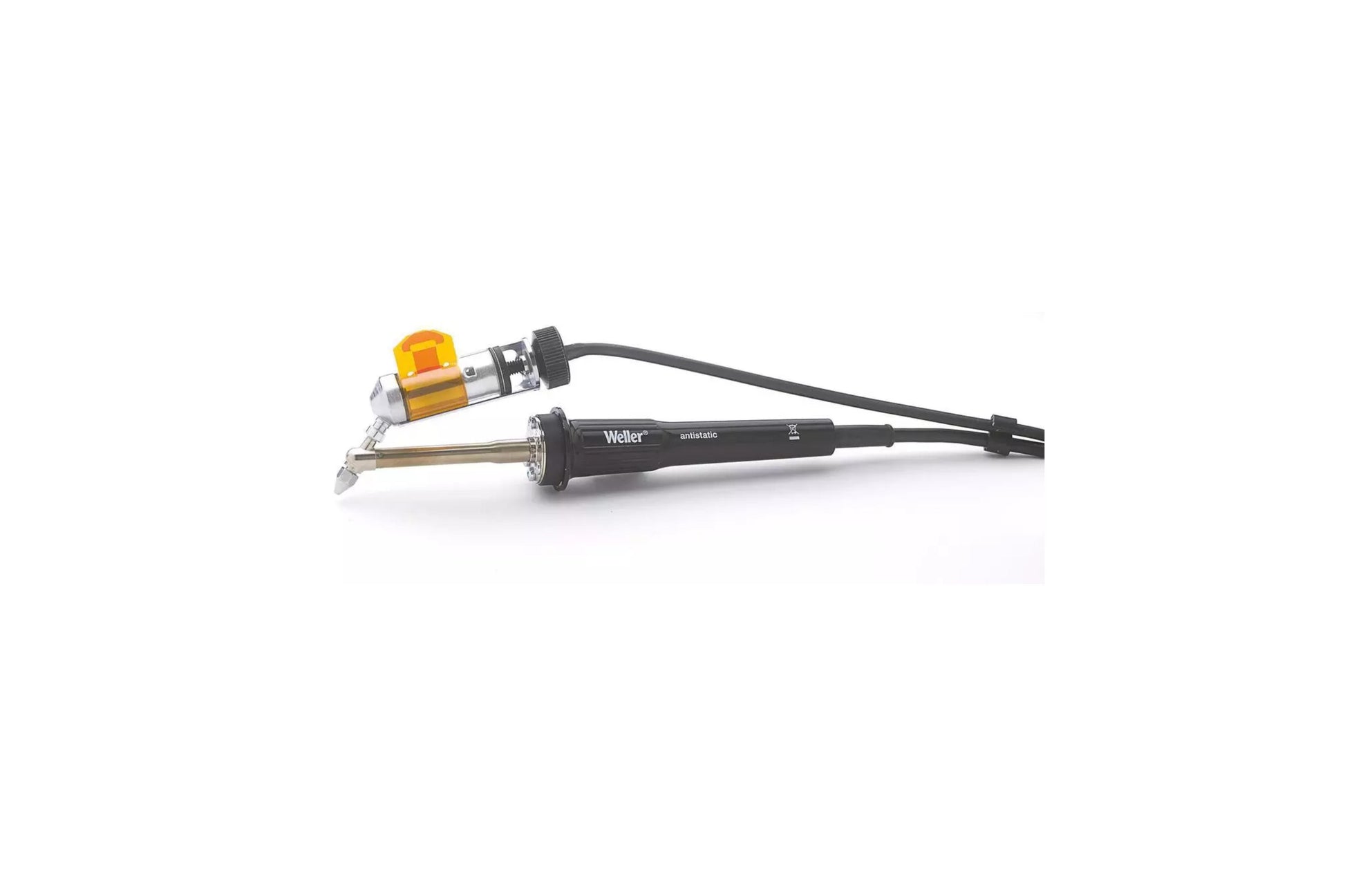

Weller DSX120 – Desoldering Iron
The Weller DSX120 (Item No. T0051319899N) is a desoldering iron designed for horizontal applications. The description specifies the unit's core function as a desoldering tool and details compatibility with specific tip and supply series.
Functional Features
- Designed for horizontal applications.
- ESD-safe design.
- Supports set-back function.
- Equipped with eccentric fixture.
Typical Applications
The Weller DSX120 is used for desoldering in horizontal working positions where a desoldering iron is required. The horizontal design characteristic is directly apparent from the product description.
Compatibility and Accessories
- Compatible with WT XDS tip types.
- Can be used with WR2, WR3M, and WR3ME power supply units.
- Safety rest (WSR209) must be ordered separately.
Documentation
Further product information and operating instructions can be found in the manufacturer's official documentation.
See datasheet from the manufacturer
Specifications
- Product Name: Weller DSX120 (Item No. T0051319899N)
- Power: 120 W
- Voltage: 24 V
- ESD: ESD-safe (indicated)
- Heating Time: approx. 35 seconds (50–350 °C)
- Operating Temperature: 50–450 °C
- Tip Compatibility: WT XDS tip types
- Power Supply Compatibility: WR2 / WR3M / WR3ME
- Fixture: eccentric fixture
- Safety Rest: WSR209 must be ordered separately
Source
